Quick Details
-
Network:
-
wired
-
Product name:
-
Indoor PIR Motion Detector
-
Working voltage:
-
DC 9~24V
-
Working current:
-
≤25mA
-
Sensing element:
-
dual-element pyroelectric infrared sensor
-
Detection capability:
-
wall mount 8m (25 degree)/15 degree angle
-
Alarm output:
-
NC/NO
-
Installation method:
-
ceiling
-
Installation height:
-
2~2.4m
-
Anti-white light level:
-
6500Lux
-
Product size:
-
86mm*86mm*45mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
INNOPRO
-
Model Number:
-
ED651A#-001
-
Network:
-
wired
-
Product name:
-
Indoor PIR Motion Detector
-
Working voltage:
-
DC 9~24V
-
Working current:
-
≤25mA
-
Sensing element:
-
dual-element pyroelectric infrared sensor
-
Detection capability:
-
wall mount 8m (25 degree)/15 degree angle
-
Alarm output:
-
NC/NO
-
Installation method:
-
ceiling
-
Installation height:
-
2~2.4m
-
Anti-white light level:
-
6500Lux
-
Product size:
-
86mm*86mm*45mm

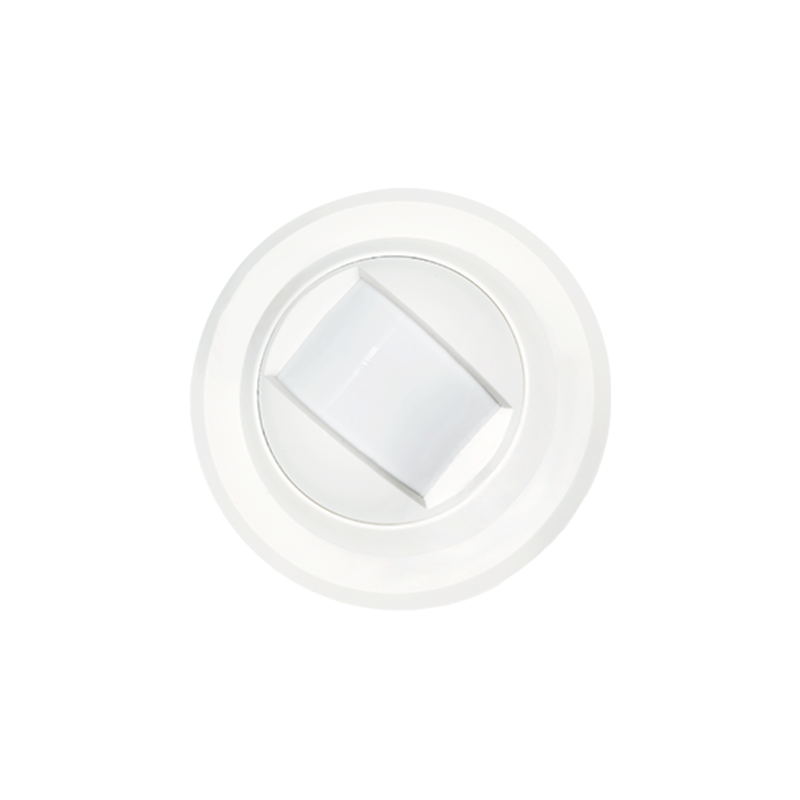

DC Power Ceiling and Wall Hanging Human Body Movement Indoor PIR Motion Detector
A passive infrared sensor (PIR sensor) is an electronic sensor that measures infrared (IR) light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications.
Features:
1.86 type wire junction box, multi-angle adjustable
2.Automatic temperature compensation, super anti-false alarm ability
3.Optional alarm indicator switch to enhance product concealment
4.Alarm output NC/NO optional, adapt to different control hosts
|
Product Name |
PIR Motion Detector |
|
Model No |
ED651A |
|
Working voltage |
DC 9~24V |
|
Working current |
≤25mA |
|
Sensing element |
dual-element pyroelectric infrared sensor |
|
Detection capability |
4m from ceiling, 8m (25°C)/angle 15° for wall hanging |
|
Alarm output |
NC/NO |
|
Tamper output |
NC |
|
LED indicator |
ON/OFF (optional) |
|
Installation method |
ceiling / wall hanging |
|
Installation height |
2.4~3.6m/wall-mounted 2~2.4m |
|
Anti-white light level |
6500Lux |
|
Temperature Compensation |
Automatic Compensation |
|
Working temperature |
-10 ℃~ 55 ℃ |
|
Working humidity |
≤95% (no condensation) |
|
Product size |
Φ86mm*38.6mm |
