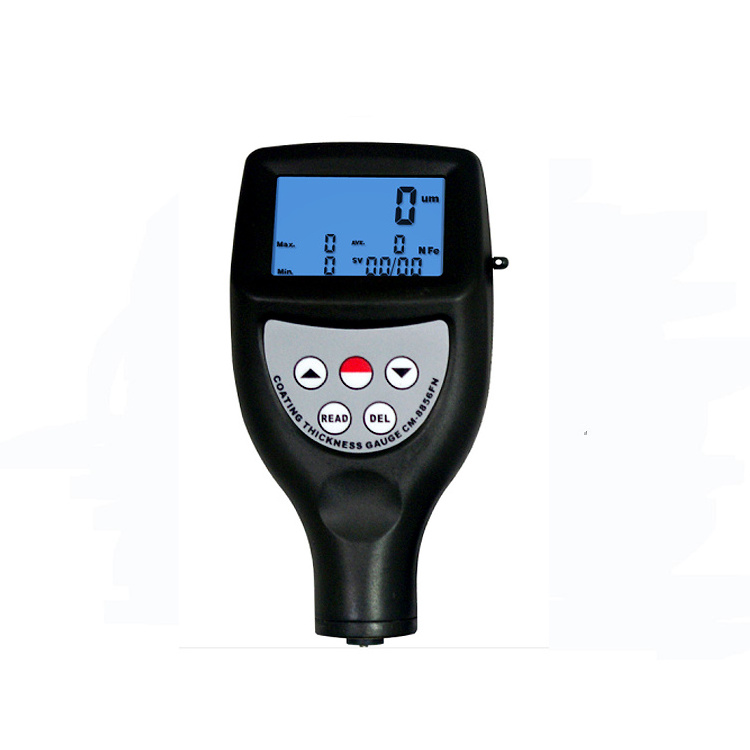

Digital Coating Paint Thickness Tester Meter Gauge

FOB Reference Price: Get Latest Price

≥1 Sets

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: ZL-1201

Name:: Thickness Tester

Origin:: Guangdong,China

Applicable industry:: petroleum,shipbuilding,power station industry

Measuring range:: 0-1250um

Working temperature:: -10℃~+50℃

Measurement accuracy:: ±1-3%n or ±2.5um

Relative humidity:: ≤90%

Dimension:: 125 * 67 * 31 mm

Weight:: 340g

Quick Details

Warranty:: 2 years, 24 months

Place of Origin:: Guangdong, China

Brand Name:: ZL

Model Number:: ZL-1201

Name:: Thickness Tester

Origin:: Guangdong,China

Applicable industry:: petroleum,shipbuilding,power station industry

Measuring range:: 0-1250um

Working temperature:: -10℃~+50℃

Measurement accuracy:: ±1-3%n or ±2.5um

Relative humidity:: ≤90%

Dimension:: 125 * 67 * 31 mm

Weight:: 340g

Digital Coating Paint Thickness Tester Meter Gauge

Product Description

Product features

* 99 sets of measurement data can be stored;By measuring the mean value, maximum value and minimum value to achieve the statistical function of the instrument.

* T hickness gauge for both ferrous base and non-ferrous base coatings.

* S ingle and continuous measurement methods are optional.

* C onversion of metric/imperial units.

* W ith manual shutdown, automatic shutdown and undervoltage prompt and other functions.

* A utomatic memory of calibration values and automatic identification of the material of the tested matrix.

* T here is a buzzer prompt sound during operation, and the buzzer does not sound during continuous measurement.

* R s-232 data line output, connected to PC.

* Bluetooth data output options are provided.

* T he integrated instrument is suitable for single-hand operation, with a "large probe" and a large contact surface for better stability, resulting in accurate and repeatable results.

M easurement methods

A pplication scope

Application example

Type F, Magnetic induction method (with iron base)

Measure the thickness of the non-magnetic overburden on the magnetic conductive material.

Thickness measurement of electroplating, paint layer, enamel layer, aluminum tile, copper tile, babbitt alloy tile, phosphating layer, paper, also can be used to measure thickness of hull paint and subsea structural attachment.

NF type, eddy current method (with aluminum base)

Measure the thickness of the insulation covering on the non-magnetic material.

Aluminum, copper, zinc, non-magnetic stainless steel and other materials on the surface of paint, plastic, rubber coating, can also be measured aluminum or aluminum alloy material anodized layer thickness.

Technical specifications

Measurement method	F : magnetic induction &NF : eddy current
Measuring range	0~1250 m/0~50mil (standard range)
Resolution	(including 0.1 m / 1 (including m
Accuracy	± 1~3%n or ± 2.5 m
Minimum surface F	convex 1.5mm/ concave 25mm
Minimum surface N	convex 3mm/ concave 50mm
Minimum measured area	6mm
The thinnest base	0.3mm
Temperature	0~40 ° C
H umidity	10~90%RH
Power supply	2 # 7 batteries
Size	126 x65x35mm
Weight	81g (excluding battery)
Automatic shutdown	low voltage prompt
