Quick Details
-
Dimension(L*W*H):
-
1800 x 104 x 100cm
-
Weight:
-
220 KG
-
After-sales Service Provided:
-
available
-
Product name:
-
wood splitter hydraulic
-
Application:
-
Cutting Forestry Wood Log Waste
-
Color:
-
Customer Requirements
-
Power:
-
Gasoline Engine
-
Usage:
-
Splitter Firewood
-
Raw material:
-
Tree Bark
-
Keywords:
-
Log Horizontal Splitter
-
Engine:
-
4 Stroke LIFAN 196CC
Quick Details
-
Use:
-
to split fixed length log into firewood
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GREAT-BOOM
-
Dimension(L*W*H):
-
1800 x 104 x 100cm
-
Weight:
-
220 KG
-
After-sales Service Provided:
-
available
-
Product name:
-
wood splitter hydraulic
-
Application:
-
Cutting Forestry Wood Log Waste
-
Color:
-
Customer Requirements
-
Power:
-
Gasoline Engine
-
Usage:
-
Splitter Firewood
-
Raw material:
-
Tree Bark
-
Keywords:
-
Log Horizontal Splitter
-
Engine:
-
4 Stroke LIFAN 196CC

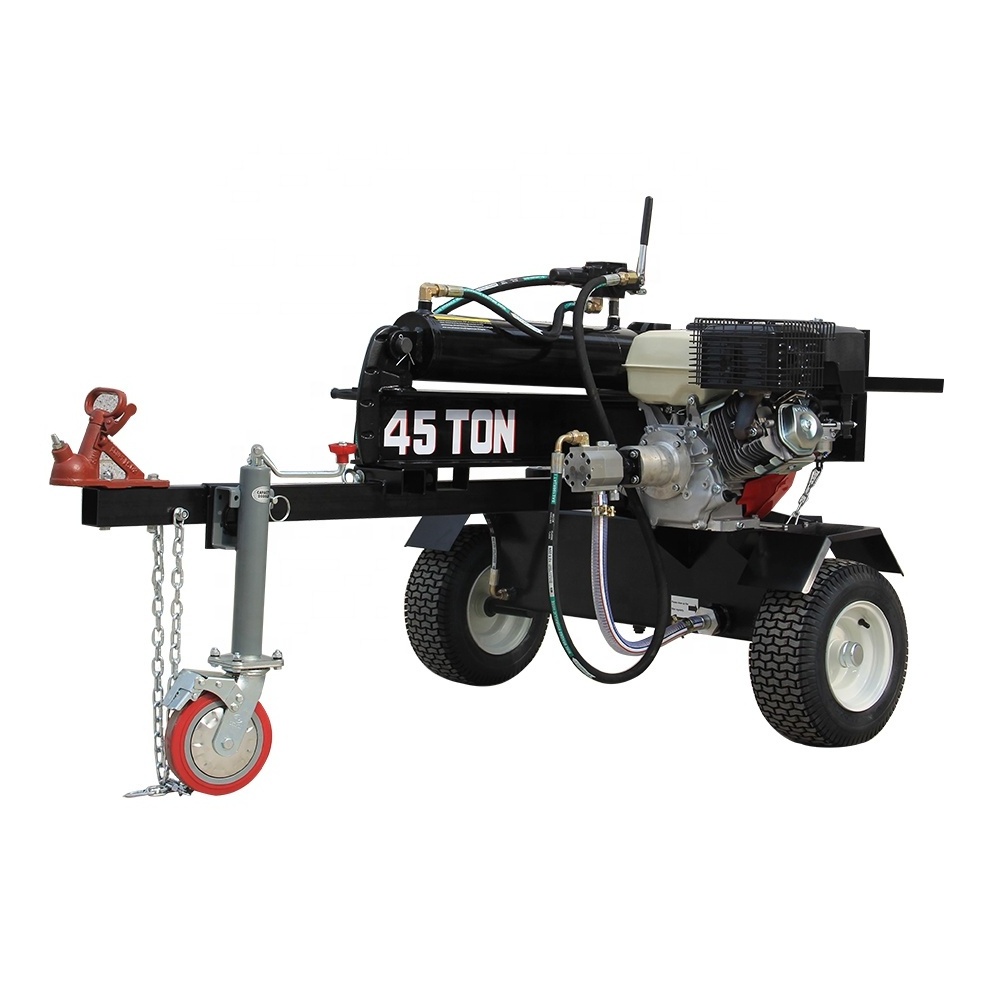

Product Description
Brand: GREAT-BOOM
Model: LS45JTESBD
Engine: 15 horsepower, 4 stroke, OHV, air cooled
Engine Brand: LIFAN, KOHLER, B&S or other brand
Start: manual (recoil) start & electric (key) start
Battery: 12 volt, 14 Ah Lead-acid battery
Hydraulic Cylinder Size: 140mm diameter x 540mmstroke
Oil Capacity: 20 liters
Gear Pump: 2 stage 16GPM flow
Valve: automatic return control valve with safety release function
Log Table: with
Maximum Splitting Force: 45Ton
Wedge Height: 8 inch (200mm)
Split and Return Cycle Time: 18 seconds
Maximum Log Length: 24 inch (610mm)
Working Position: horizontal and vertical
Wheels and Tires: 16 inch pneumatic x 6.5 inch (wider wheel), tubeless
Jockey Wheel: 8 inch (200mm) x 2000 LB capacity jockey, industrial grade brake wheel
Mudguard: with
Coupler:50mm cast steel with safety chains
Maximum Recommended Towing Speed: 40 km/h
Package Diameter: 187cmx51cmx65cm
Package Weight: 345kgs
Warranty: 6 months
If Wooden Pallet: 30PCS / 30PKGS / 20GP; 84PCS / 84PKGS / 40HQ
If Iron Frame Package: 40PCS / 40PKGS / 20GP; 88PCS / 88PKGS / 40HQ
Model: LS45JTESBD
Engine: 15 horsepower, 4 stroke, OHV, air cooled
Engine Brand: LIFAN, KOHLER, B&S or other brand
Start: manual (recoil) start & electric (key) start
Battery: 12 volt, 14 Ah Lead-acid battery
Hydraulic Cylinder Size: 140mm diameter x 540mmstroke
Oil Capacity: 20 liters
Gear Pump: 2 stage 16GPM flow
Valve: automatic return control valve with safety release function
Log Table: with
Maximum Splitting Force: 45Ton
Wedge Height: 8 inch (200mm)
Split and Return Cycle Time: 18 seconds
Maximum Log Length: 24 inch (610mm)
Working Position: horizontal and vertical
Wheels and Tires: 16 inch pneumatic x 6.5 inch (wider wheel), tubeless
Jockey Wheel: 8 inch (200mm) x 2000 LB capacity jockey, industrial grade brake wheel
Mudguard: with
Coupler:50mm cast steel with safety chains
Maximum Recommended Towing Speed: 40 km/h
Package Diameter: 187cmx51cmx65cm
Package Weight: 345kgs
Warranty: 6 months
If Wooden Pallet: 30PCS / 30PKGS / 20GP; 84PCS / 84PKGS / 40HQ
If Iron Frame Package: 40PCS / 40PKGS / 20GP; 88PCS / 88PKGS / 40HQ
Packing & Delivery
wooden case or iron frame package
Company Profie
Thank you for your value time to read our company introduction about our products We, LaiZhou Great-Boom Garden Tools Co.,Limited,
were founded in 2004, we manufacture log saw and log splitter now. About the log saw, we make both electrical log saw and gasoline
log saw. The electrical log saw includes 230V/50Hz and 400V/50Hz power, they are 700mm diameter blade. The gasoline log saw is
with 700mm blade, the gasoline engine is from 9.0HP to 13.0HP, now the 13.0HP/700mm log saw is sold best.
About the log splitter, our main products are both gasoline log splitter and diesel log splitter, and the tonnage is from 12Ton,
18Ton, 24Ton, 30Ton, 40Ton to 50Ton. Our machine can split from 610mm to 1200mm length log. Their working capacity is from 16inch
to 22inch diameter log. We are the first one manufacturer to use telescopic cylinder in China, our 1050mm type has applied for
design patent.
All models have obtained CE, EMC certification.
were founded in 2004, we manufacture log saw and log splitter now. About the log saw, we make both electrical log saw and gasoline
log saw. The electrical log saw includes 230V/50Hz and 400V/50Hz power, they are 700mm diameter blade. The gasoline log saw is
with 700mm blade, the gasoline engine is from 9.0HP to 13.0HP, now the 13.0HP/700mm log saw is sold best.
About the log splitter, our main products are both gasoline log splitter and diesel log splitter, and the tonnage is from 12Ton,
18Ton, 24Ton, 30Ton, 40Ton to 50Ton. Our machine can split from 610mm to 1200mm length log. Their working capacity is from 16inch
to 22inch diameter log. We are the first one manufacturer to use telescopic cylinder in China, our 1050mm type has applied for
design patent.
All models have obtained CE, EMC certification.
China CE 610mm 1050mm 120mm commercial manual start petrol engine firewood processor 2 stage pump log wood splitter hydraulic
petrol vertical used kinetic gasoline valve electric log splitter
|
Pressure
|
Capacity
|
Wheel
|
Operation
|
Oil pump
|
|
45ton
|
618mm
|
400mm
|
Horizontal & vertical
|
2-stage
|
