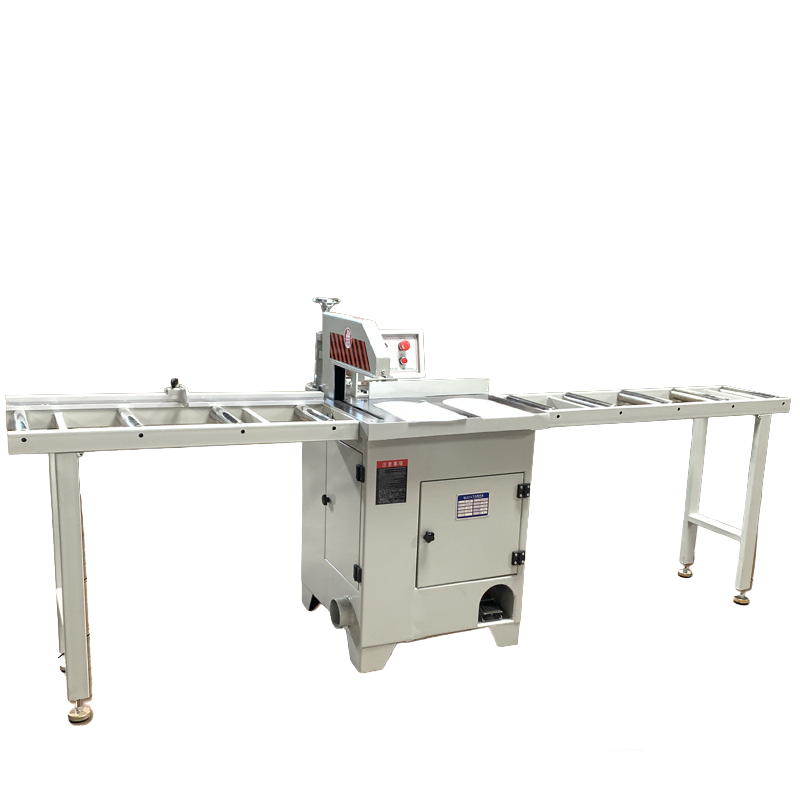

High Performance Pneumatic Cut-off Saw Wood Mini Cutting Off Saw Wood Cut Off Saw Machine

High Performance Pneumatic Cut-off Saw Wood Mini Cutting Off Saw Wood Cut Off Saw Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2583

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 2900*930*1100mm

Application:: Manufacturing Plant, Woodworking

Weight (KG):: 300 KG

Power (kW):: 5.5kw

Product Name:: Pneumatic cut-off Saw

Maximum sawing width 1:: 150mm

Maximum sawing width 2:: 30mm

Spindle speed:: 2840r/min

Discharge rack size:: 1000*340mm

Motor Power:: 5.5kw

Dimensions:: 2900*930*1100mm

weight:: 300kg

Feeding rack size:: 1200*340mm

Logo:: Customized

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: OEM

Voltage:: 380V

Dimension(L*W*H):: 2900*930*1100mm

Application:: Manufacturing Plant, Woodworking

Weight (KG):: 300 KG

Power (kW):: 5.5kw

Product Name:: Pneumatic cut-off Saw

Maximum sawing width 1:: 150mm

Maximum sawing width 2:: 30mm

Spindle speed:: 2840r/min

Discharge rack size:: 1000*340mm

Motor Power:: 5.5kw

Dimensions:: 2900*930*1100mm

weight:: 300kg

Feeding rack size:: 1200*340mm

Logo:: Customized

Product Description

We have private customization (size, function, etc.) welcome to consult

Machine structure diagram

1.Feeding bracket

2.Control panel

3.Feeding baffle

4.Cast iron countertops

5.Case cover

6.Positioning plate

7.Discharge bracket

Parts Details

Features of MJ274 Pneumatic Cutting Saw

1. This machine is mainly used for rapid cutting of various plates, round logs and square materials.

2. The cutting saw blade is designed with a built-in air pressure type, and the work is compressed by air pressure.
3. It has the characteristics of high cutting efficiency, good safety performance and easy operation.
4. This machine is equipped with feeding and discharging rolling conveying table, and a liftable positioning block, which is safe and convenient for feeding and discharging.

Specification

Name	Pneumatic cut-off saw machine
Model Number	ZE-MJ-274
Maximum sawing width 1	150mm
Maximum sawing width 2	30mm
Spindle speed	2840r/min
Discharge rack size	1000*340mm
Motor Power	5.5kw
Dimensions	29009301100mm
weight	300kgs
Feeding rack size	1200*340mm
China standard voltage is 380v, if you need to change it, add $45

Sample Room

Packing & Delivery

When the machine is transported, it is packed with pearl cotton by default. If you need to nail the plywood box, the cost will be an additional $45.
