Quick Details
-
Output Speed:
-
3.3~1450 r/min
-
Warranty:
-
1years, 1 Year
-
Weight (KG):
-
50 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AOKMAN DRIVE
-
Ratio:
-
1~3
-
Color:
-
Customer Request
-
Housing Material:
-
Cast Iron
-
Mounting Position:
-
Foot Mounted or Flange Mounted
-
Input Form:
-
Single/Double Keyed Input Shaft
-
Output Form:
-
Single/Double Keyed Output Shaft
-
Certificate:
-
ISO9001
-
Lubrication:
-
Grease
-
Shaft Position:
-
Right Angle, Cross
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
11N.m~288N.m
-
Input Speed:
-
10~1450 r/min
-
Output Speed:
-
3.3~1450 r/min
-
Warranty:
-
1years, 1 Year
-
Weight (KG):
-
50 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AOKMAN DRIVE
-
Ratio:
-
1~3
-
Color:
-
Customer Request
-
Housing Material:
-
Cast Iron
-
Mounting Position:
-
Foot Mounted or Flange Mounted
-
Input Form:
-
Single/Double Keyed Input Shaft
-
Output Form:
-
Single/Double Keyed Output Shaft
-
Certificate:
-
ISO9001
-
Lubrication:
-
Grease
-
Shaft Position:
-
Right Angle, Cross

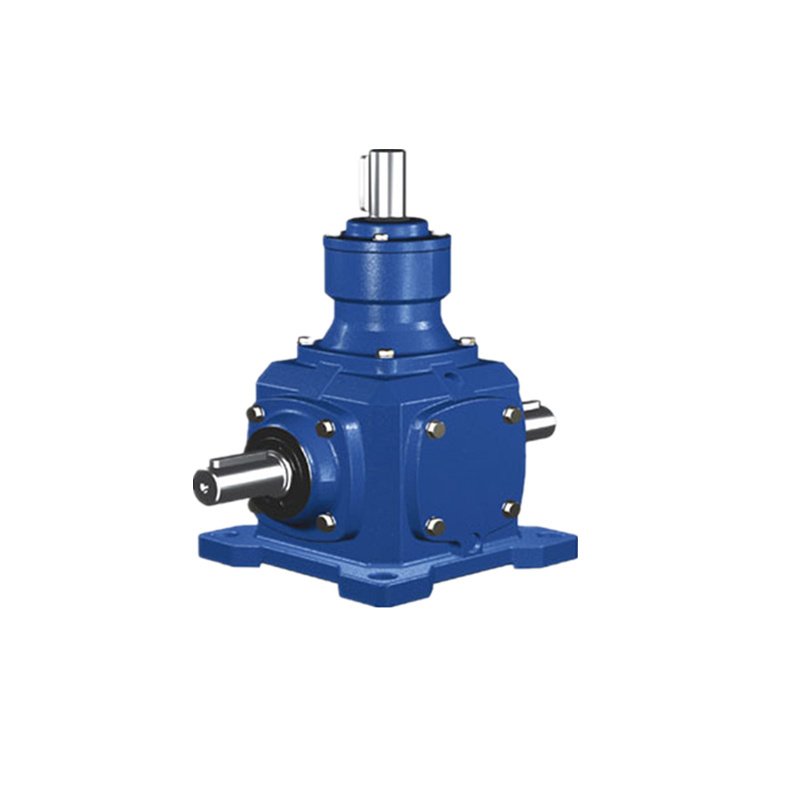

AOKMAN T Series 90 Degree 4 Way bevel helical gear reducer for Beverage Factory
AOKMAN® T series spiral bevel gear units, some aliases are right angle steering gearboxes, cross steering gearboxes.
Components:
1. Housing: Gray Cast Iron
2. Gear Set: Spiral Bevel Gear Pair
3. Input Configurations:
Single Keyed Input Shaft
Double Keyed Input Shafts
4. Output Configurations:
Single Keyed Output Shaft
Double Keyed Output Shafts
Features:
1. Sturdy cast iron gear box, hardened spiral bevel gears meshed in pairs, and strong bearings all contributing to reliable and optimized performance
2. A wide range of frame sizes, can be configured with different shaft configurations and gear ratio
3. Low noise, light vibration and large load capacity
4. Multiple mounting positions
5. Spiral bevel gears can be bidirectional rotation, smooth operation at low or high speed
Models:
T2~T25
|
Models
|
Input Power
|
Ratio
|
Max. Torque
|
Weight(kg)
|
Output Shaft Dia.(k6)
|
|
T2
|
0.014KW~1.79KW
|
1~2
|
11
|
2
|
Φ15
|
|
T4
|
0.026KW~4.94KW
|
1~2
|
31
|
10
|
Φ19
|
|
T6
|
0.037KW~14.9KW
|
1~3
|
94
|
21
|
Φ25
|
|
T7
|
0.042KW~22KW
|
1~3
|
139
|
32
|
Φ32
|
|
T8
|
0.064KW~45.6KW
|
1~3
|
199
|
49
|
Φ40
|
|
T10
|
0.11KW~65.3KW
|
1~3
|
288
|
78
|
Φ45
|
|
T12
|
0.188KW~96KW
|
1~3
|
607
|
124
|
Φ50
|
|
T16
|
0.40KW~163KW
|
1~3
|
1073
|
188
|
Φ60
|
|
T20
|
0.69KW~234KW
|
1~3
|
1943
|
297
|
Φ72
|
|
T25
|
1.4KW~335KW
|
1~3
|
3677
|
488
|
Φ85
|
Ratio: 1:1, 1.5:1, 2:1, 2.5:1, 3:1
1. More than 40+ years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services
