Quick Details
-
Voltage:
-
380;220;415
-
Dimension(L*W*H):
-
1500*1500*1500
-
Application:
-
wood processing factories, wooden packaging factories, furniture factories, Manufacturing factories, glulam processing factory, Finger board production and processing plant
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
12.5kw
-
Marketing Type:
-
Hot Product
-
Product name:
-

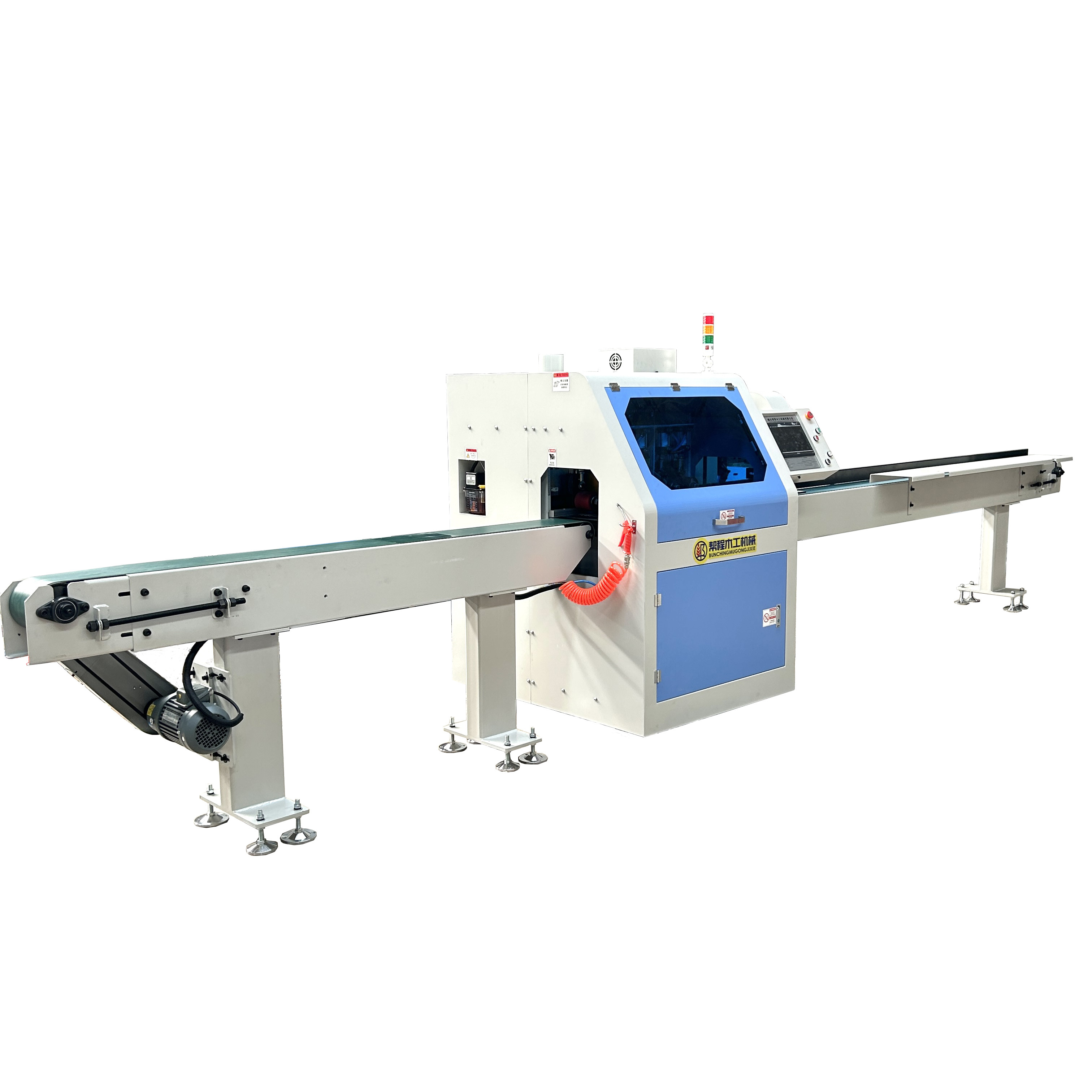

Automatic Optimizing Cross Cut Saw
-
Feeding Table Length:
-
6000mm(optional)
-
Cutting Width:
-
max120mm/300mm/400mm(customizable)
-
Cutting height:
-
max45mm/70mm(customizable)
-
Feeding speed:
-
0-100m/min
-
Cutting Motor Power:
-
5.5kw/7.5kw(optional)
-
Working mode:
-
Automatic feeding, automatic cutting
-
Saw Blade:
-
450mm/500mm/600mm(optional)
-
Saw blade speed:
-
3500r/min
-
Servo motor and PLC brand:
-
Omron
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Bunching
-
Usage:
-
Wood Cutting
-
Voltage:
-
380;220;415
-
Dimension(L*W*H):
-
1500*1500*1500
-
Application:
-
wood processing factories, wooden packaging factories, furniture factories, Manufacturing factories, glulam processing factory, Finger board production and processing plant
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
12.5kw
-
Marketing Type:
-
Hot Product
-
Product name:
-
Automatic Optimizing Cross Cut Saw
-
Feeding Table Length:
-
6000mm(optional)
-
Cutting Width:
-
max120mm/300mm/400mm(customizable)
-
Cutting height:
-
max45mm/70mm(customizable)
-
Feeding speed:
-
0-100m/min
-
Cutting Motor Power:
-
5.5kw/7.5kw(optional)
-
Working mode:
-
Automatic feeding, automatic cutting
-
Saw Blade:
-
450mm/500mm/600mm(optional)
-
Saw blade speed:
-
3500r/min
-
Servo motor and PLC brand:
-
Omron
Product Overview
Products Description
Device host body
Main machine press roller and carrier roller
Internal backend of the host
Wood length detection station
PRODUCT SPECIFICATIONS
|
Modle
|
BC-200
|
BCC-450
|
|
|
|||
|
Total power
|
12.5kw
|
1.3kw
|
0.75kw
|
1.3kw
|
|||
|
Saw blade motor
|
5.5kw/7.5KW
|
|
|
|
|||
|
Sawing servo motor
|
2kw(Omron)
|
|
|
|
|||
|
Feeding servo motor
|
3kw(Omron)
|
|
|
|
|||
|
Sensor brand
|
Omron
|
|
|
|
|||
|
Color code sensor brand
|
Sick
|
|
|
|
|||
|
Saw blade type
|
φ450/φ500/φ600(Optional)
|
450*3.6*3.0*100T
|
550*4.8*4.6*120T
|
550*4.8*4.6*120T
|
|||
|
sawing size
|
45height*120width /70height*300width(mm)（customizable）
|
|
|
|
|||
|
Marks
|
FLourescent mark
|
±0.3mm
|
±1mm
|
±0.3mm
|
|||
|
Kick feet number
|
4 pcs or customized
|
|
|
|
|||
|
Height adjustment method of pressing roller
|
Electric adjustment
|
Rack and pinion
|
Timing belt
|
Rack and pinion
|
|||
|
Main engine size(mm)
|
1500*1500*1500(mm)
|
1000*900*1650
|
1100*1000*1700
|
1100*1000*1700
|
|||
|
Length of feeding platform
|
12m(Optional)
|
|
|
|
|||
|
Length of discharge platform
|
5m(Optional)
|
|
|
|
|||
|
Saw blade speed
|
3500r/min
|
|
|
|
|||
|
Sawing speed
|
2 times/s(Adjustable)
|
|
|
|
|||
|
Feeding speed
|
100m/min
|
|
|
|
|||
|
Reverse speed
|
0-70m/min
|
|
|
|
|||
|
Air pressure
|
0.6Mpa
|
|
|
|
|||
|
Voltage
|
380v 50hz 3phase(Variable voltage)
|
|
|
|
|||
APPLICATION EXAMPLES
SIMILAR PRODUCTS
BC-450
The material pushing method adopts synchronous belt transmission, which is suitable for sawing processing with less strict precision requirements, and is economical and affordable.
BCX-4000
It can not only cut horizontally, but also cut 45 degree triangles, trapezoids, parallelograms, and right angled trapezoids,making it versatile for one machine.
BCC-450
CNC cross cutting saw, push mode adopts gear and rack cooperation, with high accuracy and durability. Suitable for solid wood preparation in wooden packaging factories, furniture factories, and wood processing factories.
