Quick Details
-
Throat Depth (mm):
-
380 mm
-
Width of Working Table (mm):
-
150 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RAYMAX/BEILIN
-
Weight (KG):
-
8600
-
Motor Power (kw):
-
7.5 kw
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Thailand
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
Synchronized
-
Length of Working Table (mm):
-
3200 mm
-
Slider Stroke (mm):
-
320 mm
-
Throat Depth (mm):
-
380 mm
-
Width of Working Table (mm):
-
150 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RAYMAX/BEILIN
-
Weight (KG):
-
8600
-
Motor Power (kw):
-
7.5 kw
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Thailand
-
Certification:
-
CE
Products Description

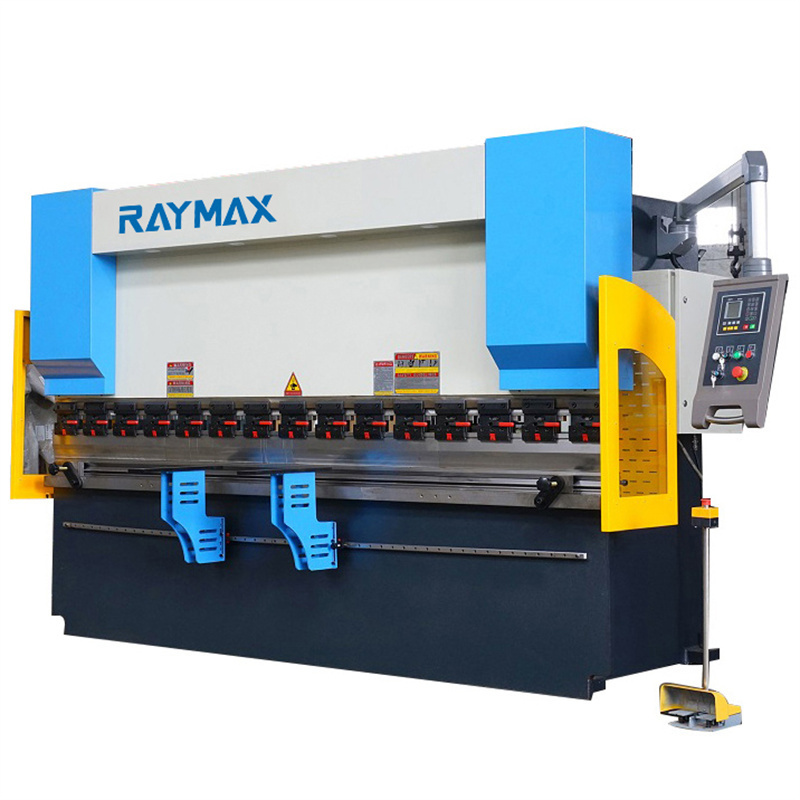

Hydraulic press brake 600 tons for plate bending iron plate press machine price
1:The whole machine is in sheet plate welded structure ,with internal stress eliminated by vibration aging technology,high strength and good rigidity of machine.
2:Double hydraulic oil cylinder is applied for upper transmission ,provided with mechanical limit stopper and synchronous torsion bar, typical of stable and reliable operation, as well as high precision.
3:Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block ,and fitted with digital device ,easy and quick in use.
4:Upper die is fitted with deflection compensation device.
|
Working Source
|
Hydraulic
|
|
Bending Material
|
Carbon steel, stainless steel, aluminum, mild steel
|
|
Controller
|
NC Controller, E21, E220P, DA41, CT12
|
|
Press Brake Usage
|
Bending plate into different AngleCurling Plate into Hinge
Flattening plate |
|
Voltage
|
220V/380V according to customer request
|
|
Tooling
|
A set of standard tooling
|
Speification
Configuration
Quick clamp
1.The mold can be installed and removed to the left and right when pull the red handle
2.The mold can be installed up and down when press the button
3.scale more accuracy
Electric cabinet
Siemens or Schneider world famous brand
Electrical system Our press brake adopts Schneider electrical components. The high quality electric parts can make the machine performing well even the electricity is not stable and customers can easily get the replacement
Torque synchronous control system
Adopt steel torsion bar synchronization system with high accuracy . At the 2 ends of the ram, there are 2 synchronizing devices so that the ram movement is always parallel to the worktable ,this structure highlights the effect of balancing motion during operation
BOSCH-REXROTH hydraulic system
Use BOSCH-REXROTH integrated hydraulic control system that limits the number of pipe connections,making it more reliable and easy for maintenance
Front Plate Support
Movable front material support on linear guider can move left and right by hand very easy.
Ball Screw & Linear Guide
Adopting HIWIN ball screw and linear guide to improve the machine backguage accuracy.
Germany Siemens Motor
Using Siemens motor guarantee the machine service life and improve the machine working stability.
South Korea Foot Switch
Lengthened the service life and improved operational sensitivity
E21 control system
Positioning control of backgauge.
One-way and two-way positioning function,effectively eliminating the screw gap.
Retreat escape function,automatic search reference function.
One-button backup and restore function.
Power protection function.
Application
The folded sheet metal bending machine has high productivity and high working accuracy, using different shapes of up and down mould, can be bent into various shapes artifacts, slider stroke at a time can be to a bending forming of sheet metal, after a lot of bending can be achieved relatively complex shape workpiece, when equipped with the corresponding equipment, can also make a punch.
Feature
1.Standard two axis control (X.Y)
2. Mechanical torque synchronization(torsion bar)
3.The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, ensure machine high strength and good rigidity
4.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of slider, and installed with digital display device, easy and quick for operator
5.Quick clamping is equipped,it is convenient for operator to install and get offer punch
