Quick Details
-
Brand Name:
-
Hengwang
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
1100mm*900mm*1850mm
-
Product name:
-
used clothings-australia baling machine/scrap carton
-
Model:
-
HW10-6040
-
Force:
-
10ton
-
Bale size:
-
600*400mm
-
Bale wieght:
-
30-50kgs
-
Efficiency:
-
4-6 bale /hour
-
Machine weight:
-
1000kgs
-
Size:
-
900*650*2100mm
-
Country of origine:
-
China
-
After Warranty Service:
-
Video technical support, Spare parts
-
Local Service Location:
-
Viet Nam
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
CE,ISO,BV,etc.
Quick Details
-
Voltage:
-
380V/50HZ
-
Power:
-
2.2kw, 2.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
1100mm*900mm*1850mm
-
Product name:
-
used clothings-australia baling machine/scrap carton
-
Model:
-
HW10-6040
-
Force:
-
10ton
-
Bale size:
-
600*400mm
-
Bale wieght:
-
30-50kgs
-
Efficiency:
-
4-6 bale /hour
-
Machine weight:
-
1000kgs
-
Size:
-
900*650*2100mm
-
Country of origine:
-
China
-
After Warranty Service:
-
Video technical support, Spare parts
-
Local Service Location:
-
Viet Nam
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
CE,ISO,BV,etc.
Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of Hydraulic baler machine. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. Main clients are around Southeast Asia,Mid East and South America. Welcome to visit our factory and sent inquiry to us.
Product Application

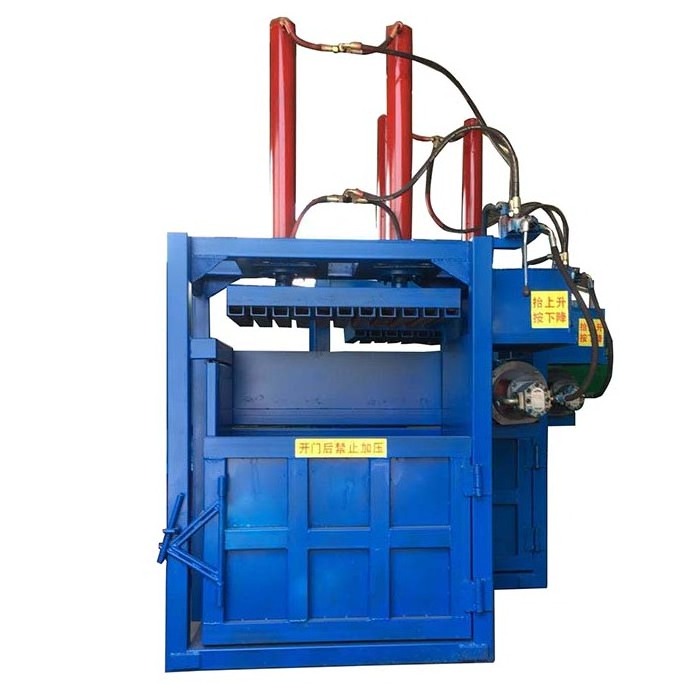

used clothings-australia baling machine/scrap carton old paper baler machine
(1)This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.
(2)Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6
pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.
(3)Also, we can produce the machine according to the requirement from customer.
a.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy
b.Electric button control, it can reaches manual adjusting and semi automatic control
c. Independent feeding opening with automatic pulling out installation, to reduce labor force.
d.It can be made according to the demands of customers, and the bale can be binded into "---" and
"#" shape.
used clothings-australia baling machine/scrap carton old paper baler machine Parameters:
|
Model
|
Force
|
Bale size
|
Bale weight
|
Efficiency
|
Power
(kw) |
Weight
|
size
(mm) |
|
HW10-6040
|
10ton
|
600*400mm
|
30-50kg
|
4-6 bale/hour
|
2.2
|
1000
|
900*650*2100
|
|
HW20-8060
|
20ton
|
800*600mm
|
80-100kg
|
4-6 bale/hour
|
4
|
1100
|
1000*750*2750
|
|
HW30-8060
|
30ton
|
800*600mm
|
100-130kg
|
4-6 bale/hour
|
5.5
|
1300
|
1000*750*2750
|
|
HW30-11070
|
30ton
|
1100*700mm
|
130-150kg
|
4-6 bale/hour
|
5.5
|
1700
|
1350*850*3200
|
|
HW40-11070
|
40ton
|
1100*700mm
|
180-200kg
|
4-6 bale/hour
|
7.5
|
1800
|
1350*850*3200
|
|
HW40-12080
|
40ton
|
1200*780mm
|
200-240kg
|
4-6 bale/hour
|
7.5
|
2050
|
1600*1050*3300
|
|
HW50-12080
|
50ton
|
1200*800mm
|
320-350kg
|
4-6 bale/hour
|
7.5or11
|
2600
|
1600*1050*3300
|
|
HW60-12080
|
60ton
|
1200*800mm
|
380-420kg
|
4-6 bale/hour
|
11or15
|
2900
|
1600*1050*330
|
|
HW80-12080
|
80ton
|
1200*800mm
|
450-480kg
|
4-6 bale/hour
|
15
|
3300
|
1600*1050*330
|
|
HW100-12080
|
100ton
|
1200*800mm
|
500-550kg
|
4-6 bale/hour
|
15
|
3700
|
1600*1050*3300
|
|
HW120-12080
|
120ton
|
1500*1000mm
|
650-700kg
|
4-6 bale/hour
|
15or18.5
|
4300
|
2100*1550*3300
|
used clothings-australia baling machine/scrap carton old paper baler machine Pictures:
|
Packaging
|
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
