- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Customer Request
-
Floor:
-
2.5 mm checker steel plate
-
Tire:
-
185R14C
-
Lights:
-
ADR LED lights (DOT & Emark certification) &
-
OEM:
-
available
-
Brake:
-
Double Axle Electric Brakes
-
Springs:
-
5 leaf rocker roller springs
-
draw bar:
-
100x50x3mm
-
chassis:
-
70x50x2.5mm
-
Loading capacity:
-
2000kg
Quick Details
-
Max Payload:
-
2000kg
-
Brand Name:
-
Gino
-
Place of Origin:
-
Jiangxi, China
-
Color:
-
Customer Request
-
Floor:
-
2.5 mm checker steel plate
-
Tire:
-
185R14C
-
Lights:
-
ADR LED lights (DOT & Emark certification) &
-
OEM:
-
available
-
Brake:
-
Double Axle Electric Brakes
-
Springs:
-
5 leaf rocker roller springs
-
draw bar:
-
100x50x3mm
-
chassis:
-
70x50x2.5mm
-
Loading capacity:
-
2000kg

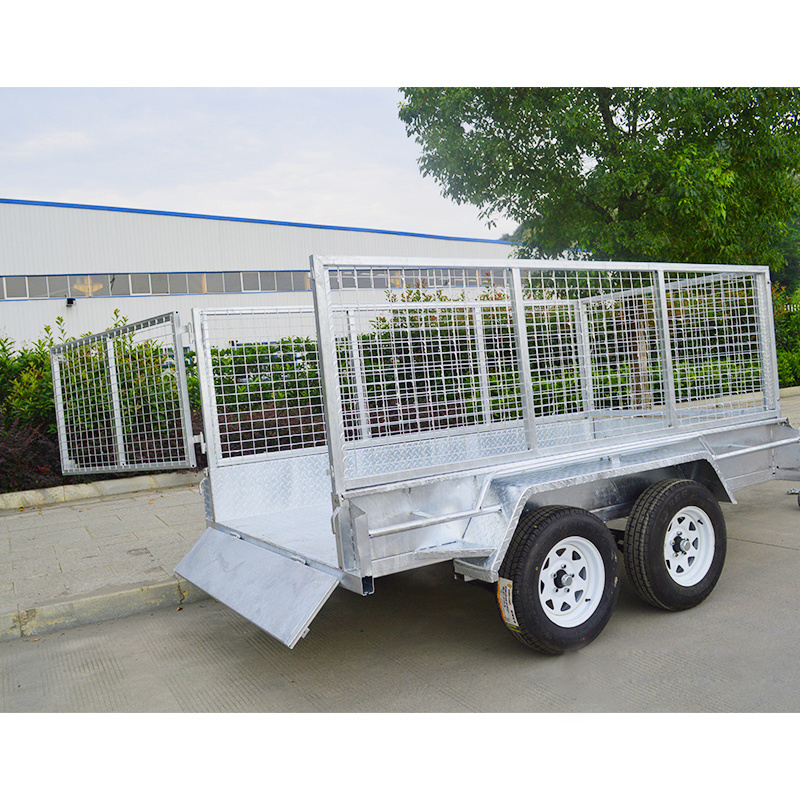

| Tandem Trailers | ||
| Finishing: | Hot dipped galvanized | |
| Load capacity: | 2000KG | |
|
Frame Steel |
Draw Bar: | 100x50x3mm |
| Chassis: | 70x50x2.5mm | |
| Cross bar: | 50x50x2mm | |
| Sheet steel:(bolted) | 2.5mm checker steel plate floor&1.2mm side wall & doors | |
| Sheet steel:(fully weld) | 2.5mm checker steel plate floor &2.5mm side wall&doors | |
| Tyre: | 185R14C(8ply,850KG) with white powder coated rims | |
| Axle: | 45x45mm cable disc brake on one axle & solid square axle without brake | |
| Springs: | 5 leaf heavy duty rocker roller springs | |
| Coupling: | Australian style & 12mm ADR safety chain | |
| Mudguard: | 2.5mm chequer steel plate mudguard | |
| Mesh cage height: | 600mm;900mm | |
| Mesh cage : | 30x30x1.5mm tube | |
| Jockey wheel: | 2000LBS(Double Wheel) & Side swing | |
| Lights&Reflector | LED Taillights with e-mark&DOT certification | |
| Spare tyre: | Non (All trailers do not include the spare wheels) | |
| Tie down: | 20mm round tube tie down all around the trailer | |
|
As buyer style coupling and safety chain with D-lock: |
Yes | |
| Tandem Box Trailer(Bolted)without cage | |||||
| Model No. | Trailer box size | Loading | Tare weight | 20FT | 40FT |
| GN-B85T | 2440X1525X300mm | 2000KG | 495KG | 20pcs | 45pcs |
| GN-B95T | 2745x1525x300mm | 2000KG | 535KG | 18pcs | 42pcs |
| GN-B105T | 3050x1525x300mm | 2000KG | 585KG | 16pcs | 35pcs |
| GN-B106T | 3050x1830x300mm | 2000KG | 610KG | 15pcs | 32pcs |
| GN-B126T | 3660x1830x300mm | 2000KG | 650KG | 12pcs | 26pcs |
| Tandem Box Trailer(Fully welded)without cage | |||||
| Model No. | Trailer box size | Loading | Tare weight | 20FT | 40FT |
| GN-B85TW | 2440X1525X300mm | 2000KG | 545KG | 12pcs | 35pcs |
| GN-B95TW | 2745x1525x300mm | 2000KG | 595KG | 12pcs | 30pcs |
| GN-B105TW | 3050x1525x300mm | 2000KG | 635KG | 10pcs | 30pcs |
| GN-B106TW | 3050x1800x300mm | 2000KG | 675KG | 10pcs | 25pcs |
| GN-B126TW | 3660x1800x300mm | 2000KG | 710KG | 6pcs | 18pcs |
1. Why Choose The GINO Trailers
A. GINO trailers is a professional manufactures trading company and have excellent trade team.
B. GINO trailers had rich experience in the design and production process. Our engineers are experienced and pay attention to every details.
C. GINO trailers have OEM and ODM according to customer ’ s request
D. GINO trailers offer high quality products and reasonable price. Include trailers body and parts, such as axle, tyre, jockey wheel and rims etc.
E. GINO trailers have strictly quality control in the process of production. Steel meets to Q235 national standard. Axle is solid and stronger than a hollow axle.
F. Each trailers chassis include cross bar. Each cross bar interval is no more than 300mm according to trailers length. Such as 6*4 trailers with 3pcs cross bar, 12*6 trailers with 7pcs cross bar.
2. What is your terms of payment?
T/T 30% as deposit and 70% against BL copy or LC
3. What is the MOQ?
MOQ is 20ft container. The extra sample fee will be afforded by you if order one piece.
4. What is your terms of delivery and delivery time?
FOB Jiujiang, and generally it will take 20-25 days after receiving your advance payment, the specific delivery time depends on the terms and quantity of your order.
Jiangxi Gino Vehicle Industrial Co. Ltd is located in Xiushui County, Jiujiang city. Our company has been adhering to the concept of “ existence from honest, stability from reciprocal, development from win-win cooperation ” since its inception in 2005. Our company has equipped with advanced manufacturing and computerized test equipment, with strict procedures of testing and manufacturing.
Gino is a professional manufacture of trailers and trailer parts. Include single axle box bolted trailers, single axle weld trailers, tandem bolted trailers, tandem welded trailers, hydraulic tipping (drop down side), hydraulic tipping welded trailers, camper trailers. Different size can be made(6*4 7*4 7*5 8*5 9*5 10*5 10*6 12*5 12*6)
We also can design and produce products as customers request. OEM is available.
Gino trailers have perfect engineer team which have made trailers over 6 years.
We sincerely welcome customers from domestic and abroad to visit us for establishing a long term and cooperative relationship based on mutual benefit.
