Specifications
Non-asbesto gasket sheet 250 degree
Oil resisting Non asbesto compressed sheet
100% non asbesto
Wide range of temp
long life
Typical Application
1.Suitable for water, high temperature steam, compressed air, joint part of tubing, valve, heat exchanger.
2.Can be used in oil conditions.
Product Description
Made of non-asbesto Fibre, rubber and heat-resisting packing material, compressing it to thick paper
Uses: Substitution of corresponding models of asbestos rubber sheet ,Used for the equipment in
water,steam,etc.and used as sealing material in the joints of pipeline
Working pressure : 1.5～8.0 MPa ,Working temperature : 200 ～350℃
Available Sizes: Thickness: 0.5 to 5mm
1500 x 1500mm, 1500 x 1360mm, 1500 x 1000mm , 1270 x 1270mm,
The other size is optional or according to the requirements of customers.
At the same time, steel wire net inserted (coated graphite) is available.
Packing: in wooden pallet of about 1000 kgs, 2000kgs net each
- Product Details
- {{item.text}}
Quick Details
-
Product Name:
-
Compressed Fiber Rubber Sheet
-
Usage:
-
sealing material
-
thickness:
-
0.3-5mm
-
Color:
-
blue , green , red
-
size:
-
1500*1500mm
-
Temperature:
-
150 ~510℃
-
Packing:
-
in roll or pallet
-
Keywords:
-
asbestos free compressed gasket
-
payment:
-
30% Deposite
-
MOQ:
-
300 KGS
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
AOHONG
-
Model Number:
-
LYF-24051503
-
Product Name:
-
Compressed Fiber Rubber Sheet
-
Usage:
-
sealing material
-
thickness:
-
0.3-5mm
-
Color:
-
blue , green , red
-
size:
-
1500*1500mm
-
Temperature:
-
150 ~510℃
-
Packing:
-
in roll or pallet
-
Keywords:
-
asbestos free compressed gasket
-
payment:
-
30% Deposite
-
MOQ:
-
300 KGS
Products Description

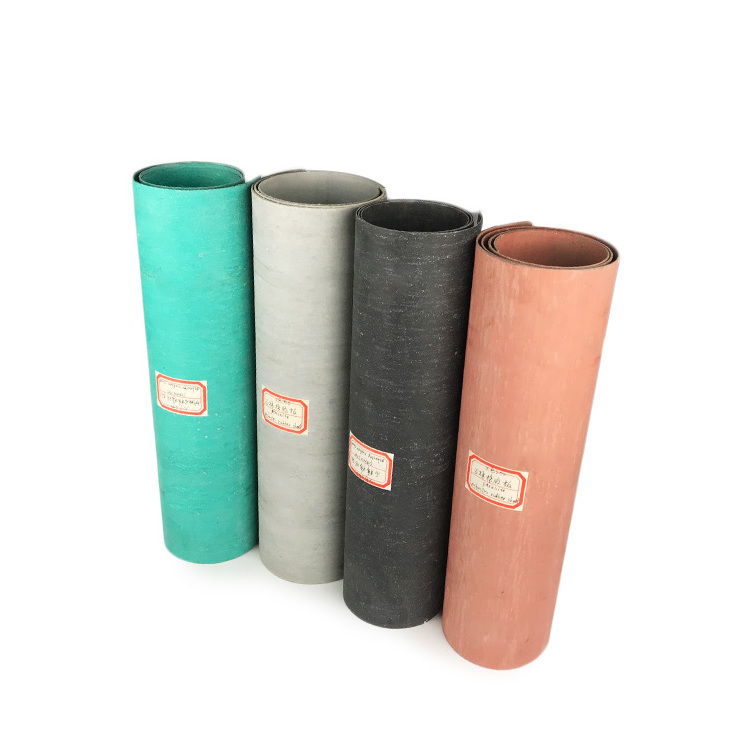

High performance colorful customized Non Asbestos rubber Gasket sheet
Product data
|
Item
|
NXB200
|
NXB250
|
NXB300
|
NXB350
|
|||
|
Tensile strength MPa≥
|
8.00
|
10.00
|
12.00
|
15.00
|
|||
|
Aging Coefficient ≥
|
0.9
|
|
|
|
|||
|
Compressibility %
|
12 ± 5
|
|
|
|
|||
|
Density g/cm³
|
1.8~1.9
|
|
|
|
|||
|
Nitrogen leakage rate [(ml/h.mm)] ≤
|
300
|
|
|
|
|||
|
Temperature Pliability
|
Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness), No crack
|
|
|
|
|||
Details Images
Recommend Products
PACKING AND DELIVERY
Company introduction
Customer Photos
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing County, Hengshui, Hebei
Q: Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also
ok(such as DHL).
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However, we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shipment. However this is
open for discussion.
Q: How can I get the quotation?
A: We usually quote within 24hours after we get your inquiry. If you are very urgent to get the price please call us or tell us in
your email so that we will regard your inquiry priority.
Q: What are your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost-effective for you.
Q: Can you do the further process?
A: Sure. We also can help our customers do the further such as printing and punching.
A: Factory, and our factory is located in Wangtong town, Jing County, Hengshui, Hebei
Q: Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also
ok(such as DHL).
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However, we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shipment. However this is
open for discussion.
Q: How can I get the quotation?
A: We usually quote within 24hours after we get your inquiry. If you are very urgent to get the price please call us or tell us in
your email so that we will regard your inquiry priority.
Q: What are your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost-effective for you.
Q: Can you do the further process?
A: Sure. We also can help our customers do the further such as printing and punching.
