Quick Details
-
Brand Name:
-
Xieli Machinery
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1300*960*1300mm
-
Weight (KG):
-
1000
-
Power (kW):
-
5
-
Brand:
-
Xieli Machinery
-
Funtion:
-
High Effiency
-
Material:
-
SS304
-
Application:
-
Metal Processing
-
Usage:
-
Grinding Products
-
Advantage:
-
High Precision Low Cost
-
Function:
-
Grinding Material
-
After-sales Service Provided:
-
Online support
Quick Details
-
Wheel Size(mm):
-
P350*125*127
-
Year:
-
2024
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xieli Machinery
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1300*960*1300mm
-
Weight (KG):
-
1000
-
Power (kW):
-
5
-
Brand:
-
Xieli Machinery
-
Funtion:
-
High Effiency
-
Material:
-
SS304
-
Application:
-
Metal Processing
-
Usage:
-
Grinding Products
-
Advantage:
-
High Precision Low Cost
-
Function:
-
Grinding Material
-
After-sales Service Provided:
-
Online support
|
Longitudinal feed grinding
|
Grinding workpiece diameter
|
0.8–60mm
|
|
|
|
Grinding length (max）
|
1000mm
|
|
|
Horizontal feed grinding
|
Grinding workpiece diameter
|
2–60mm
|
|
|
|
Grinding length (max）
|
125mm
|
|
|
Grinding wheel specification
|
|
P350*125*127
|
|
|
Guide wheel specification
|
|
P250*125*75
|
|
|
Grinding wheel rotating speed
|
|
2000r/min
|
|
|
Guide wheel rotating speed
|
|
Stepless 5-240r/min
|
|
|
Guide wheel rotary angle
|
In the vertical plane
|
-2° -5°
|
|
|
|
In the horizontal plane
|
-10°-10°
|
|
|
Standard test bar grinding accuracy （ø 20× 75 ）
|
Roundness
|
2 μ m
|
|
|
|
Cylindricity
|
3 μ m
|
|
|
|
Roughness
|
Ra0.2 μ m
|
|
|
Grinding feed
|
|
Feed amount of each grid of dial 0.002mm
|
|
|
Cooling pump flow
|
|
25L/min
|
|
|
Equipment power 5KW
|
Grinding wheel motor
|
4.0kw
|
|
|
|
Guide wheel motor
|
0.75kw
|
|
|
|
Cooling pump motor
|
0.09kw
|
|
|
Machine tool lead-in power supply
|
|
380V 50Hz 3P
|
|
|
Machine dimension
|
|
1300*960*1300mm
|
|
|
Machine tool weight approx
|
|
1000kg
|
|

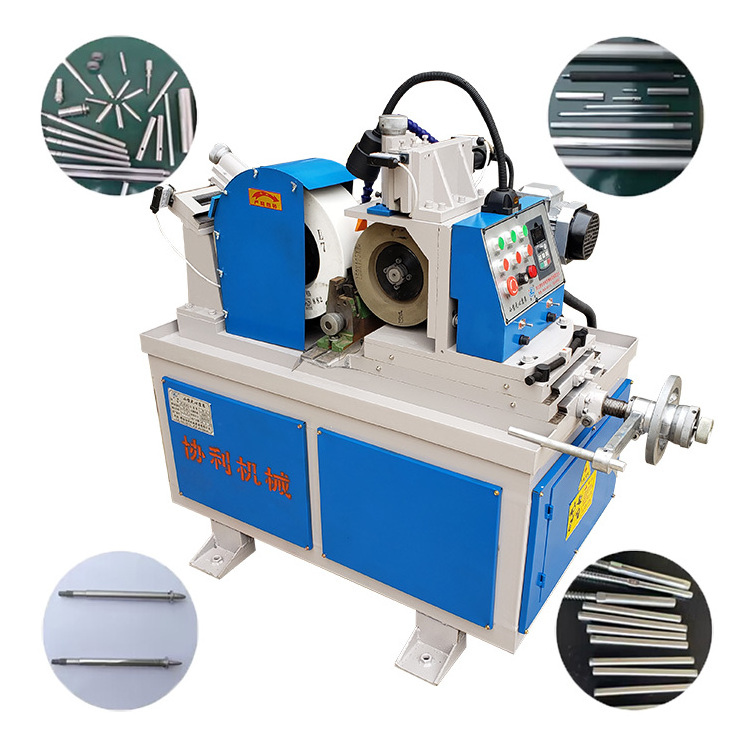

WX-M2-60 Machine Features:
1.Width of grinding wheel and guide wheel is 125mm，with larger grinding amount and better stabilit.
2.layout of the machine adopts the single-sided movement mode of regulating wheel frame.
3.Sand wheel shaft adopts overhang structure，so it is convenient to replace the grinding wheel.
4.Guide wheel shaft adopts overhang structure，easy to replace guide wheel.
5.Regulating wheel adopts frequency conversion to adjust the speed,which can realize the feed speed of the workpiece with different diameter.
6.Machine tool is equipment with cutting mechanism，which can realize grinding of step surface and cone surface.
7.Machine tool can be equipped with a long workpiece through grinding bracket.
8.Machine can be matchrd with a variety of automatic feeding equipment and automatic manipulator.
Main purpose and scope of application：
1.In addition to grinding with grinding wheel，PVA polishing wheel can be used to highlight and wet polish the workpiece.
2.It is mainly used for ginding the cylindrical surface of various ring and shaft parts，and for semi-automatic and automatic cutting-grinding of various stepped，and cylindrical rotating surfaces.
