Quick Details
-
Brand Name:
-
SHOOT
-
Voltage:
-
220V
-
Rated Power:
-
2.0/2.4kw
-
Dimension(L*W*H):
-
560*800*1300mm
-
Weight (KG):
-
275
-
Main motor power:
-
2.0/2.4kw
-
Maximum opening of clamp:
-
80mm
-
Spindle speed:
-
96/48rpm
-
Cooling pump power:
-
40w
-
Machine dimensions:
-
560*800*1300mm
Quick Details
-
Cutting Thickness (mm):
-
80
-
Blade Size(mm):
-
250mm-300mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHOOT
-
Voltage:
-
220V
-
Rated Power:
-
2.0/2.4kw
-
Dimension(L*W*H):
-
560*800*1300mm
-
Weight (KG):
-
275
-
Main motor power:
-
2.0/2.4kw
-
Maximum opening of clamp:
-
80mm
-
Spindle speed:
-
96/48rpm
-
Cooling pump power:
-
40w
-
Machine dimensions:
-
560*800*1300mm
Product Description

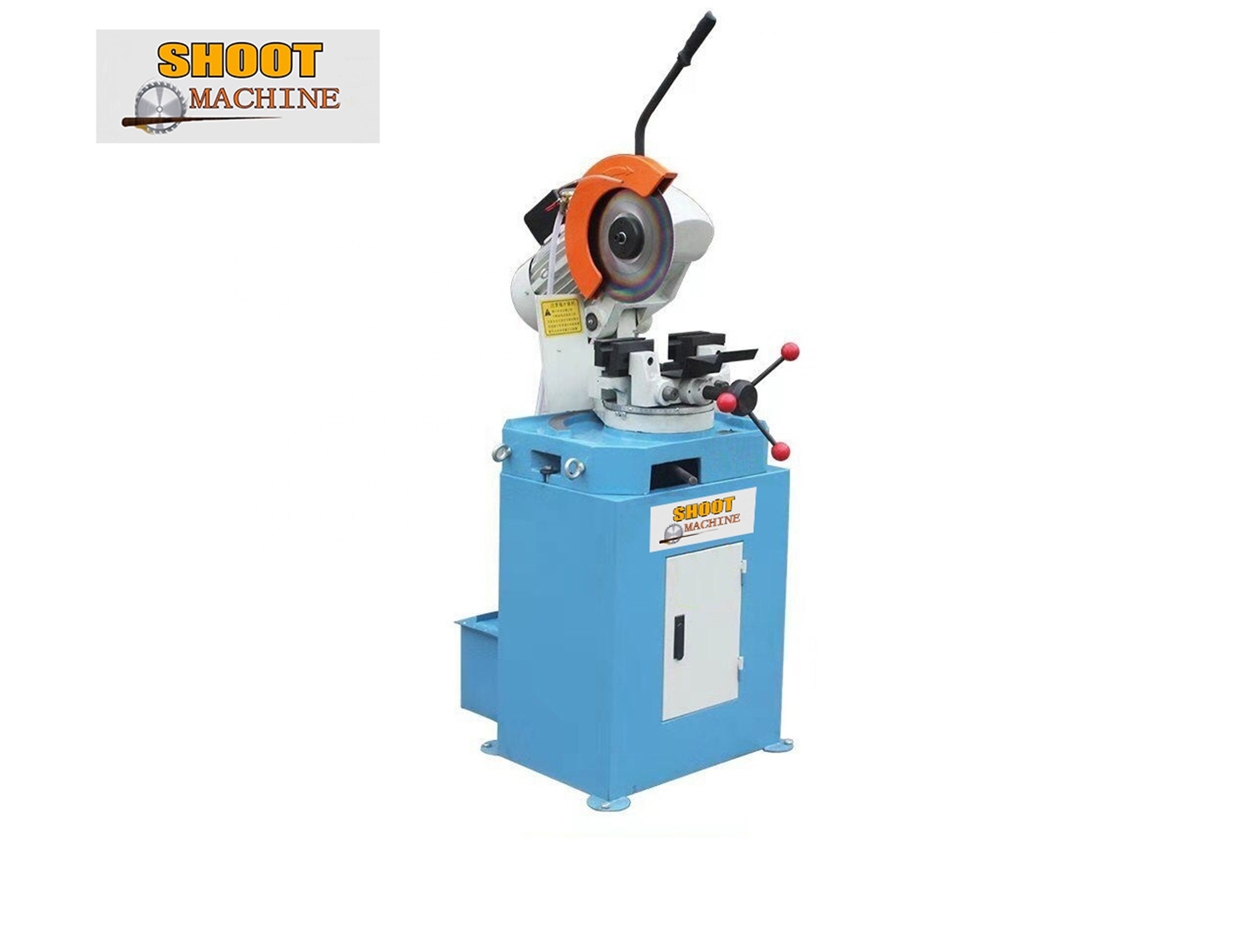

| Manual Cutter Pipe Machine | |
| Feature | |
| No burr and dust: bilateral two-way clamp makes the workpiece balanced, the section is smooth and free of burr, and the saw blade has low noise and pollution. | |
| Accurate, fast and smooth: the cutting speed is more accurate than band saw and bow saw, and the cutting surface is smooth and smooth without heating, saving secondary processing. | |
| Chamfering or milling groove: the machine head can adjust chamfering or milling groove left and right, the angle is accurate, the pipe interface is perfect and labor-saving | |
| Cooling assistant: circulating cooling system, with extra large capacity oil storage barrel, to ensure saw blade life and smooth section | |
| Model | SH-275A |
| Main motor power | 2.0/2.4kw |
| Maximum opening of clamp | φ80mm |
| Spindle speed | 96/48rpm |
| Applicable saw blade size | φ250mm-φ300mm |
| Cooling pump power | 40w |
| Compressed air | 0.6-0.8(mpa) |
| Machine dimensions | 560*800*1300mm |
| Sawing ability | |
| Head rotation angle | 90°/45° |
| φ80mm/φ80mm | |
| 60*60mm/60*60mm | |
| 60*60mm/50*50mm | |
| φ20mm/φ20mm | |
| 30*30mm/20mm*20mm | |
Packaging & Shipping
Packing: by Plywood Case or Plastic Film
Shipping: Qingdao Port
Deliver time: 30days after receive payment
