Quick Details
-
Model Number:
-
L-FS40
-
Warranty:
-
12 Months
-
Certification:
-
ce
-
Product name:
-
automotive lift used 4 post vehicle lift
-
Color:
-
Blue.Red.Grey.Yellow
-
Capacity:
-
4.0t(9000lbs)
-
Lifting Time:
-
70s
-
Motor power:
-
2.2KW
-
Power Supply:
-
220V/240V/380V/415V
-
Name:
-
Garage Car Elevator
-
Application:
-
Auto Maintanence
-
Usage:
-
CAR REPAIR MAINTANCE LIFTING
Quick Details
-
Lifting Capacity:
-
4000kg
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LIANHU
-
Model Number:
-
L-FS40
-
Warranty:
-
12 Months
-
Certification:
-
ce
-
Product name:
-
automotive lift used 4 post vehicle lift
-
Color:
-
Blue.Red.Grey.Yellow
-
Capacity:
-
4.0t(9000lbs)
-
Lifting Time:
-
70s
-
Motor power:
-
2.2KW
-
Power Supply:
-
220V/240V/380V/415V
-
Name:
-
Garage Car Elevator
-
Application:
-
Auto Maintanence
-
Usage:
-
CAR REPAIR MAINTANCE LIFTING
Product Description

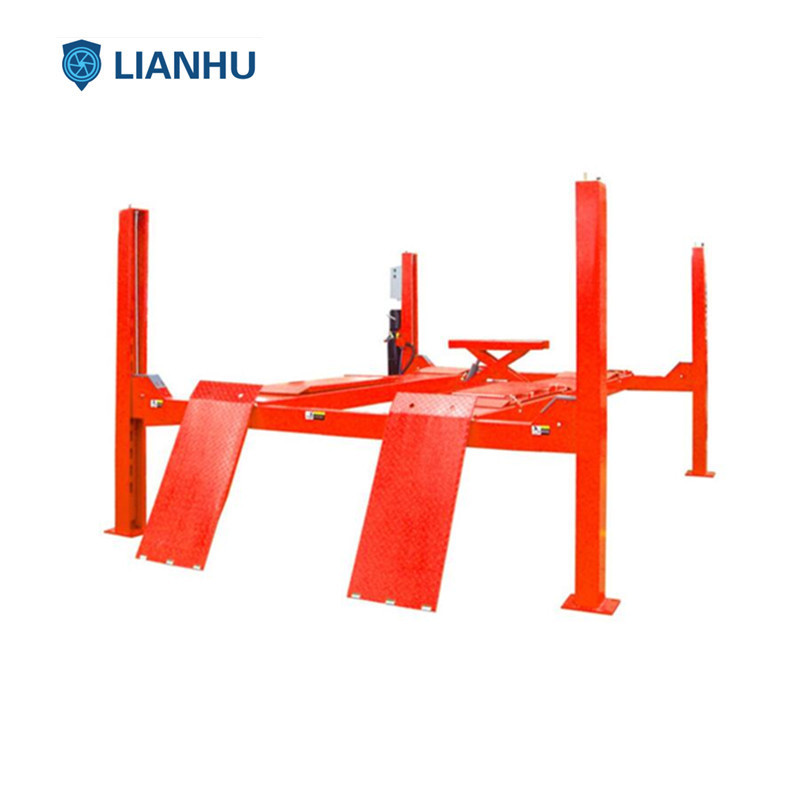

automotive lift used 4 post vehicle lift
Technical Parameters : automotive lift used 4 post vehicle lift
|
Model No.
|
LH-FS40
|
|
Motor power:
|
2.2kw
|
|
Power supply:
|
240/415V/380/220V 1/3 Phase
|
|
Noise level:
|
<70dB
|
|
Machine Body:
|
Main Unit
|
|
Lifting Capacity:
|
4000kg
|
|
Lifting Height:
|
1700mm
|
|
Min Height:
|
100mm
|
|
Height of post:
|
2110mm
|
|
Runway Length:
|
4860mm
|
|
Runway width:
|
3100mm
|
|
Lifting time:
|
75s
|
|
Lowest time:
|
65s
|
Features:
1.Single point manual lock release.
2.Width betwwen two plaforms is adjustable to be fit for different vehicle.
3.Mechanical safety lock installedin each column.
4.Adjustable turnplate position and siliding plate specially for 4 wheel alignment prupose.
5.Front and rear stop plate well protect the vehicle during repairing.
6.Center rolling jack including as standard
7.Imported three-way valve perfectly shift the operation between lift and rolling jack.
1.Single point manual lock release.
2.Width betwwen two plaforms is adjustable to be fit for different vehicle.
3.Mechanical safety lock installedin each column.
4.Adjustable turnplate position and siliding plate specially for 4 wheel alignment prupose.
5.Front and rear stop plate well protect the vehicle during repairing.
6.Center rolling jack including as standard
7.Imported three-way valve perfectly shift the operation between lift and rolling jack.
