Quick Details
-
Weight (KG):
-
1000 kg
-
OEM:
-
OEM Support
-
Keywords:
-
slab scissor lifts
-
Material:
-
High-strength Mn Steel Q500
-
Power:
-
DC
-
Application:
-
inventory management/general maintenance
-
Voltage:
-
220/380V, 50/60Hz
-
Lifting speed:
-
4-6 M/min
-
Lift Drive:
-
Hydraclic Scissor Lift
-
Color:
-
Orange,Customized
-
ODM:
-
ODM Support
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QIYUN
-
Weight (KG):
-
1000 kg
-
OEM:
-
OEM Support
-
Keywords:
-
slab scissor lifts
-
Material:
-
High-strength Mn Steel Q500
-
Power:
-
DC
-
Application:
-
inventory management/general maintenance
-
Voltage:
-
220/380V, 50/60Hz
-
Lifting speed:
-
4-6 M/min
-
Lift Drive:
-
Hydraclic Scissor Lift
-
Color:
-
Orange,Customized
-
ODM:
-
ODM Support

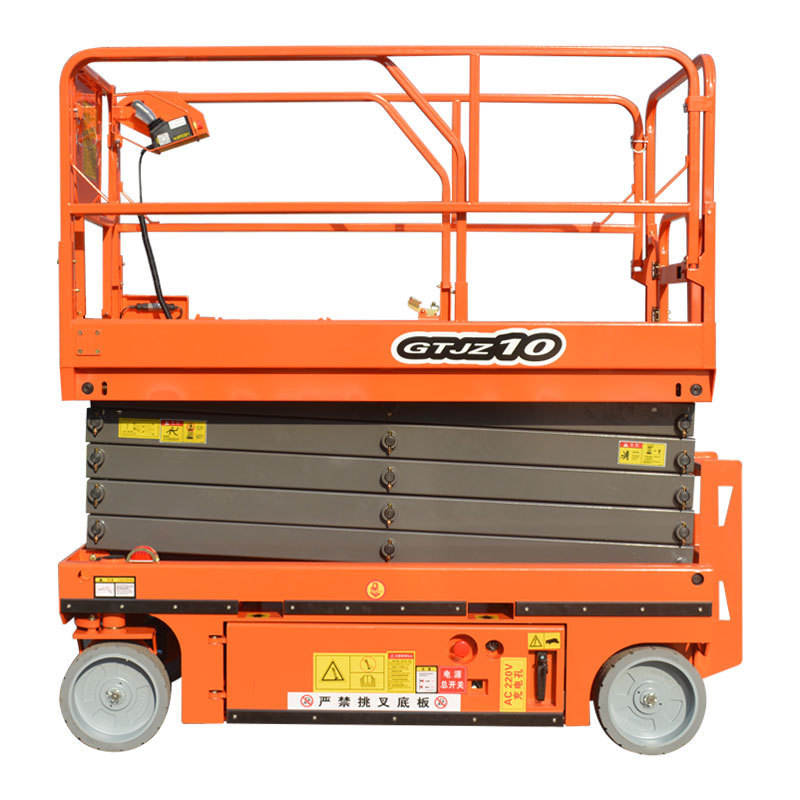

China Qiyun Hot Sale Self Propelled Hydraulic Electric Scissor Lift Platform with CE ISO
PRODUCT INTRODUCTION(Please communicate with us before paying, because the price in the title is just a deposit, not the full amount! !)
Self-propelled scissor lift can move by itself without external force and external power source. It can work only with one person and it is very convenient and efficient. It can walk even in the full height. It is widely used for building. It is made up of bottom frame, scissor structure and guardrail. Its platform height is from 3m to 14m. Load capacity is from 230 to 550 kilogram. The extension of platform can be 90 centimeter and carry 113 kg. The rack is made of square tube, and can be folded. The scissor structure is made from Q500 manganese steel, and for high configuration, it is made from Q500 manganese steel. We have three different configurations for your choose. The main differences are materials and parts brand. Welcome to visit our factory.
|
Model |
Table size (mm) |
Load (kg) |
Lifting height (m) |
Dimensiones (mm) |
Extended table size (mm) |
Weight (kg) |
|
GTJZ-6A |
2260*810 |
380 |
6 |
2475*810*2158 |
900 |
1850 |
|
GTJZ-6 |
2260*1130 |
550 |
6 |
2475*1150*2158 |
900 |
2060 |
|
GTJZ-8A |
2260*810 |
230 |
8 |
2475*810*2286 |
900 |
1980 |
|
GTJZ-8 |
2260*1130 |
450 |
8 |
2475*1150*2286 |
900 |
2190 |
|
GTJZ-10 |
2260*1130 |
320 |
10 |
2475*1150*2414 |
900 |
2430 |
|
GTJZ-12 |
2260*1130 |
320 |
11.8 |
2475*1150*2542 |
900 |
2960 |
|
GTJZ-14 |
2640*1130 |
227 |
13.8 |
2840*1390*2590 |
900 |
3320 |
Matters need attention:
1. The outriggers must be supported before work.
2. When the lift is in use, the work surface should be level.
3. During the lifting process of the machine, personnel are strictly prohibited from climbing.
4. Overloading is strictly prohibited during use and the contents should be properly placed.
5. The lubricating oil used should be kept clean and must not be mixed with water and other impurities. It should be replaced
every 3-6 months.
6. When the maintenance or failure occurs, the power supply should be cut off in time.
FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, Alibaba Trade Assurance. T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better. Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.
