Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TZYL
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
1 - 870 ℃
-
Core Components:
-
heating wire
-
Application:
-
oil, water ,other liquid etc
-
Keywords:
-
cartridge heater/ electric heating element
-
Tube Diameter:
-
3mm-25mm
-
Max temperature:
-
870c(1600F)
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TZYL
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
1 - 870 ℃
-
Core Components:
-
heating wire
-
Application:
-
oil, water ,other liquid etc
-
Keywords:
-
cartridge heater/ electric heating element
-
Tube Diameter:
-
3mm-25mm
-
Max temperature:
-
870c(1600F)

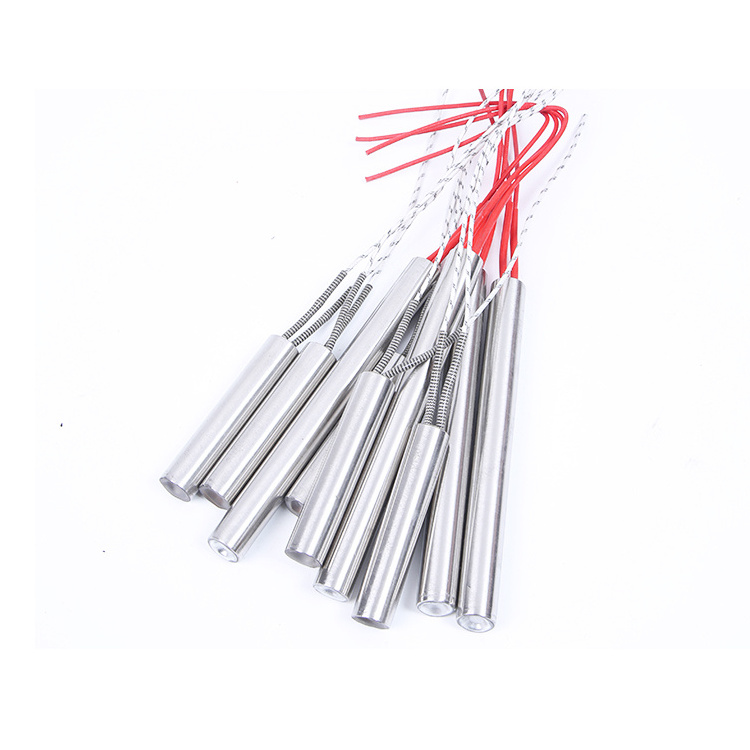

100w Industrial Stainless Steel Air Electric 3D Printer 12V Heating Element Heater Cartridge
Product Description
Electric heater cartridge is made of MgO powder and MgO tube, ceramic cap, resistance wire(NiCr2080), High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
Advantages and Datas
internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.
external wiring: high temperature resistance, uniform heating and high thermal conductivity.
external wiring: high temperature resistance, uniform heating and high thermal conductivity.
|
Resistance heating wire
|
NiCr 80/20 wire
|
|
Sheath
|
stainless steel 304,321,316, Incoloy 800, Incoloy 840
|
|
Tube diameter
|
3mm-30mm
|
|
Tube length
|
min is 15mm max is 3meter.
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Resistance tolerance
|
+10%, -5%
|
|
Length tolerance
|
±1 mm
|
|
Diameter tolerance
|
± 0.02mm
|
|
Standard Cold Zone
|
5-10mm
|
|
Thermocouple Location
|
type J / k
|
|
Insulation resistance (cold)
|
≥ 500 MΩ
|
|
Maximum leakage current (cold)
|
≤ 0.5 mA
|
The size specifications of the picture are standard dimensions for reference only. Other size specifications can also be customized.
Customer Evaluation
Packing & Delivery
Plastic bag & Carton box
