Quick Details
-
Filling Accuracy:
-
99.5%
-
Voltage:
-
220V/380V 50HZ(can be customized)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Urban
-
Dimension(L*W*H):
-
1800*850*1980mm
-
Weight:
-
850 KG
-

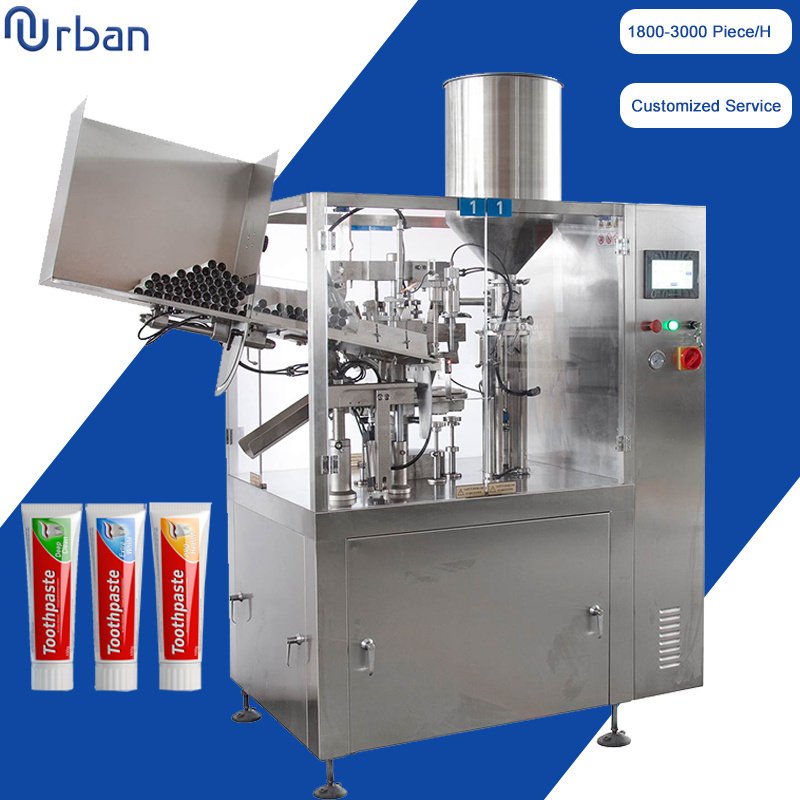

Product name:
-
tube filling sealing machine
-
Filling capacity:
-
5-180ml
-
Filling precision:
-
≤+/-1%
-
Certification:
-
CE
-
Advantage:
-
20 Years Experiences(High speed+High accuracy+High quality+Customized)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH
-
Packaging Material:
-
Plastic, PVC, PE, PET
-
Filling Material:
-
Other, Water, Oil, liquid, paste
-
Filling Accuracy:
-
99.5%
-
Voltage:
-
220V/380V 50HZ(can be customized)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Urban
-
Dimension(L*W*H):
-
1800*850*1980mm
-
Weight:
-
850 KG
-
Product name:
-
tube filling sealing machine
-
Filling capacity:
-
5-180ml
-
Filling precision:
-
≤+/-1%
-
Certification:
-
CE
-
Advantage:
-
20 Years Experiences(High speed+High accuracy+High quality+Customized)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
|
Model
|
NF-60Z
|
|
Power Supply
|
380V / 3 Phase / AC / 50 Hz
|
|
Filling volume
|
5-180ml
|
|
Suitable tube length
|
50-180mm
|
|
Sutable tube diameter
|
Ф13-35mm
|
|
Filling precision
|
≤+/-1%
|
|
Air pressure
|
0.4-0.6 MPa
|
|
Ovrerall dimensions (mm)
|
1800X850X1980mm
|
|
Weight (kg)
|
850kg
|
Products Description
Features
1、Full-automatically controlled by PLC. It is easy for display and operation by touch screen.
2、Automatically tube feeding. Tubes can load into station automatically
3、Automatic mark-finding \tube-orientation device
4、No tube no fill
5、Technology of blowing-cut and cutting is applied in material filling to ensure the filling of material of high viscosity. This design can ensure the high filling accuracy with simple structure which is easy to remove and clean.
6、Manipulator assembly for metal tubes folding It can efficiently finish metal tubes end double folding, triple folding
and saddle folding. The sealing shape ,appearance and dependence has high praise domestically and abroad.
7、Automatic batch code printing device Tube sealing and batch code printing in end can be finished by System. Batch code can be printed on both sides.
8、Automatic tube-exiting device Filled, sealed, printed tubes exit from the machine automatically. It is Convenient to connect with other equipment such as cartooning Machine.
9、Capacity setting control and capacity counting can be realized
10、Non-step frequency timing
11、It is easy to operate between different sizes of tubes
12、Highly clear stainless steel frame
13、It is easy to connect with emulsifier
14、Alarming device
15、Machine self-stop device when over-loading Alarming information will display on touch screen
16. Equipped with manipulator assembly for folding
17. Material:
Upper frame---------AISI stainless steel 304
Under frame---------carbon steel
18. The upper part of the box to be completely polished 。
19. The main components of equipment are all high-quality products
20. All parts for mechanical transmission linkage bearings
