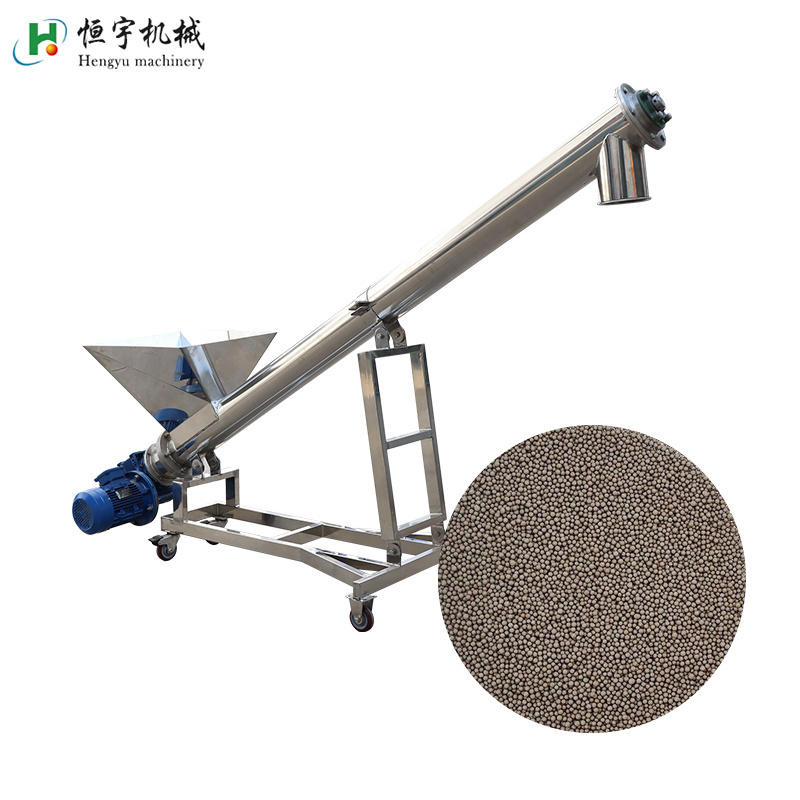

Animal Feed Chicken Feed Bulk Particle Mobile Diameter 159mm Inclined U Type Trough Screw Auger Feeder Conveyor with Hopper

Animal Feed Chicken Feed Bulk Particle Mobile Diameter 159mm Inclined U Type Trough Screw Auger Feeder Conveyor with Hopper

FOB Reference Price: Get Latest Price

≥1 Sets

US $880

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: HENG SHUN

Voltage:: According to your request, 220V/380V/415V or others

Dimension(L*W*H):: Depends on the model

Weight (KG):: 220 kg

Keywords:: Screw conveyor

Max conveying length:: 25meters

Screw Pitch:: 200/250/300/400/500/600mm...

Delivery Angle:: 0-45 degree

Capacity:: 10Kg-30Tons/hour

Matching Power:: 5.5-3.0kw

Applicantion:: dry material of all industry

Usage:: Workshops Continual Conveying

Quick Details

Power:: Depends on the model

Warranty:: 1 Year

Width or Diameter:: Other

Place of Origin:: Henan, China

Brand Name:: HENG SHUN

Voltage:: According to your request, 220V/380V/415V or others

Dimension(L*W*H):: Depends on the model

Weight (KG):: 220 kg

Keywords:: Screw conveyor

Max conveying length:: 25meters

Screw Pitch:: 200/250/300/400/500/600mm...

Delivery Angle:: 0-45 degree

Capacity:: 10Kg-30Tons/hour

Matching Power:: 5.5-3.0kw

Applicantion:: dry material of all industry

Usage:: Workshops Continual Conveying

Animal Feed Chicken Feed Bulk Particle Mobile Diameter 159mm Inclined U Type Trough Screw Auger Feeder Conveyor with Hopper

Product Introduction

Screw Conveyor is a leading of bulk material handling equipment. Screw conveyor with your needs for bulk material handling solutions that convey, feed, and elevate your specific material. Screw Conveyor is the main units for mechanical transport operation of various departments of industry and agricultures, screw conveyor can be used to reduce labor intensity and improve efficiency, being applied widely.

Advantage

Details Show

Customer Feedback

Technical Parameter

Model	LS 100	LS 160	LS 200	LS 250	LS 315	LS 400	LS 500
Screw Pitch (mm)	100	160	200	250	315	400	500
Speed (r/min)	140	112	100	90	80	71	63
Capacity (m³/h)	2.2	8	14	24	34	64	100
Speed, Capacity Can be customized

Type

Type 1: Horizontal type
Type 2: Inclined type
Type 3:Tube type
Type 4: U shape
Type 5: Hopper type

Name : mobile screw conveyor
Material: stainless steel 304 or carbon steel
Tube diameter : depend on requirements
Advantage : easy for moving

Name: U type level screw conveyor
Material: carbon steel
Tube diameter: depend on requirements
Length: as needed

Name: vertical screw conveyor
Material : stainless steel 304 or carbon steel
Tube diameter : depend on requirements

Name: U type level screw conveyor
Material: stainless steel 304
Tube diameter: depend on requirements
Length: as needed

Production Experience

FAQ

Q1. Are you a trading company or factory?
A: We are factory and we have experienced technicians(more than 20 years experience in screening and conveying flied).

Q2. What is your terms of payment?
A: We usually accept T/T, L/C;
1. T/T: 30% in advance, the balance before delivery;
2. We will test each machine before delivery, also we will show their pictures and videos to client for remote confirmation.

Q3. Do you test all your goods before delivery?
A: Yes, every product will be tested before delivery. If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

Q4. How does your after-sale service work if the product got damaged?
A: In the guarantee time of 12 months, our general after-sale service will change the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: Vulnerable parts do not include.
