Quick Details
-
Marketing Type:
-
Hot Product
-
Weight:
-
1500 KG
-
Fuel:
-
Diesel Oil
-
Front Wheel:
-
6.0-12
-
Rear Wheel:
-
9.5-16
-
Clutch:
-
Dry-friction, single stage
-
Steering:
-
Standard mechanical type, Optional hydraulic type
-
Transmission Box:
-
8F+2R Collar Shift
-
Suspension Type:
-
Post Positioned Three-point Suspension Catalogue 0
-
PTO Type and Rev. (r/min):
-
Post-position, half-independent, 720
-
PTO Spline Size:
-
I35 Rectangle Spline with 6 teeth
Quick Details
-
Rated Power (HP):
-
25HP,30HP,35HP,40HP,50HP,60HP
-
Brand Name:
-
LS
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
Hot Product
-
Weight:
-
1500 KG
-
Fuel:
-
Diesel Oil
-
Front Wheel:
-
6.0-12
-
Rear Wheel:
-
9.5-16
-
Clutch:
-
Dry-friction, single stage
-
Steering:
-
Standard mechanical type, Optional hydraulic type
-
Transmission Box:
-
8F+2R Collar Shift
-
Suspension Type:
-
Post Positioned Three-point Suspension Catalogue 0
-
PTO Type and Rev. (r/min):
-
Post-position, half-independent, 720
-
PTO Spline Size:
-
I35 Rectangle Spline with 6 teeth

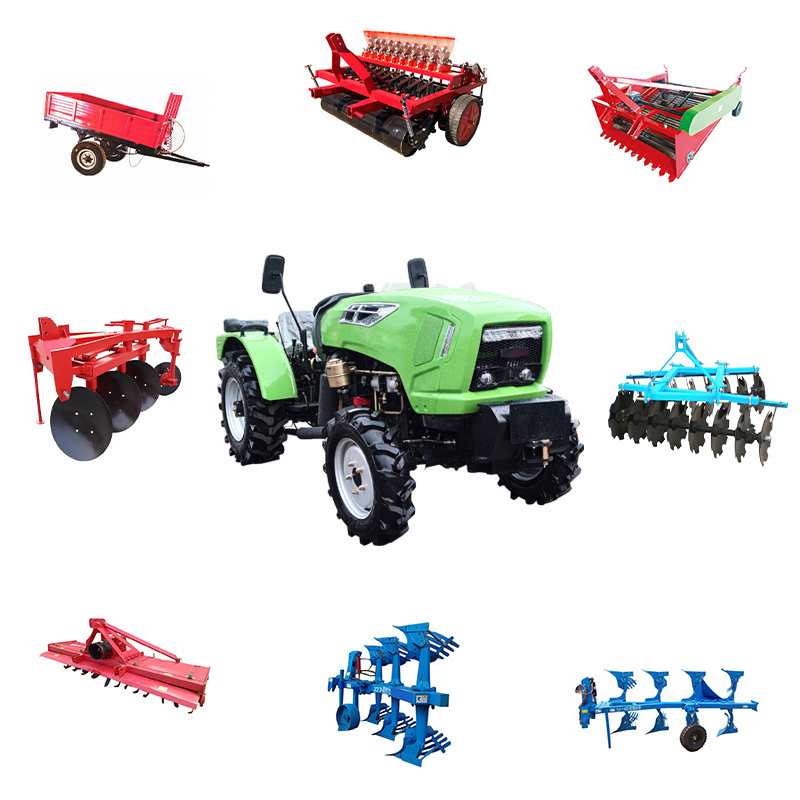

It is characterized by small size and low price.It is suitable for current gardens,greenhouses,mountains,woodlands and plains,and has high work efficiency and quality.Equipped with different farm tools,it can be applied to the field management of cultivated land,fertilization,broken soil,spray,etc.of vegetables,flower greenhouses and gardens.
|
Model
|
|
|
HW254D
|
HW304D
|
HW354D
|
HW404D
|
HW504D
|
HW554D
|
|||||||
|
Type
|
|
|
4×4
|
4×4
|
4×4
|
4×4
|
4×4
|
4×4
|
|||||||
|
Overall
Dimension （mm） |
L×W×H
|
|
3050×1220×1200
|
3150×1220×1200
|
3250×1220×1200
|
3250×1220×1200
|
3350×1350×1200
|
3350×1350×1200
|
|||||||
|
|
Tread
|
Front Wheel
|
970
|
970
|
970
|
970
|
1000
|
1000
|
|||||||
|
|
|
Rear Wheel
|
970
|
970
|
970
|
970
|
1100
|
1100
|
|||||||
|
|
Wheel Base
|
|
1600
|
1600
|
1650
|
1650
|
1650
|
1650
|
|||||||
|
|
Min. Ground Base
|
|
280（the bottom of transfer case）
|
|
|
|
|
|
|||||||
|
Min. Usage Mass（kg）
|
|
|
1300
|
1300
|
1400
|
1400
|
1500
|
1500
|
|||||||
|
Engine
|
Model
|
|
Laidong KM385
|
Laidong KM390BT
|
Laidong 4L22BT
|
Laidong 4L23BT
|
Laidong 4L100
|
Laidong 4100
|
|||||||
|
|
Type
|
|
Vertical, water cooled and 4-stroke
|
|
|
|
|
|
|||||||
|
|
Rated Power （kw）
|
|
18.4
|
22.1
|
25.7
|
29.4
|
36.7
|
40.4
|
|||||||
|
|
Rated Rev.（r/min）
|
|
2300
|
2300
|
2350
|
2300
|
2400
|
2400
|
|||||||
|
|
Fuel
|
|
Diesel Oil
|
|
|
|
|
|
|||||||
|
Tire
|
Front Wheel
|
|
6.0-12
|
|
|
|
|
|
|||||||
|
|
Rear Wheel
|
|
9.5-16
|
|
|
|
|
|
|||||||
|
Clutch
|
|
|
Dry-friction, single stage
|
|
|
|
|
|
|||||||
|
Steering
|
|
|
Standard mechanical type, Optional hydraulic type
|
|
|
|
|
|
|||||||
|
Transmission Box
|
|
|
8F+2R Collar Shift
|
|
|
|
|
|
|||||||
|
Suspension Type
|
|
|
Post Positioned Three-point Suspension Catalogue 0
|
|
|
|
|
|
|||||||
|
PTO
|
Type and Rev. （r/min）
|
|
Post-position, half-independent, 720
|
|
|
|
|
|
|||||||
|
|
Spline Size
|
|
I35 Rectangle Spline with 6 teeth
|
|
|
|
|
|
|||||||
