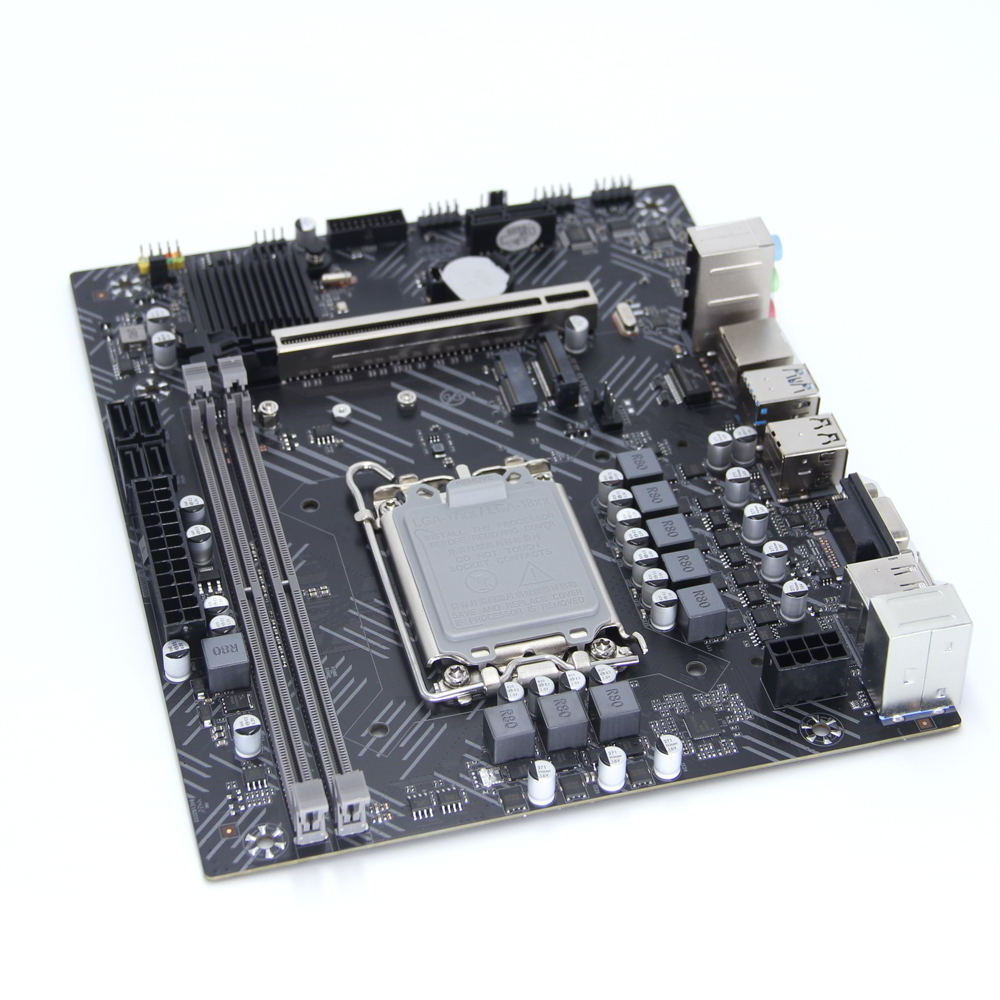

Quick Details
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel H610&B660, Intel H610&B660
-
Brand Name:
-
no
-
Place of Origin:
-
guangdong
-
Audio Chip:
-
Realtek ALC897 HD Audio Chip
-
Ethernet Chip:
-
Intel I219V Gigabit LAN Chip
-
CPU Model:
-
Intel Core i7/Core i5/Core i3/Pentium/Celeron
-
CPU Platform:
-
Intel LGA1700 12th Gen CPU TDP:65W
-
Memory Types:
-
DDR4 2666MHz/2933MHz Max:64G
-
Memory Channel:
-
2*DDR4 SO-DIMM
-
Backlight Functionality::
-
voltage of backlight(12V/19V)
-
SSD Slot:
-
1*M.2 2280 size(support SATA/NVME Co-Lay)
Quick Details
-
Maximum Ram Capacity:
-
512GB
-
Application:
-
Desktop
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel H610&B660, Intel H610&B660
-
Brand Name:
-
no
-
Place of Origin:
-
guangdong
-
Audio Chip:
-
Realtek ALC897 HD Audio Chip
-
Ethernet Chip:
-
Intel I219V Gigabit LAN Chip
-
CPU Model:
-
Intel Core i7/Core i5/Core i3/Pentium/Celeron
-
CPU Platform:
-
Intel LGA1700 12th Gen CPU TDP:65W
-
Memory Types:
-
DDR4 2666MHz/2933MHz Max:64G
-
Memory Channel:
-
2*DDR4 SO-DIMM
-
Backlight Functionality::
-
voltage of backlight(12V/19V)
-
SSD Slot:
-
1*M.2 2280 size(support SATA/NVME Co-Lay)
Specification
|
Motherboard Chipset
|
|
|
|
CPU SUPPORT
|
Socket 1151 for Intel Core i7 / i5 / i3 / Pentium / Celeron processor
|
|
|
CHIPSET
|
Intel H110
|
|
|
MEMORY
|
2 x DDR4 2400 MHz Long DIMM slot
|
|
|
EXPANSION SLOT
|
1 x PCI-E x16 Slot
5 x PCI
1 x PCI-Ex4 Slot
1 x M.2 M key 2242/2260/2280 slot for SATA SSD
4 x SATAIII
1 x TPM 2.0 chip onboard
|
|
|
GRAPHICS
|
Intel Integrated Graphic
1 x VGA
1 x HDMI
1 x Display Port
|
|
|
AUDIO
|
Realtek ALC897 HD Audio
|
|
|
LAN
|
1 x Intel I219-V (10/100/1000Mbps)
1 x Intel i225-V 2.5G LAN
|
|
|
SUPER I/O CHIP
|
ITE IT8625E
|
|
|
REAR I/O
|
1 x PS/2 Keyboard
2 x USB 2.0
1 x HDMI
2 x GbE
3 x Audio jack Line in/Line-out / Mic in
4 x USB 3.0
1 x Display Port
2 x RS232/422/485, DB9 connector
|
|
|
INTERNAL I/O
|
4 x SATA Connector
2 x USB 2.0 Header (each support 2 devices)
4 x Serial Header for RS232
1 x Front Audio Header Line-out & Mic-in
1 x Front Panel Header
1 x DIO(GPIO) 8 bit (4-In, 4-Out) Header
1 x ATX Power Connector
1 x Buzzer
1 x CPU FAN header
1 x System FAN header
1 x 2*2 pin 12V power connector
2 x 5/12V Jumper for serial port use
1 x 24pin ATX power
|
|
|
DIMENSION
|
ATX 305 x 220 mm
|
|
|
CERTIFICATION
|
CE/FCC/ROHS
|
|
|
OS SUPPORT
|
Win7- 32/64bits, Win 8.1-64bits,Win10-64bits
|
|
