Quick Details
-
Model Number:
-
GT12
-
Material:
-
Metal/Rubber, stainless steel
-
Product Name:
-
Ultrasonic thickness gauge probe
-
Use for:
-
Thickness measurement
-
Color:
-
Customer's Request
-
Package:
-
Standard Package
-
Packing:
-
Carton Packaging
-
MOQ:
-
5 Pcs
-
Type:
-
5MHz*10
-
Logo:
-
Customized Logo
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAOBO
-
Model Number:
-
GT12
-
Material:
-
Metal/Rubber, stainless steel
-
Product Name:
-
Ultrasonic thickness gauge probe
-
Use for:
-
Thickness measurement
-
Color:
-
Customer's Request
-
Package:
-
Standard Package
-
Packing:
-
Carton Packaging
-
MOQ:
-
5 Pcs
-
Type:
-
5MHz*10
-
Logo:
-
Customized Logo
|
Product name
|
Customized High Temperature Probe of Ultrasonic Thickness Gauge GT12 5MHZ*10 PT-12 PT-08 PT-06 ZT-12
|
|
Compatible device Model
|
GT12
|
|
Probe type
|
LINEAR probe
|
|
Frequency
|
5MHz*10
|
|
Features
|
original or compatible
|
|
Repair
|
Yes
|
|
ODM/OEM
|
available
|
|
Packaging detail
|
1 pc / box
|
|
Warranty
|
12 months
|
|
Application
|
ultrasound machine
|
|
Delivery time
|
3-7 working Days
|
|
Application field
|
Metal workpiece thickness measurement/pipe wall thickness measurement/thickness measurement of plastics, metals, and internal corrosive materials
|
|
Sample
|
not available
|
|
MOQ
|
1
|
|
Specification model
|
Thickness measurement range
|
Chip diameter
|
Contact surface diameter
|
Frequency
|
Applicable temperature
|
Weight
|
|
5MHzΦ10（5PΦ10、5M PT-12）
|
1-250mm
|
Φ10mm
|
Φ12mm
|
5MHz
|
-10℃~60℃
|
48g
|
|
5MHzΦ8 (5PΦ8、5M PT-08)
|
1-225mm
|
Φ8mm
|
Φ10mm
|
5MHz
|
-10℃~60℃
|
45g
|
|
5MHzΦ6 (5PΦ6、5M PT-06)
|
1-60mm
|
Φ6mm
|
Φ8mm
|
5MHz
|
-10℃~60℃
|
45g
|
|

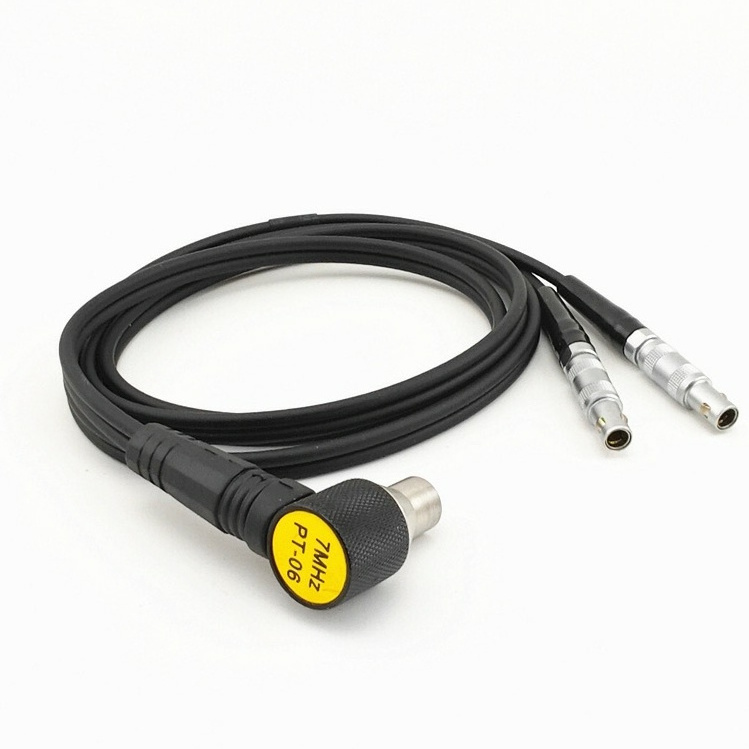

7MHzΦ6 (7PΦ6、7M PT-06、7.5P6)
|
0.8-60mm
|
Φ6mm
|
Φ8mm
|
7MHz
|
-10℃~60℃
|
42g
|
|
10MHzΦ4 (10PΦ4、10M PT-04)
|
0.75-30mm
|
Φ4mm
|
Φ6mm
|
10MHz
|
-10℃~60℃
|
42g
|
|
2MHz ZT-12 (black shell)
|
1.5-200mm
|
Φ12mm
|
Φ14mm
|
2MHz
|
-10℃~60℃
|
48g
|
|
2MHz ZT-12 (silver shell)
|
1.5-200mm
|
Φ12mm
|
Φ18mm
|
2MHz
|
-10℃~60℃
|
75g
|
|
GT-12 250 ℃
|
2-220mm
|
Φ10mm
|
Φ14mm
|
5MHz
|
-10℃~250℃
|
110g
|
|
GT-12 350 ℃
|
2-220mm
|
Φ10mm
|
Φ12mm
|
5MHz
|
-10℃~350℃
|
110g
|
|
GT-12 500 ℃
|
2-220mm
|
Φ10mm
|
Φ12mm
|
5MHz
|
-10℃~500℃
|
110g
|
|
5MHz Φ 10 (5P) Φ 10) Straight shell
|
1-250mm
|
Φ10mm
|
Φ12mm
|
5MHz
|
-10℃~60℃
|
53g
|
|
5MHz Φ 8 (5P) Φ 8. 5M PT-08) Silver Shell
|
1-225mm
|
Φ8mm
|
Φ11mm
|
5MHz
|
-10℃~60℃
|
51g
|
|
5MHz Φ 8 (5P) Φ 8. 5M PT-08) European shell
|
1-225mm
|
Φ8mm
|
Φ11mm
|
5MHz
|
-10℃~60℃
|
75g
|
|
TSTU32
|
2-220mm
|
20mm
|
Φ22mm
|
2MHz
|
-10℃~60℃
|
123g
|
|
10MHz Φ 4 (10P) Φ 4. 10M PT-04) Square shell
|
0.75-30mm
|
Φ4mm
|
Φ7mm
|
10MHz
|
-10℃~60℃
|
20g
|
Due to differences in performance, range, and material texture among different brands of thickness gauges, there is no absolute value for the measurement range.
The above parameters are compiled and provided by Changzhou Daobo Ultrasonic Electronics Co., Ltd. for reference only. Please refer to the actual situation for details.
