Quick Details
-
Model:
-
HBVM-600
-
Size (L*W*H):
-
1845*1330*1380mm
-
Power Source:
-
AC220V±10V 50/60 HZ
-
Working Pressure:
-
5Kgf/cm 0.49Mpa
-
Max.AllowedPressure:
-
8Kgf/cm 0.8Mpa
-
Drive System:
-
Z custom madeX.Y Pneumatic Cylinder
-
Swivel:
-
90°Fixed Pneumatic
-
Control System:
-
HS80 HS48
-
Power Capacity:
-
1.5/2KVA
Quick Details
-
Place of Origin:
-
Hubei, China
-
Weight (KG):
-
550
-
After-sales Service Provided:
-
Overseas third-party support available
-
Model:
-
HBVM-600
-
Size (L*W*H):
-
1845*1330*1380mm
-
Power Source:
-
AC220V±10V 50/60 HZ
-
Working Pressure:
-
5Kgf/cm 0.49Mpa
-
Max.AllowedPressure:
-
8Kgf/cm 0.8Mpa
-
Drive System:
-
Z custom madeX.Y Pneumatic Cylinder
-
Swivel:
-
90°Fixed Pneumatic
-
Control System:
-
HS80 HS48
-
Power Capacity:
-
1.5/2KVA

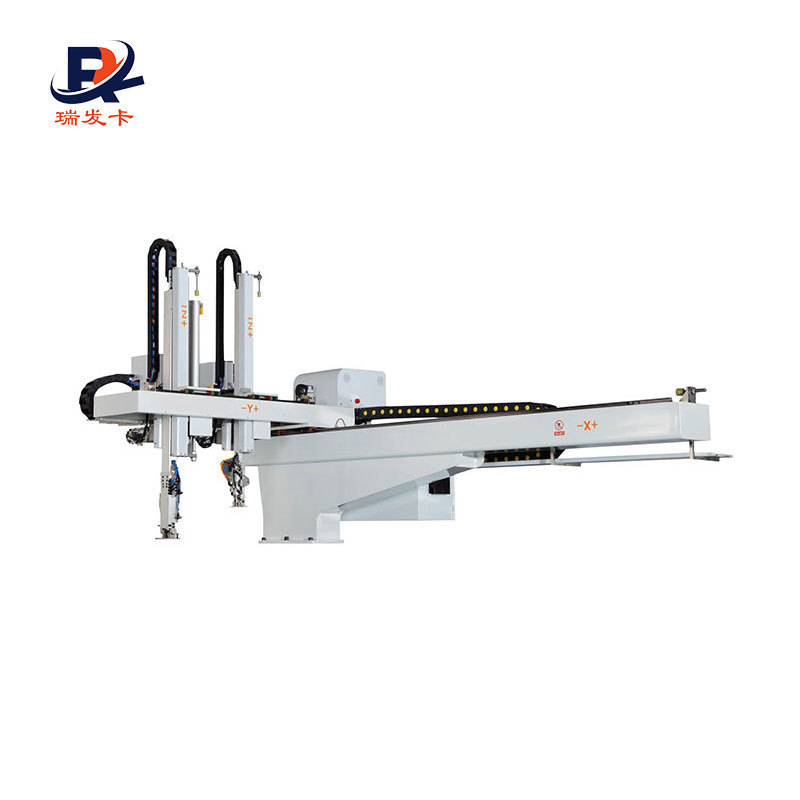

Single Axis Servo Motor Robot Manipulator for Injection
HB series robot arm is used for the removal of finished products and nozzles of various plastic horizontal molding machines of 50-500T. It adopts main arm and jib. The arm type has single-cut and double-cut type; at the same time, the finished product and the material head; Driven from 700-1000mm for cylinders. The horizontal axis standard is driven by a variable frequency motor and can be driven by an AC servo motor. Up and down, drawing for cylinder drive, saving costs. The installation of HB series robots can increase production capacity (20%-30%) and reduce product defect rate. Safeguard the safety of operators, reduce labor, accurately control production, and reduce waste
|
Model |
HBVM-600 |
|
Size (length × width × height) |
1845*1330*1380mm |
|
Power Source |
AC220V ±10V 50/60 HZ |
|
Working Pressure |
5Kgf/cm ² 0.49Mpa |
|
Max.AllowedPressure |
8Kgf/cm ² 0.8Mpa |
|
Drive System |
Zcustom made X.Y Pneumatic Cylinder |
|
Swivel |
90 °Fixed Pneumatic |
|
Control System |
HS80 HS48 |
|
Power Capacity |
1.5/2KVA |
|
Recommendedl.M.M. |
80-200ton |
|
Traverse Stroke |
1300mm |
|
Crosswise Stroke |
S3:P:500R:100mm S5:P:500R:300mm |
|
Vertical Stroke |
700mm |
|
Max.Loading |
5Kg |
|
Dry Take Out Time |
0.6s |
|
Dry Cycle Time |
4.8s |
|
Air Consumption |
3NI/cycle |
|
Net Weight |
185-235Kg |
Robot standard export wooden box packaging
