Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amplitec
-
Processor:
-
AR9531 chip
-
Standard:
-
IEEE802.11b/g/n
-
Modulation:
-
802.11a/b/g/n/TDMA+ private protocol
-
Carrier frequency:
-
2300MHz-2700MHz adjustable
-
Carrier bandwidth:
-
20/40 optional
-
Wireless rate:
-
300Mbps
-
Transmission distance:
-
1KM
Quick Details
-
Chipset:
-
AR9531
-
Application:
-
point-to-multipoint/point to point
-
Model Number:
-
AWB-812-L10
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amplitec
-
Processor:
-
AR9531 chip
-
Standard:
-
IEEE802.11b/g/n
-
Modulation:
-
802.11a/b/g/n/TDMA+ private protocol
-
Carrier frequency:
-
2300MHz-2700MHz adjustable
-
Carrier bandwidth:
-
20/40 optional
-
Wireless rate:
-
300Mbps
-
Transmission distance:
-
1KM

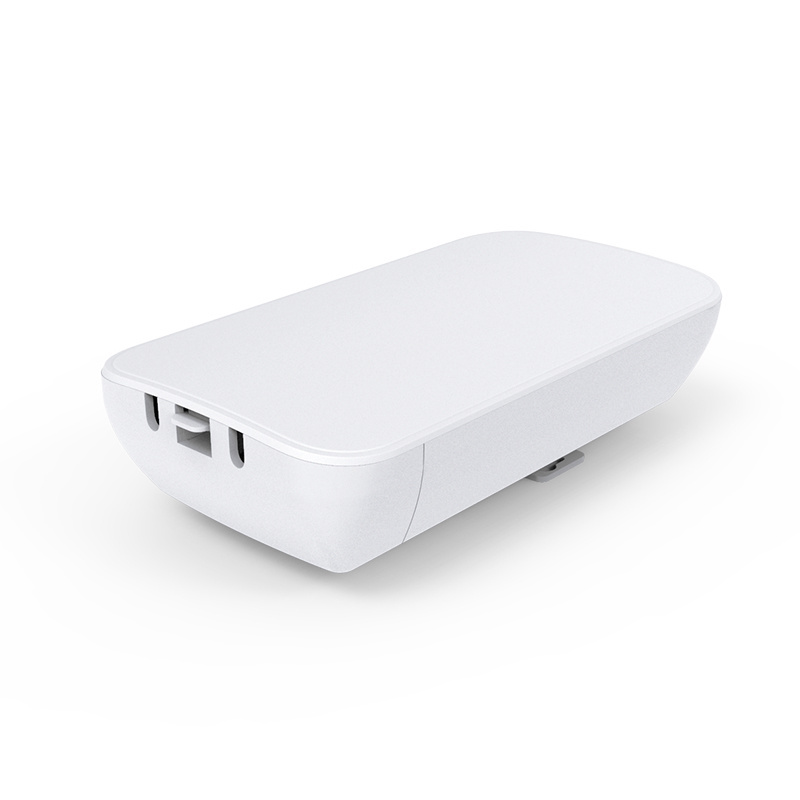

Product Show
Product Paramenters
|
Product Model
|
AWB-812-L10
|
|
|
|
|||
|
Network Protocol
|
Management tools to automatically search for IP addresses;
Web management |
|
|
|
|||
|
Wireless Transmission Distance
|
1000 meters
|
|
|
|
|||
|
Support Capacity
|
10 channel 2M stream IPC
|
|
|
|
|||
|
Networking Method
|
Point to point
|
|
|
|
|||
|
Wireless Standards
|
IEEE 802.11b/g/n（2*2 MIMO 300 Mbps）
|
|
|
|
|||
|
Working Frequency
|
2300MHz～2700MHz
|
|
|
|
|||
|
Antenna Angle
|
Half-power beamwidth：65° ± 5°
|
|
|
|
|||
|
Reception Sensitivity
|
87 ± 2dB @11Mbps
|
|
|
|
|||
|
Maximum Air Interface
Transmission Rate |
≤ 300 Mbps
|
|
|
|
|||
|
Network Interface Type
|
1 RJ45 ,10/100 Mbps self-adaptive
|
|
|
|
|||
|
Channel Width
|
20/40 MHz
|
|
|
|
|||
|
Working Scenes
|
Apartment complex/ Parks/ Factories
|
|
|
|
|||
|
Security Mode
|
WPA2-PSK
|
|
|
|
|||
|
Security Mechanisms
|
Hide the wireless network name
|
|
|
|
|||
|
Network Mode
|
Bridging
|
|
|
|
|||
|
Management Approach
|
Web,client
|
|
|
|
|||
|
System Logs
|
System log information printing
|
|
|
|
|||
|
Software Updates
|
Web,Client Updates
|
|
|
|
|||
|
Power Input
|
5 VTYPE-C, 2A
|
|
|
|
|||
|
Power Consumption
|
≤6W
|
|
|
|
|||
|
Overall Dimensions
|
200mm × 110mm × 53 mm
|
|
|
|
|||
|
Weight
|
300 g (single device itself only)
|
|
|
|
|||
|
Working Temperature
|
-30℃~70℃
|
|
|
|
|||
|
Working Humidity
|
5% RH～95% RH Non-condensing
|
|
|
|
|||
|
Storage Temperature
|
-40℃~80℃
|
|
|
|
|||
|
Storage Humidity
|
5% RH～95% RH Non-condensing
|
|
|
|
|||
|
Installation Method
|
Wall-mounted, pole type
|
|
|
|
|||
|
Power Supply Method
|
12-24V DC 1 A power adapter + PoE power supply
|
|
|
|
|||
