Quick Details
-
Brand Name:
-
huahong
-
Weight:
-
800 KG
-
installation:
-
offer foundation drawing
-
color:
-
As your demand
-
motor:
-
Chinese famous brand or as request
-
Export markets:
-
South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
-
Max feeding size:
-
125 mm
-
Factory Visit:
-
Welcomed Warmly
Quick Details
-
Application:
-
rock crushing
-
Capacity(t/h):
-
2-5 t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
huahong
-
Weight:
-
800 KG
-
installation:
-
offer foundation drawing
-
color:
-
As your demand
-
motor:
-
Chinese famous brand or as request
-
Export markets:
-
South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
-
Max feeding size:
-
125 mm
-
Factory Visit:
-
Welcomed Warmly
hot!!! China manufactorer made mini rock cushing machine for sale,small jaw cusher/stone crusher with factory price!!!
Jaw Crusher application:
Jaw Crusher can reach the crushing ratio of 4-6 and the shape of final product is even.Mini Jaw Crushers are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Jaw crushers can be used in mining, metallurgical industry, construction, road and railway building, water conservancy, chemistry, etc.
Jaw Crusher Features:
1. Jaw crusher is simple structure, easy maintenance;
2. Jaw crusher is stable performance;
3. Jaw crusher is even final particles and high crushing ratio.
PEF 150*250 jaw crusher display in factory
The eccentric shaft and bearing whit high strength steel.
The moving jaw plate and fixed jaw plate
The jaw crusher with AC motor

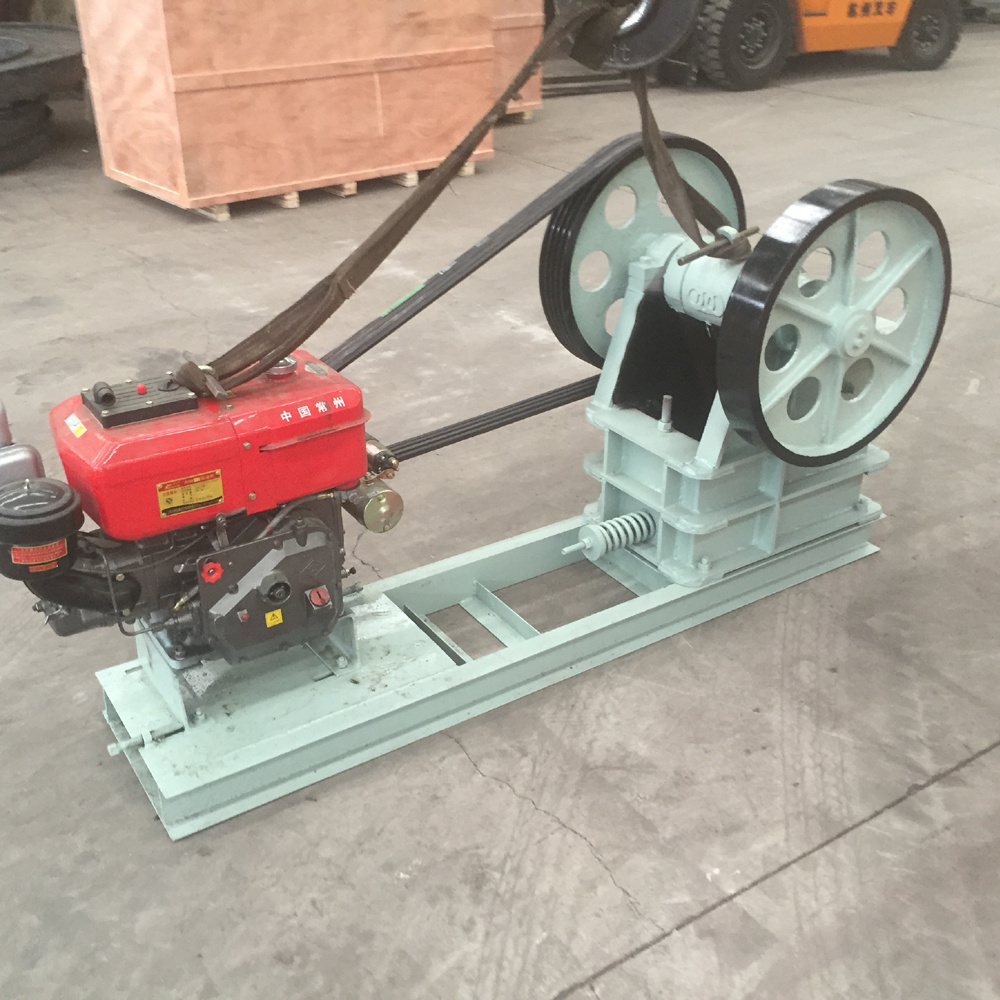

The mobile jaw crusher with ZS1115 desel engine
Diesel engine drived jaw crusher with vibrating screen,belt conveyor and hopper
Removable trailer mounting jaw crusher with belt conveyor
Technical Data
|
Certification and type |
Max.feed lunp size (mm) |
Adjustment range (mm) |
Production capacity (m 3 ⁄h) |
Maine shaft speed (r/min) |
Motor power | Weight |
| PEF150×250 | 125 | 10—40 | 1—3 | 285 | 7.5 | 700 |
| PEF200×300 | 165 | 20—70 | 2—8 | 265 | 11 | 800 |
| PEF250×400 | 210 | 20—80 | 5—20 | 310 | 15—18.5 | 3000 |
| PEF400×600 | 340 | 40—90 | 10—40 | 275 | 30 | 7200 |
| PEF350×750 | 290 | 30—55 | 20—50 | 300 | 37 | 8900 |
| PEF500×750 | 425 | 50—100 | 34—68 | 275 | 55 | 11320 |
| PEF600×900 | 480 | 75—200 | 40—120 | 255 | 75 | 17600 |
| PEF750×1060 | 630 | 80—200 | 80—160 | 250 | 90 | 30530 |
| PEF900×1200 | 750 | 100—200 | 110—200 | 250 | 110 | 50000 |
| PEF1000×1200 | 850 | 195—265 | 315—500 | 200 | 110 | 55000 |
| PEF1200×1500 | 1020 | 150—300 | 400—800 | 180 | 160 | 100000 |
| PEX150×750 | 125 | 10—40 | 5—15 | 300 | 15 | 3600 |
| PEX250×1000 | 210 | 15—55 | 10—32 | 300 | 30—37 | 7350 |
| PEX250×1200 | 210 | 15—60 | 12—38 | 300 | 37 | 8700 |
| PEX300×1300 | 250 | 20—90 | 16—65 | 300 | 55 | 11600 |
Packaging Detail:
All the cargos are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
