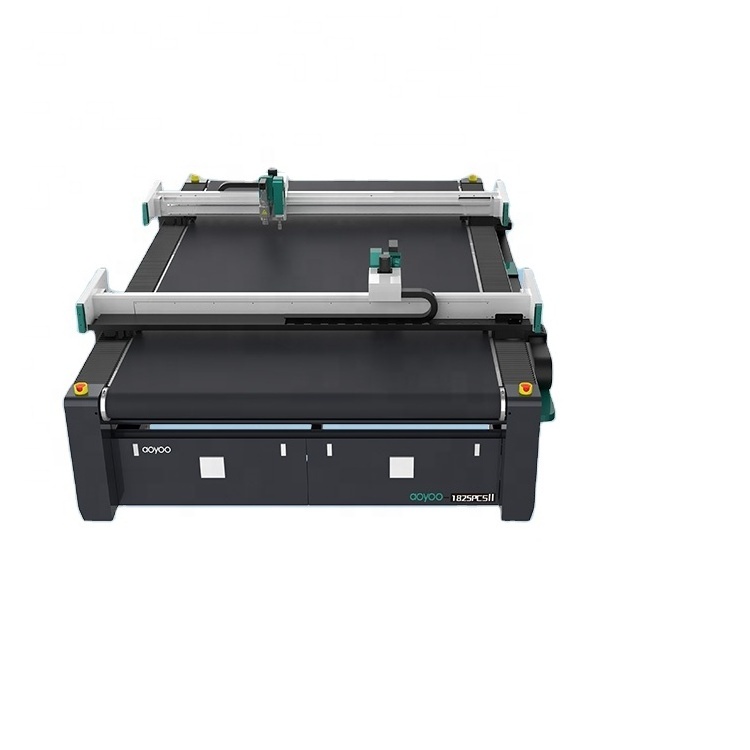

The aoyoo
multifunction
cnc auto loading oscillating vibrating automatic garment carton paper box cutting machine digital leather/cloth/fabric/textile/carton/paper/corrugated box knife cutter used for cutting carton box sunscreen fabrics and other fabrics for blinds.
Using the Swiss cutting system, the cut section is straight and tidy, no fray, no scorch, no fluffy and no color fading off.
The cutting tool can be cut in different ways by adjusting the type of the cutter according to the thickness of the fabric.
Simple selection of tooling via push button, or by remote control
With electricity and roller feeding system
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOYOO
-
Voltage:
-
380V±10%/220V±10% Optional
-
Dimension(L*W*H):
-
2300*3560*1221mm
-
Power (kW):
-
11kw
-
Weight (KG):
-
1240 KG
-
name:
-
foam cutting knife machine
-
safety devices:
-
Safety devices use infrared sensing, safe and reliable
-
Cutting thickness:
-
≤50mm Other thicknesses can be customized according to the material
-
Material fixing method:
-
Vacuum partition adsorption
-
Transmission port:
-
Network port
-
Transmission system:
-
Yaskawa servo motor, linear linear guide, timing belt, lead screw
-
Control System:
-
Chinese and English LCD touch screen
-
Operating environment:
-
Operating environment Temperature 0-40°C Humidity 20%-80%RH
-
Support file format:
-
AI,PLT,DXF,CDRetc
-
Overall size:
-
3570x2290x1165mm
Quick Details
-
Max.Product Size(L)(mm):
-
2500 mm
-
Max.Product Size(W)(mm):
-
1600 mm
-
Max.Product Size(H)(mm):
-
1221 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOYOO
-
Voltage:
-
380V±10%/220V±10% Optional
-
Dimension(L*W*H):
-
2300*3560*1221mm
-
Power (kW):
-
11kw
-
Weight (KG):
-
1240 KG
-
name:
-
foam cutting knife machine
-
safety devices:
-
Safety devices use infrared sensing, safe and reliable
-
Cutting thickness:
-
≤50mm Other thicknesses can be customized according to the material
-
Material fixing method:
-
Vacuum partition adsorption
-
Transmission port:
-
Network port
-
Transmission system:
-
Yaskawa servo motor, linear linear guide, timing belt, lead screw
-
Control System:
-
Chinese and English LCD touch screen
-
Operating environment:
-
Operating environment Temperature 0-40°C Humidity 20%-80%RH
-
Support file format:
-
AI,PLT,DXF,CDRetc
-
Overall size:
-
3570x2290x1165mm
Products Description
Machine description
Product Paramenters
|
Technical parameters / model
|
AOYOO-1625
|
|
Effective working area
|
1600x2500mm
|
|
Multi-function tool
|
Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high
power active round knife |
|
safety devices
|
Safety devices use infrared sensing, safe and reliable
|
|
Cutting speed
|
200-2000mm/s
|
|
Cutting thickness
|
≤50mm Other thicknesses can be customized according to the material
|
|
Applicable materials
|
Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass,
PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material |
|
Material fixing method
|
Vacuum partition adsorption
|
|
Transmission port
|
Network port
|
|
Transmission system
|
Yaskawa servo motor, linear linear guide, timing belt, lead screw
|
|
rated power
|
11kw
|
|
Rated voltage
|
380V±10%/220V±10% Optional
|
|
Control System
|
Chinese and English LCD touch screen
|
|
Operating environment
|
Operating environment Temperature 0-40°C Humidity 20%-80%RH
|
|
Support file format
|
AI,PLT,DXF,CDRetc
|
|
Overall size
|
2300*3560*1221mm
|
Machine Advantage
1.Fast
Max cutting speed: 1200mm/s
Aoyoo cutting machine is 3 to 5 times faster than traditional manual cutting.
2. Material Saving
Machines are computerized accurate and material saving.
3. Compatible
Our cutting machines support any design software which can output files in DXF or PLT format.
Eg: AutoCad, Coreldraw, AI, etc.
4.User friendly
All the sharp turnings can be controlled on the machine.
A free training is supported at our company or on your site. We assure you can operate the machine.
Max cutting speed: 1200mm/s
Aoyoo cutting machine is 3 to 5 times faster than traditional manual cutting.
2. Material Saving
Machines are computerized accurate and material saving.
3. Compatible
Our cutting machines support any design software which can output files in DXF or PLT format.
Eg: AutoCad, Coreldraw, AI, etc.
4.User friendly
All the sharp turnings can be controlled on the machine.
A free training is supported at our company or on your site. We assure you can operate the machine.
Details Images
Cutting tools
Samples display
high quality honeycomb carton board sticker digital cutting machine with ce of Application industry
The aoyoo cnc auto loading oscillating vibrating automatic garment cutting machine digital leather/cloth/fabric/textile knife cutter widely used for cut fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.
