Quick Details
-
Brand Name:
-
xindabaihui
-
Dimension(L*W*H):
-
224*224*430
-
Weight:
-
3.5
-
Product name:
-
liquid nitrogen container
-
Keywords:
-
tank
-
MOQ:
-
1set
-
Advantage:
-
good insulation
-
Feature:
-
low temperature
-
Application:
-
Gas
-
Material:
-
Aluminum Alloy
-
Usage:
-
Store
-
Color:
-
White
Quick Details
-
Capacity:
-
3.15l
-
Max Working Pressure(MPa):
-
0 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
xindabaihui
-
Dimension(L*W*H):
-
224*224*430
-
Weight:
-
3.5
-
Product name:
-
liquid nitrogen container
-
Keywords:
-
tank
-
MOQ:
-
1set
-
Advantage:
-
good insulation
-
Feature:
-
low temperature
-
Application:
-
Gas
-
Material:
-
Aluminum Alloy
-
Usage:
-
Store
-
Color:
-
White

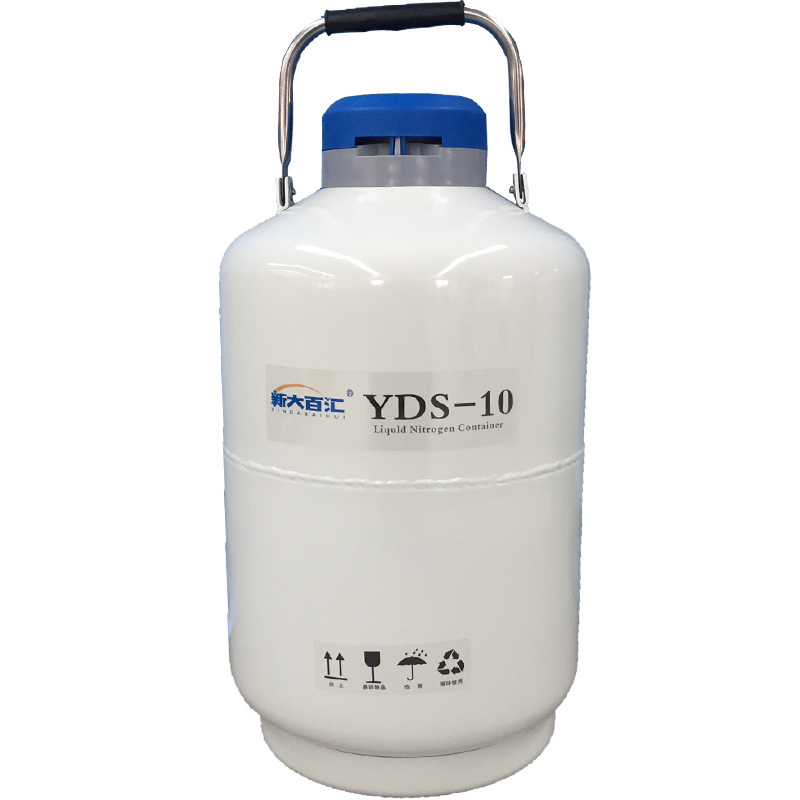

Product Overview
YDS-
series
YDS-series products are mainly made up of outer shell, inner vessel, neck tube, multi-layer isolating material and canisters.
We are proud to sell a variety of cryogenic tanks, including models with or without casters. The reliable nitrogen tanks sold protect your samples. Choose the most popular size in the industry today. Each liquid nitrogen storage tank is clearly marked as 2 to 100 liters. When you have a unique application for LN2 storage tanks, Xindabaihui will provide you with solutions.
|
1
|
Product Model
|
YDS-3
|
YDS-2-50
|
YDS-5-200
|
YDS-10
|
|
|
2
|
Volume(L)
|
3.15l
|
2
|
5
|
10
|
|
|
3
|
Neck Diameter(≤mm)
|
50
|
50
|
200
|
50
|
|
|
4
|
Outside Diameter(≤mm)
|
224
|
224
|
284
|
305
|
|
|
5
|
Height(≤mm)
|
420
|
360
|
350
|
550
|
|
|
6
|
Empty weight(≤Kg)
|
3.4
|
2.9
|
4.8
|
6.2
|
|
|
7
|
Evaporation Rate(L/d)
|
0.1
|
0.1
|
2.5
|
0.12
|
|
|
8
|
Static Holding Time(d)
|
31
|
23
|
91
|
110
|
|
YDS-series products are mainly made up of outer shell, inner vessel, neck tube, multi-layer isolating material and canisters.
1.The outer shell and inner vessel are made of the aluminum alloy plate featuring light weight, high cryogenic strength and
corrosion resistance.
2.The neck tube is made of glass-fiber reinforced plastics featuring of high mechanical strength and low heat conductivity.
3.The multi-layer insulation is composed of the reflecting screen of aluminum foils with high reflectivity and insulation material with low heat conductivity and low gas-passing speed to reduce heat radiation.
4.The jacket between the outer shell and inner vessel is of high vacuum to prevent thermal convection. Moreover, an adsorbent with a high adsorbing capacity at the cryogenic temperature is used to ensure the long-term stable and reliable performance of the dewar with more than five-year life service.
1.The outer shell and inner vessel are made of the aluminum alloy plate featuring light weight, high cryogenic strength and
corrosion resistance.
2.The neck tube is made of glass-fiber reinforced plastics featuring of high mechanical strength and low heat conductivity.
3.The multi-layer insulation is composed of the reflecting screen of aluminum foils with high reflectivity and insulation material with low heat conductivity and low gas-passing speed to reduce heat radiation.
4.The jacket between the outer shell and inner vessel is of high vacuum to prevent thermal convection. Moreover, an adsorbent with a high adsorbing capacity at the cryogenic temperature is used to ensure the long-term stable and reliable performance of the dewar with more than five-year life service.
Similar Recommendation
Detail display
Product Application
Note: These tanks are shipped empty. Customers will need to obtain their own Liquid Nitrogen. Liquid Nitrogen is extremely cold and if it touches your skin, you will be burned. Please consider buying Cryogen Protective Gloves which are offered on our store.
Product Paramenters
Packing & Delivery
Usually We send the goods by air, small order is best to choose international express, such as
EMS,UPS,TNT,e-EMS,FedEx-IE,FedEx-IP, Aramex is better for middle east etc. Big orders are suitable for the delivery by sea.
EMS,UPS,TNT,e-EMS,FedEx-IE,FedEx-IP, Aramex is better for middle east etc. Big orders are suitable for the delivery by sea.
