Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
HengBiao
-
Model Number:
-
3RP
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
1HP-30HP
-
Cable Length:
-
Depending on the type
-
Outlet Size:
-
25mm-100mm
-
Power:
-
0.75KW-22KW
-
Theory:
-
Positive Displacement Pump
-
Product name:
-

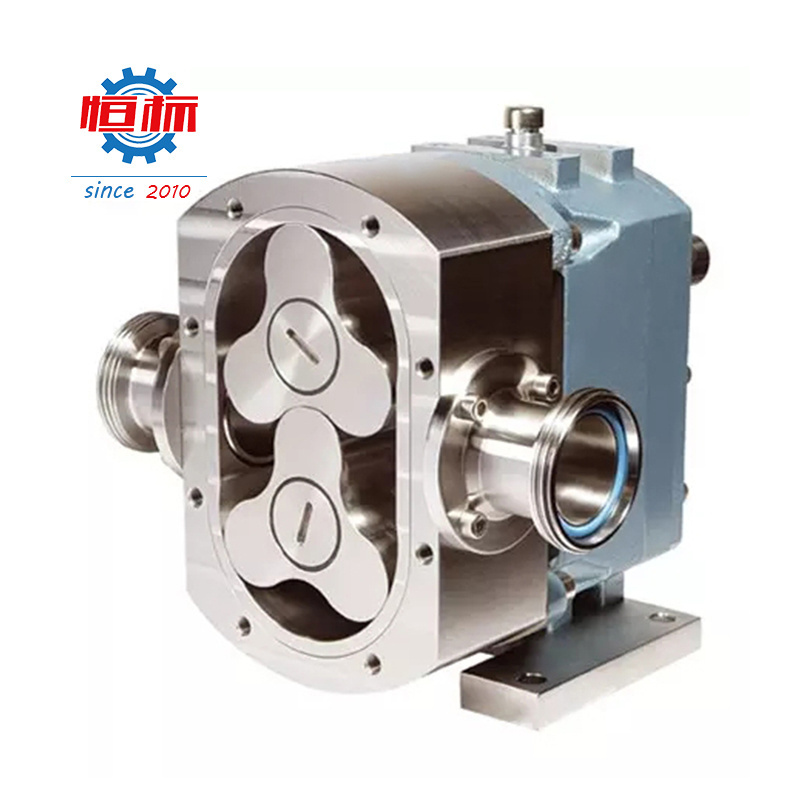

sanitary stainless steel rotary lobe pump
-
Connection:
-
Flange, screw or clamp
-
Seal:
-
Mechnical Seal/PTFE
-
Rotor type:
-
Tri-lobe, butterfly lobe, multiple-lobe
-
Material:
-
Stainless Steel 304/316/316L
-
Motor:
-
ABB, Simens, China Domestic brand
-
Frequency:
-
50 /60 Hz
-
Certification:
-
ISO9001
-
Application scope:
-
dairy,food,beverage,pharmacy,cosmetic,etc.
Quick Details
-
Application:
-
Biofuel Industry, Drinking water treatment, Food and Beverage Industry, Pharmaceutical industry
-
Pressure:
-
High Pressure
-
Voltage:
-
220V-480V, 220V/380V/440V
-
Warranty:
-
1 years
-
Brand Name:
-
HengBiao
-
Model Number:
-
3RP
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
1HP-30HP
-
Cable Length:
-
Depending on the type
-
Outlet Size:
-
25mm-100mm
-
Power:
-
0.75KW-22KW
-
Theory:
-
Positive Displacement Pump
-
Product name:
-
sanitary stainless steel rotary lobe pump
-
Connection:
-
Flange, screw or clamp
-
Seal:
-
Mechnical Seal/PTFE
-
Rotor type:
-
Tri-lobe, butterfly lobe, multiple-lobe
-
Material:
-
Stainless Steel 304/316/316L
-
Motor:
-
ABB, Simens, China Domestic brand
-
Frequency:
-
50 /60 Hz
-
Certification:
-
ISO9001
-
Application scope:
-
dairy,food,beverage,pharmacy,cosmetic,etc.
Character:
1 ,There is a certain gap between rotor and rotor, no friction coefficient ,so pump have a long service life time .
2, It is easy to install and disassemble, and it is convenient to maintain, clean .There is less wearing parts.
3 , High efficiency and energy saving, stable transportation, low failure rate, no leak sealing and low noise.
4, The viscosity of the transportable medium is ≤ 20 00000 cp, and the pump can transfer slurry containing 70% solids.
5, It can transport gas, liquid and solid three-phase mixture materials.
6, With VFD , the flow can be adjusted at will, and the pump can be used as a general metering pump.
7, If need,we can do the pump with heating jacket .
8, Applicable temperature: -50 °C - 250 °C .
9 , Types of inlet/outlet Connection: Flange joint,Threaded Connection; Q uick Connection .
10,Seal type: Mechanical Seal and Packing Seal.
Lobe Pump Scope Of Application:
Dairy products
: yogurt, cream, ice cream, cheese and whey.
Beverages
: beer, wort, yeast, soft drinks, fruit concentrates, fruit drinks.
Food
: tomato sauce, vegetable paste, seasoning, sweeteners, yeast paste, salad, meat emulsion, edible oil.
Candy
: honey, syrup, cream stuffing, fruit puree, fruit filling, pudding, jam, jelly, chocolate.
Cosmetics
: creams and lotions, hair gels, hair dyes, essential oils.
Drugs
: Pill, extract, emulsion, paste.
Chemicals
: fats, solvents, resins and polymers, dyes...
|
HEBEI SHENGHUI PUMP CO.,LTD |
||||
|
Iteam |
Medium |
Viscosity Range(cp) |
Media Characteristics |
Select for lobe pump |
|
1 |
Chocolate (liquid) |
3,000-20,000 |
High viscosity with crystal,
|
Mechanical seal ,
|
|
2 |
Syrup |
1,000-20,000 |
High viscosity,
|
Lower speed,
|
|
3 |
Maltose |
3,000-20,000 |
High viscosity,
|
Lower speed,
|
|
4 |
Molasses |
2,000-100,000 |
High viscosity,
|
Lower speed,
|
|
5 |
Honey |
2,000-10,000 |
High viscosity,
|
Lower speed,
|
|
6 |
Sucrose |
10-5,000 |
High viscosity with crystal,
|
Bi-wing rotor,
|
|
7 |
Beet Sugar |
100-8,000 |
High viscosity,
|
Lower speed,
|
|
8 |
For other liquids, please contact the sales staff |
|||
|
Model |
Flow (L/100r) |
Pressure (bar) |
Inlet/outlet Size
|
Rev
|
Medium Viscosity (cp) |
|
3RP-25 |
6 |
≤10 |
25 |
≤600
|
1-2000000
|
|
3RP-32 |
9 |
≤10 |
32 |
||
|
3RP-40 |
18 |
≤10 |
40 |
||
|
3RP-50 |
36 |
≤10 |
50 |
||
|
3RP-65 |
60 |
≤10 |
65 |
||
|
3RP-80 |
105 |
≤10 |
80 |
||
|
3RP-100A |
125 |
≤10 |
100 |
||
|
3RP-100 |
150 |
≤10 |
100 |
||
| 3RP-125 | 250 | ≤10 | 125 |
