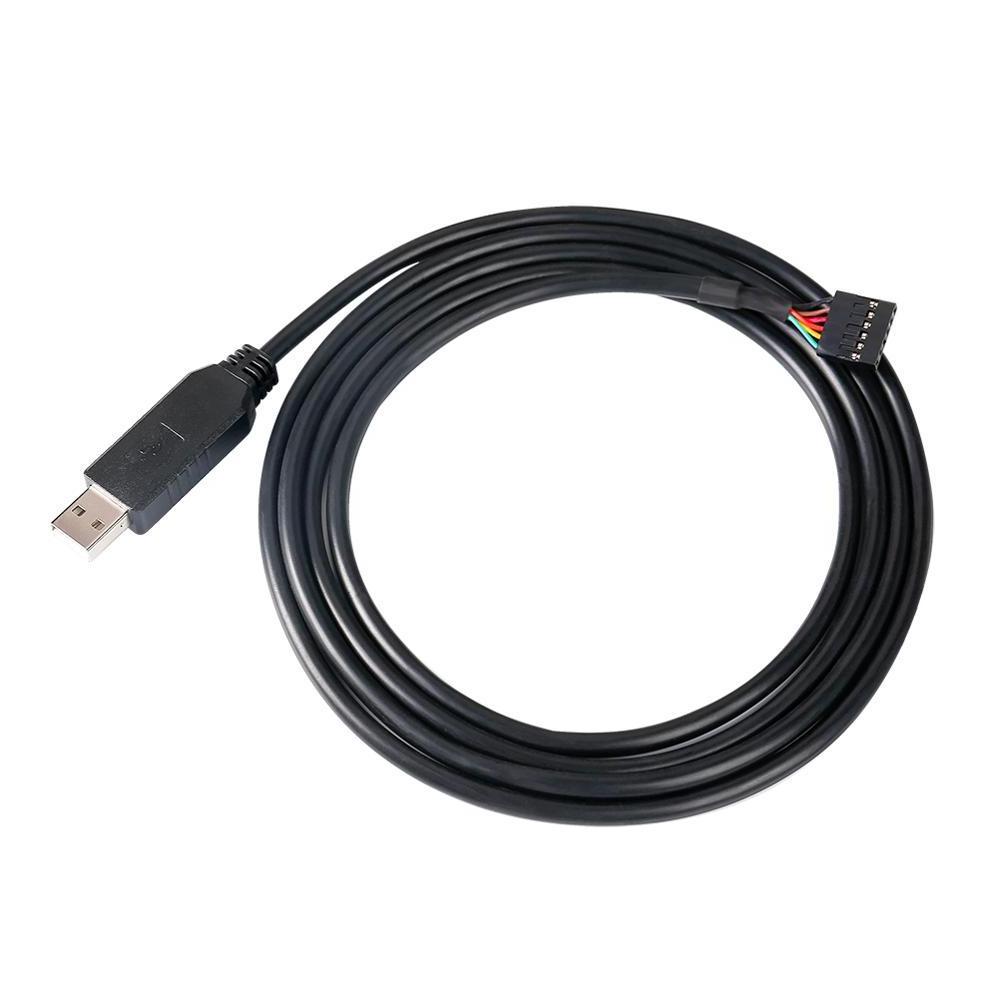

DTECH FTDI USB to TTL Serial 3.3V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Window 10 8 7 Li

DTECH USB to TTL serial UART converter cable provides a fast, simple way to connect devices with a 3.3V TTL level serial interface to USB port. It integrates FTDI FT232RL USB to serial UART interface IC device, which handles all the USB signals and protocols.

The FT232RL chip used is housed within the USB A connector. The cable is terminated with a 6 way 0.1 inch pitch header socket which provides access to the transmit (Tx), receive (Rx), RTS#, and CTS#, VCC and GND connections.

The converter required USB drivers, available from http://www.ftdichip.com, which are used to make the FT232R on the PCB appear as virtual COM port(VCP driver). It allows users to communicate with the USB interface via a standard PC serial emulation port. Another driver it support is D2XX driver, can also be used with application software to directly access the FT232R on the PCB though a DLL application programming interface. This is illustrated in the following diagram:

FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID ™ security dongle feature. Asynchronous and synchronous bit bang interface modes are available. USB to serial interface designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.

FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz and 48MHz) can be taken out from the device and used to drive a microcontroller or external logic. A unique number (FTDIChip-ID ™ ) is written into the device during manufacture and is readable over USB, to make it as a security dongle, which can be used to protect customer application software from being copied.

1. Features

l USB 2.0 full speed, back compatible with USB1.1, USB1.0

l FT232RL chip on board, supports FTDI drivers (VCP and DX22)

l PCB board pinout: TXD, RXD, CTS, RTS, VCC, GND

l UART interface supports 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity

l Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking

l Serial data transfer rates up to 3M

l Internal EEPROM with users writable area

l Data signal levels: +3.3v or +5v

l Support FT232R FTDICHIP-ID feature for improve security

l Support VID, PID and other reprogrammed function

l USB bus powered, no extra power required

l Low PC USB bandwidth consumption

l Range -104 ℉ to +185 ℉ operation temperature
