Quick Details
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Granfoo
-
Model Number:
-
GLF-UDC-4K1200
-
Sensor:
-
other
-
Product name:
-

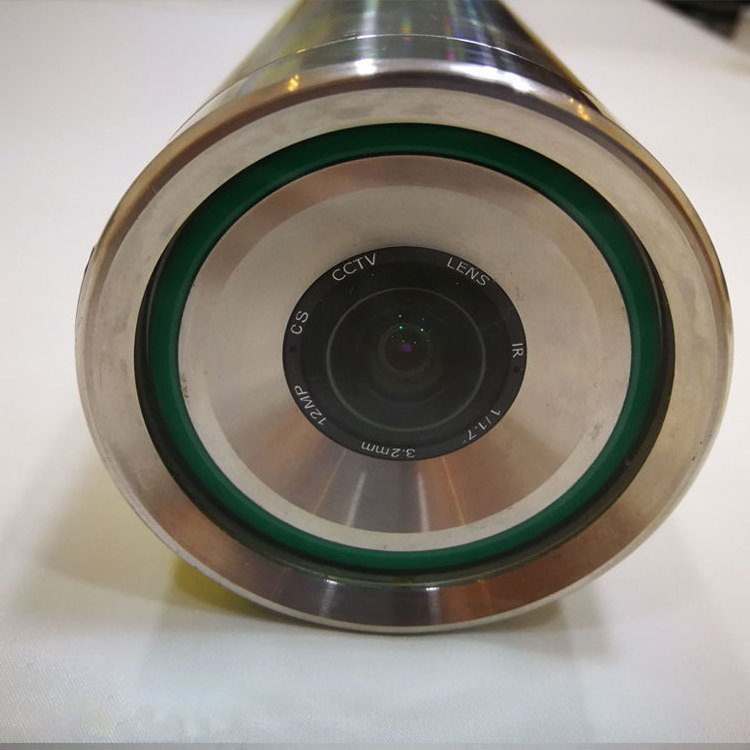

Underwater HD 4k network Camera
-
Model:
-
GLF-UDC-4K1200
-
Image sensor:
-
1/1.7" Progressive Scan CMOS
-
Day-night conversion mode:
-
Photosensitive Detection / Video Detection / Time Detection
-
Video compression standard:
-
H.265+/H.265/H.264/MJPEG
-
Audio Ccompression format:
-
G.711a/ G.711u/G.726
-
MOQ:
-
1PC
-
View angel:
-
90 degree
-
Delivery time:
-
5 to 16 Days
-
Dimensions:
-
65mm(D)x170mm(L) Excluding Connector
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Temperature Measurement
-
Network:
-
ONVIF, Ip
-
Function:
-
Waterproof / Weatherproof, Wide Angle, NIGHT VISION
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Granfoo
-
Model Number:
-
GLF-UDC-4K1200
-
Sensor:
-
other
-
Product name:
-
Underwater HD 4k network Camera
-
Model:
-
GLF-UDC-4K1200
-
Image sensor:
-
1/1.7" Progressive Scan CMOS
-
Day-night conversion mode:
-
Photosensitive Detection / Video Detection / Time Detection
-
Video compression standard:
-
H.265+/H.265/H.264/MJPEG
-
Audio Ccompression format:
-
G.711a/ G.711u/G.726
-
MOQ:
-
1PC
-
View angel:
-
90 degree
-
Delivery time:
-
5 to 16 Days
-
Dimensions:
-
65mm(D)x170mm(L) Excluding Connector
|
Model No. |
GLF-UDC- 4K1200 |
|
Image s ensor |
1/1.7" Progressive Scan CMOS |
|
Chip |
Hass C hip Hi3519V101 |
|
Electronic s hutter |
1/25s~1/10000s |
|
SIGNAL-NOISE RATIO |
≥ 50dB (AGC OFF) |
|
Day-night c onversion m ode |
Photosensitive D etection / V ideo D etection / T ime D etection |
|
Wide d ynamic r ange |
≥ 80dB |
|
Noise r eduction |
3D Digital Noise Reduction |
|
Video c ompression s tandard |
H.265+/H.265/H.264/MJPEG |
|
H.265 e ncoding t ype |
Main Profile |
|
Video b it r ate |
32 Kbps~16Mbps |
|
Audio Cc ompression f ormat |
G.711a/ G.711u/G.726 |
|
Image s ettings |
Adjustable brightness, contrast, saturation, sharpness, white balance; AWB(auto white balance), AGC(automatic gain), AE(automatic exposure control), AIC (auto iris correction); S upport for privacy zone occlusion; OSD Stacked Plus; I mage R otation: normal 90 ° /270 ° automatic, manual or automatic color to black and other switching methods |
|
Maximum i mage s ize |
4000 × 3000 |
|
Video r esolution |
Main S tream 4000 × 3000/4096 × 2160 4K/3840 × 2160 4K/2592 × 1944 Secondary S tream 720P(1280 × 720)/D1(704 × 576)/VGA(640 × 480) |
|
Video frame rate |
50Hz: 15fps (4000 × 3000, 4096 × 2160), 25fps (3840 × 2160, 1920 × 1080, 1280 × 720) 60Hz: 15fps (4000 × 3000, 4096 × 2160), 30fps (3840 × 2160, 1920 × 1080, 1280 × 720) |
|
Character o verlay |
S upport |
|
Dimensions |
65 mm(D)x170mm(L) Excluding Connector |
|
View angel |
90 degree |
|
Item |
PLC NETWOKR RECEIVER |
|
Power input |
AC85V-245V 50/60HZ |
|
Power output |
DC48V |
|
Max current |
1.2A |
|
Max capacity |
220W |
|
Speed |
200Mbps |
|
Max distance |
600M |
|
Network port |
1*RJ45 |
|
Standard |
IEEE802.11a IEEE802.3u IEEE802.3ab |
|
Compatibility |
200Mbps 300Mbps |
|
Cable required |
>2*0.5² |
|
Shell material |
ABS |
|
Operating temperature |
-20℃ -40 ℃ |
|
Operating h umidity |
10%-90%RH |
|
|
1.8-30MHZ |
|
Dimension |
125*60*40mm |
Similar Model
|
GLF-UDC-4K1200-DT |
Φ 65*170 |
IP Camera, with depth and temperature sensor, without light, 90 FOV |
|
GLF-UDC-4K1200L |
Φ 65*170 |
IP Camera, with light, 90 FOV |
|
GLF-UDC-4K1200L-DT |
Φ 65*170 |
IP Camera, with depth and temperature sensor, with light, 90 FOV |
|
GLF-UDC-4K1200-145 |
Φ 70*170 |
IP Camera, without light, 145FOV |
|
GLF-UDC-4K1200-145DT |
Φ 70*170 |
IP Camera, with depth and temperature sensor, without light, 145FOV |
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 15 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
