Quick Details
-
Rated Lifting Moment:
-
1305kn.m
-
Place of Origin:
-
China
-
Brand Name:
-
zoomlion
-
Weight (KG):
-
40000 kg
-
Applicable Industries:
-
Manufacturing Plant
-
Local Service Location:
-
Egypt
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Rated Loading Capacity:
-
40ton
-
Max. Lifting Height:
-
33.9m
-
Engine Brand:
-
famous brand
-
Rated Lifting Moment:
-
1305kn.m
-
Place of Origin:
-
China
-
Brand Name:
-
zoomlion
-
Weight (KG):
-
40000 kg
-
Applicable Industries:
-
Manufacturing Plant
-
Local Service Location:
-
Egypt
-
After-sales Service Provided:
-
Video technical support
Product Description
Strong lifting performance：
33m long large U-shaped section main boom
Four-wheel multi-mode steering, max. speed 38km/h, max. gradeability is 55%
Stable and reliable：
DONGFENG Cummins engine + DANA transmission + Meritor axles
Mature modular design guarantees its reliability
Comfortable and durable：
New generation panoramic cab with front sliding window and panoramic skylight
Optimized layout with human-friendly design in driver’s cab, enables convenient and comfortable operation

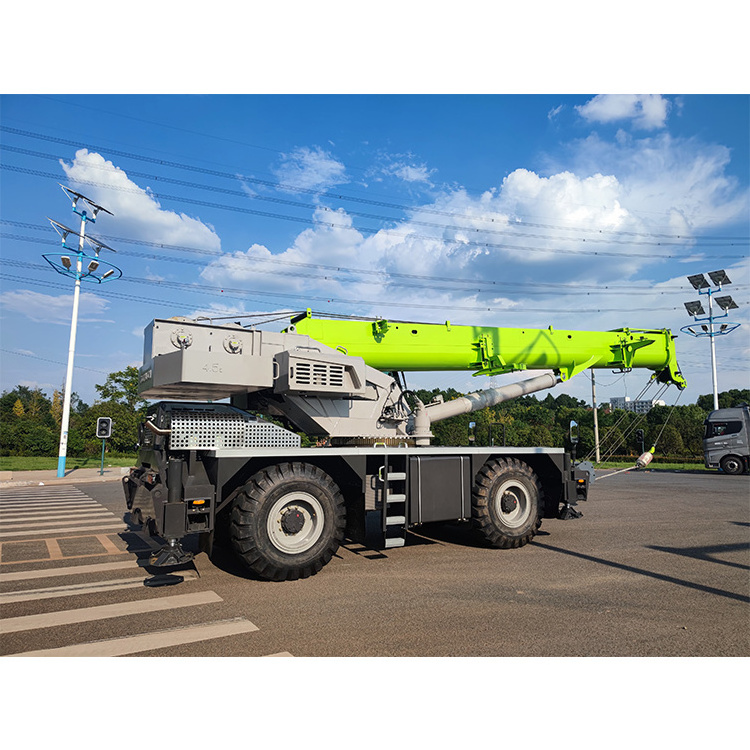

Product pictures
Specification
|
Type
|
Ser. No.
|
Item
|
Unit
|
Value
|
|
Working performance
|
1
|
Max. rated lifting weight × working radius
|
kg.m
|
35000×3.0
|
|
|
2
|
Max. lifting moment of basic boom
|
kN.m
|
1344
|
|
|
3
|
Max.lifting moment of longest boom
|
kN.m
|
870
|
|
|
4
|
Max. lifting height of longest boom
|
m
|
31
|
|
|
5
|
Max. lifting height of jib
|
m
|
46
|
|
Dimensions
|
6
|
Outline dimensions (L×W×H)
|
mm
|
11935×2980×3600
|
|
|
7
|
Distance between outriggers (Longitudinal × transversal)
|
mm
|
6810×6800
|
|
|
8
|
Main boom length (completely retracted – completely extended)
|
mm
|
9800～31000
|
|
|
9
|
Jib length (completely retracted – completely extended)
|
mm
|
9088～15028
|
|
|
10
|
Main boom angle of elevation
|
°
|
-3～78
|
|
|
11
|
Swing range
|
|
360°continuously
|
|
Working speed
|
12
|
Max.speed of single rope on the drum of main winch
|
m/min
|
150
|
|
|
13
|
Boom extension time
|
s
|
70
|
|
|
14
|
Boom retraction time
|
s
|
75
|
|
|
15
|
Boom derricking up time
|
s
|
46
|
|
|
16
|
Boom derricking down time
|
s
|
47
|
|
|
17
|
Swing speed
|
r/min
|
0～2.5
|
|
Hydraulic system
|
18
|
Rated working pressure
|
MPa
|
27
|
|
|
19
|
Rated working flow
|
L/min
|
400
|
|
|
20
|
Hydraulic oil tank capacity
|
L
|
600
|
|
Mass
|
21
|
Complete vehicle kerb mass
|
kg
|
32000
|
|
|
22
|
Front axle load
|
kg
|
15030
|
|
|
23
|
Rear axle load
|
kg
|
16970
|
|
Traveling
|
24
|
Max. traveling speed (forwards / backwards)
|
km/h
|
38/15
|
|
|
25
|
Wheelbase
|
mm
|
3820
|
|
|
26
|
Treads (front / rear)
|
mm
|
2444
|
|
|
27
|
Max. gradeability
|
%
|
57
|
|
|
28
|
Min. turning radius (outer edge of the vehicle body)
|
m
|
6.5
|
|
|
29
|
Min. turning radius (2 wheels)
|
m
|
11.25
|
