Quick Details
-
Brand Name:
-
Gester
-
Model Number:
-
GT-N48
-
Loading Method:
-
Dynamic Load
-
Feature:
-
factory price
-
Rub Stroke:
-
60mm
-
Certificate:
-
CE, ISO
-
Product name:
-
ASTMD5264 Digital Ink Abrasion Rub Tester
-
Keyword:
-
ASTMD5264 Digital Ink Abrasion Rub Tester
-
Rub Load:
-
4.5b(2.04kg)(20N)
-
Rub Area:
-
156mm(L)*50mm(B)
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Gester
-
Model Number:
-
GT-N48
-
Loading Method:
-
Dynamic Load
-
Feature:
-
factory price
-
Rub Stroke:
-
60mm
-
Certificate:
-
CE, ISO
-
Product name:
-
ASTMD5264 Digital Ink Abrasion Rub Tester
-
Keyword:
-
ASTMD5264 Digital Ink Abrasion Rub Tester
-
Rub Load:
-
4.5b(2.04kg)(20N)
-
Rub Area:
-
156mm(L)*50mm(B)
WELCOM TO GESTER
ASTMD5264gital Ink Abras Rub Tester
Application
Applicable to the abrasion resistance test of surface coating layers of printed materials, e.g. ink layer or photosensitive (PS) coating. It could effectively analyze the problems of poor abrasion resistance, ink layer falling off, lower printable force, and bad hardness of coating layers of printed materials.
Feature
1. Adopts silent slide,minimal noise
2. Using wire cutting, the weights work with toggle lever, which is to totally free fall on the specimen.
3. Base-plate adopts Japan-imported 45 # steel,no deformation.
4. Adopts electrostatic spraying technology, no fade
5. Material of weights: 45 # steel plated surface grinding
Standards
GB7706, ASTMD5264, TAPPIT830, JIS5701, ISO9000
Key Specification
|
Model |
GT-N48 |
|
Rub Stroke |
60mm |
|
Rub Load |
4.5b(2.04kg)(20N) |
|
Rub Speed |
21,43,85,106r/min(optional) |
|
Rub Area |
156mm(L)×50mm(B) |
|
Rub Times |
0-999999(automatically stopped, Korea-imported) |
|
Specimen Size |
230mm(L)×60mm(B) |
|
Power |
AC220V40W |

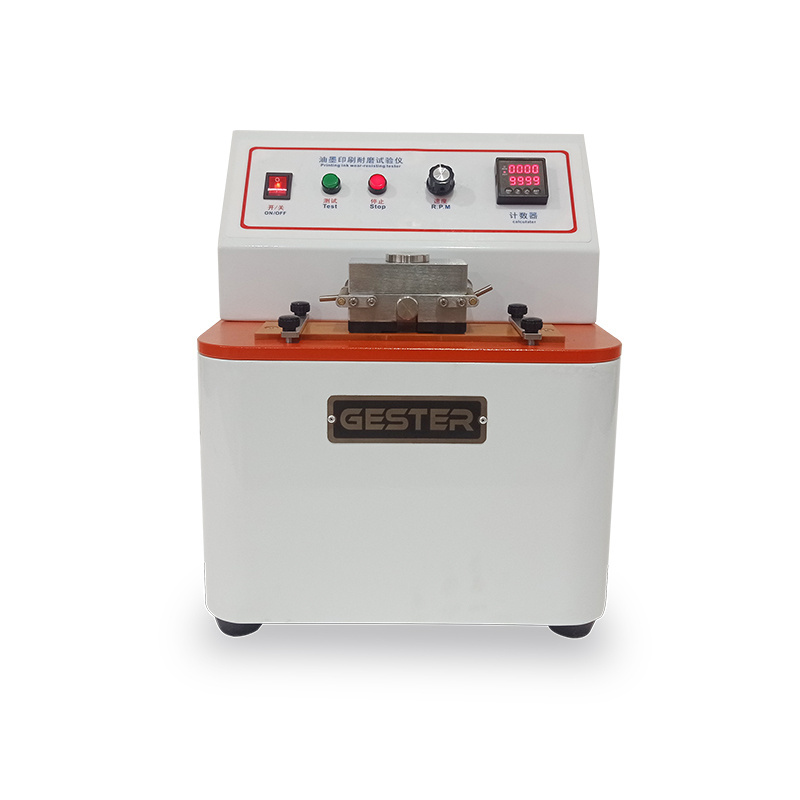

Product Image
