4 Tuner DVB-S2 DVB-C ISDBT to 2 DVB-T 4 DVB-C Transmodulator

FOB Reference Price: Get Latest Price

≥1 Sets

US $400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Tunes:: 3*DVB-S/S2/S2X+1*DVB-S/S2/S2X or 1*DVB-C/T/(T)/ISDB-T

Descrambling:: 2 channels BISS

PID pass-through:: Support

Maximum PID Remapping:: 128 per input channel

Output:: 4 DVB-C or 2 DVB-T RF

Management:: LCD / keyboard and web-based NMS

Quick Details

Place of Origin:: Sichuan, China

Feature:: Demodulating + re-multiplexing +BISS descrambling +modulating

input:: 4 Tuners

Tunes:: 3*DVB-S/S2/S2X+1*DVB-S/S2/S2X or 1*DVB-C/T/(T)/ISDB-T

Descrambling:: 2 channels BISS

PID pass-through:: Support

Maximum PID Remapping:: 128 per input channel

Output:: 4 DVB-C or 2 DVB-T RF

Management:: LCD / keyboard and web-based NMS

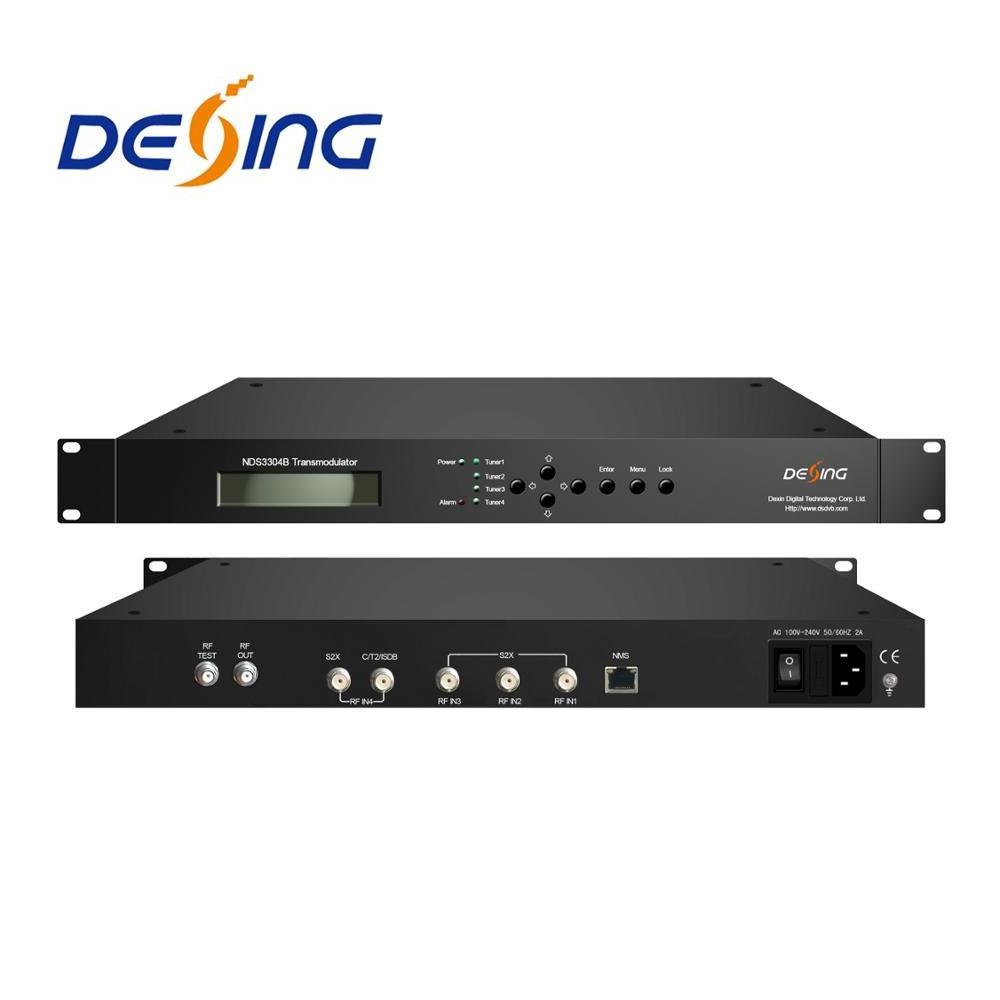

4 Tuner DVB-S2 DVB-C ISDBT to 2 DVB-T 4 DVB-C Transmodulator

Outline

NDS3304B is a cost-effective DVB-C/T Transmodulator developed according to DVB-C and DVB-T standard. It supports 4 Tuners input . After demodulating, re-multiplexing, then it gives 4 DVB-C RF or 2 DVB-T RF out. BISS function is also embedded to descramble multiplexed programs. With the features of low cost and high performance, it provides various solutions for operators to re-distribute contents.

Key Features

l Demodulating + re- multiplexing +BISS descrambling +modulating in one box

l Support 4 Tuner input ( 3*DVB-S/S2/S2X+1*DVB-S/S2/S2X or 1*DVB-C/T/(T)/ISDB-T)

l Support BISS descrambling (up to 60Mbps)

l Support 4 DVB-C RF or 2 DVB-T RF out

l Support PID pass-through

l LCD / keyboard and web-based NMS operations and upgrade via web

Working Principle

DVB-T RF out

DVB-C RF out

Specifications

Input		4 Tuner input (3DVB-S/S2/S2X+1DVB-S/S2/S2X or 1*DVB-C/T/(T)/ISDB-T)
Tuner Section	Multi-mode tuners switchable	DVB-C	Input Frequency			60 ~890 MHz
			Standard			J.83A (DVB-C), J.83C		J.83B
			Constellation			16/32/64/128/256 QAM		64/256 QAM
		DVB-T/(T)	Input Frequency			60 ~890 MHz
			Bandwidth			5/6/7/8 M bandwidth
		ISDB-T	Input Frequency			60 ~890 MHz
		DVB-S	Input Frequency			950-2150MHz
			Symbol rate			QPSK: 0.5~45 Msps
			FEC Demodulation			1/2, 2/3, 3/4, 5/6, 7/8
			Max input bitrate			≤ 140 Mbps
		DVB-S2	Input Frequency			950-2150MHz
			Symbol rate			QPSK/8PSK/16APSK: 0.5~45 Msps; 32APSK: 0.5~40 Msps
			FEC Demodulation			QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
			Max input bitrate			≤ 140 Mbps
		DVB-S2X	Input Frequency			950-2150MHz
			Symbol rate			QPSK/8PSK/16APSK: 0.5~45 Msps; 8APSK: 0.5~40Msps; 32APSK: 0.5~40Msps
			FEC Demodulation			QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9
			Max input bitrate			≤ 140 Mbps
Multiplexing		Maximum PID Remapping	128 per input channel
		Function	PCR accurate adjusting
			Generate PSI/SI table automatically
			PID Remapping
BISS Descrambling		Mode 1, Mode E (Up to 60Mbps) (descramble individual program)
Modulation		DVB-C	Standard		J.83A (DVB-C), J.83B, J.83BC
			Constellation		.83A		J.83B		J.83C
					16/32/64/128/256QAM		64/256 QAM		64/256 QAM
			Bandwidth		8M		6M		6M
			MER		≥43dB
			Symbol rate		5.000~7.000Msps adjustable
			RF Out		F typed, 75Ω impedance
					4*DVB-C RF output (adjacent carriers)
			RF frequency		50~960MHz, 1KHz step
			RF output level		-20~ -5dBm, 1 dBm step
			Output Bitrate		Max 51.6 Mbps per channel
		DVB-T	Standard		EN300744
			Constellation		QPSK, 16QAM, 64QAM
			Bandwidth		6M, 7M, 8M
			MER		≥42 dB
			Guard Interval		1/4, 1/8, 1/16, 1/32
			FFT mode		2K,4K, 8K
			MER		≥42 dB
			Code Rate		1/2, 2/3, 3/4, 5/6, 7/8
			RF out		F typed, 75Ω impedance
					2*DVB-T RF output
			RF frequency		30~999.999MHz, 1KHz step
			RF output Level		-20~-5 dBm, 1 dBm step
			Output Bitrate		Max 31.668Mbps per channel
System		LCD/keyboard and web management
		Language: English
		upgrade via Web
General		Dimension (W×L×H)		482mm×180mm×44mm
		Approx weight		4 kg
		Environment		0~45 ℃ (Work) ; -20~80 ℃ ( Storage )
		Power requirements		100~240VAC , 50/60Hz
