- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YW
-
Model Number:
-
YW-805
-
Material:
-
SUS 304
-
Size:
-
1600mm*1050 mm*900mm
-
Alarm mode::
-
Motor Automatically Stop
-
Feature::
-
Sensitivity Adjustment
-
Material::
-
Stainless Steel Material
-
Power::
-
110~240V
-
Sensitivity(Fe)::
-
0.5MM
-
Dimensions (mm)::
-
1520*860*930mm(L*W*H)
-
Induction adjustment:
-
1-10 level adjustable
-
Net weight:
-
about 180KG
-
Alarm method:
-
sound and light alarm
-
Certification:
-
CE
-
Battery:
-
/
-
Power:
-
110~240V
Quick Details
-
Warranty:
-
1 years
-
Type:
-
needle detector
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YW
-
Model Number:
-
YW-805
-
Material:
-
SUS 304
-
Size:
-
1600mm*1050 mm*900mm
-
Alarm mode::
-
Motor Automatically Stop
-
Feature::
-
Sensitivity Adjustment
-
Material::
-
Stainless Steel Material
-
Power::
-
110~240V
-
Sensitivity(Fe)::
-
0.5MM
-
Dimensions (mm)::
-
1520*860*930mm(L*W*H)
-
Induction adjustment:
-
1-10 level adjustable
-
Net weight:
-
about 180KG
-
Alarm method:
-
sound and light alarm
-
Certification:
-
CE
-
Battery:
-
/
-
Power:
-
110~240V
|
Metal detectable
|
Ferrum(Fe)
|
|
|
||
|
Detect mothed
|
Magnetic induction
|
|
|
||
|
Anti-interference
|
Digital Anti-interference
|
|
|
||
|
Sensitivity adjustment
|
level 1-10
|
|
|
||
|
Detect width
|
600mm
|
|
|
||
|
Detect height
|
100mm
|
|
|
||
|
Sensitivity
|
Fe≥0.8mm
|
|
|
||
|
Alarm method
|
Buzzer ,Lamp, Return,Stop
|
|
|
||
|
Conveyor belt
|
PVC
|
|
|
||
|
Conveyor belt speed
|
32m/min
|
|
|
||
|
Count function
|
Good、Total、Alarm
|
|
|
||
|
Power
|
140W
|
|
|
||
|
Voltage
|
220V/110V
|
|
|
||
|
Weight
|
185Kg
|
|
|
||
|
Delivery time
|
We have the machine now and can delivery at any time.
|
|
|
||
Application
Mainly used in food, aquatic products, toys, clothing, footwear, chemicals, leather, knitting and other industries, for the
detection of inclusions or lost in the raw materials or products broken needle, wire and other metals, preventing metal pollution
of the products and guaranteeing product quality. Be able to detect various metals like iron, stainless teel, copper and aluminum,
etc.

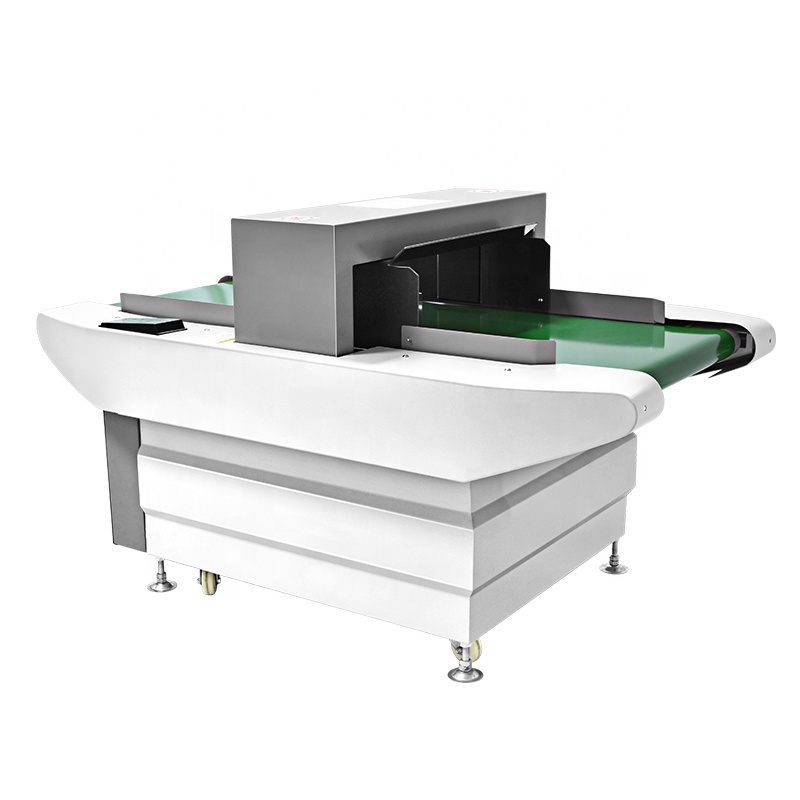

CQ-805 high window needle detector
Needle, a needle, a garment factory dedicated needle machine, toy factory needle device
Is imported from Japan, digital circuit design, suitable for detection and demanding immunity for needle machine customers have
special requirements, it has a strong anti-jamming capability and extremely high sensitivity and stability.
Needle, a needle, a garment factory dedicated needle machine, toy factory needle device
Is imported from Japan, digital circuit design, suitable for detection and demanding immunity for needle machine customers have
special requirements, it has a strong anti-jamming capability and extremely high sensitivity and stability.
Features:
1. the installation of anti-jamming devices imported, high sensitivity detection routine detection height 10-15 cm in diameter
0.8-1.2 mm iron ball, nine test not missed. And has superior anti-interference;
2. the structure of light, easy to move;
3. check the height of the window specifications, available to customers arbitrary selection as needed;
4. transmission speed, applicable to pipeline operations;
5. supporting the pipeline or automatic control devices.
6. eco-friendly, machine ten minutes without an object by itself off.
7. with automatic detection of the defective function backwards.
8. High-sensitivity, high anti-jamming metal alloy shell paint, more durable,
9. Data collected from all motor control using digital signal processing (DSP), highly intelligent;
10 with manual and automatic control of two feature selection, using the operation more convenient and flexible.
11. Can accurately count the total number of qualified defective
FAQ
1.How long of the warranty period?
1.How long of the warranty period?
Whole machine 1 year. In warranty period, We will send the part free to replace the one that is broken.
2.How can I trust you for the first time business ?
2.How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
3.What is your terms of payment?
3.What is your terms of payment?
T/T, L/C, Western Union, etcA: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.or 100% L/C at sight .
4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance?
5.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt, Disassembly tool(free) are what we could provide.And we can give you technical guidance.
