Quick Details
-
Dimensions (L x W x H) (mm):
-
7660x2000x3220mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sinotruk
-
Color:
-
Optioinal
-
Cabin:
-
2080 cabin with one sleeper
-
Engine:
-
YC4E116, 116HP
-
Tire:
-
8.25R16
-
Maximum driving speed:
-
90(km/h)
-
Wheel base (mm):
-
4700(mm)
-
Front/Rear overhang:
-
1180/1325(mm)
-
Approach angle/Departure angle:
-
20/25(°)
-
Gross vehicle weight:
-
5490(Kg)
-
Working height:
-
16m
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
After-sales Service Provided:
-
Video technical support, Online support
-
Dimensions (L x W x H) (mm):
-
7660x2000x3220mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sinotruk
-
Color:
-
Optioinal
-
Cabin:
-
2080 cabin with one sleeper
-
Engine:
-
YC4E116, 116HP
-
Tire:
-
8.25R16
-
Maximum driving speed:
-
90(km/h)
-
Wheel base (mm):
-
4700(mm)
-
Front/Rear overhang:
-
1180/1325(mm)
-
Approach angle/Departure angle:
-
20/25(°)
-
Gross vehicle weight:
-
5490(Kg)
-
Working height:
-
16m
|

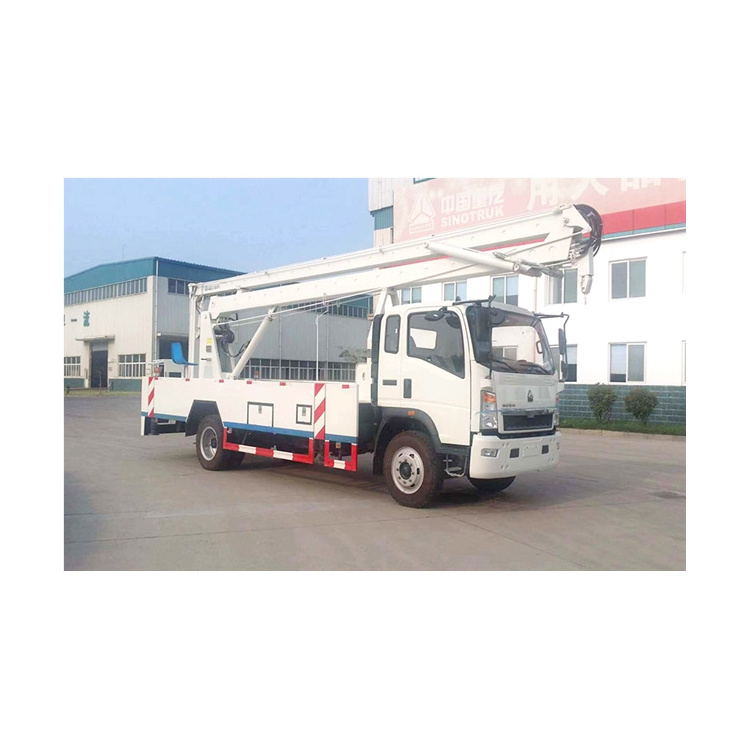

AERIAL PLATFORM TRUCK
|
|
|
||
|
#
|
Descriptions
|
Specifications and types
|
||
|
General
|
Truck Brand
|
Chengliwei (our brand)
|
||
|
|
Chassis Brand
|
Sinotruk howo
|
||
|
|
Approx. Dimension
|
7600*1995*3220 mm
|
||
|
|
GVW./Kerb Wt.
|
5815 /5490kg
|
||
|
Cab
|
Cab Capacity
|
2+3 persons' seat
|
||
|
|
Air Conditioner
|
Air Conditioner is optional
|
||
|
Chassis
|
Drive Type
|
4X2,LHD or RHD
|
||
|
|
Fuel Type
|
Diesel
|
||
|
|
Engine Make & Model
|
Chaochai engine
|
||
|
|
Power
|
120hp
|
||
|
|
Displacement
|
3856 ml
|
||
|
|
Emission Standard
|
EURO II or EURO III or Euro IV
|
||
|
|
Wheelbase/No.of axle
|
3300 mm / 2
|
||
|
|
Tyre Specfication
|
7.00-16
|
||
|
|
Tyre Number
|
6 tyres and 1 spare tyre
|
||
|
|
Max Speed
|
90 km/h
|
||
|
|
Paint
|
Automative metallic paint
|
||
|
Superstructure
|
Max working height
|
10m 12m 14m 16m
|
||
|
|
Working cage
|
200kg capacity
|
||
|
|
Beam
|
Hydraulic control
|
||
|
|
Slewing
|
360 continuous rotation
|
||
|
Equipments
|
Four hydraulic outriggers are equipped, stable and reliable
Dual control system both in the working cage and on the deck. Safety device: relief valve, balance valve, double way hydraulic lock ,motor emergency system Insulated aerial platform ,hoist hook with cables optional |
|
||
Q1,
What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2, What's your minimum quality?
1 unit
Q3, How about your delivery time?
A: Generally, it will take about 20 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4, What's the warranty?
A: Engine, transmission, axle guarantee one year (Any faulty caused by incorrect operation or man-made factors is exclusive of guarantee.)
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2, What's your minimum quality?
1 unit
Q3, How about your delivery time?
A: Generally, it will take about 20 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4, What's the warranty?
A: Engine, transmission, axle guarantee one year (Any faulty caused by incorrect operation or man-made factors is exclusive of guarantee.)
Q5,
What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply
A: We provide technical support for our trucks and whole life parts supply
