Quick Details
-
Place of Origin:
-
Guangdong, China
-
LED Panel Size:
-
300x600x3mm
-
LED QTY:
-
72LEDs ( 50mm LED spacing )
-
Brightness:
-
3000Lm / m2
-
Other Size:
-
from 100mm to 600mm or customized
-
Optional LED Spacing:
-
25mm,33.33mm,16.66mm,30.5mm,45mm etc
-
Optional Color:
-
Single Color, Bi-Color, Tri-Color,Multi-Color
-
Beam Angle:
-
120 degree
-
Dimmable:
-
Yes
-
Sample or Small order:
-
Accepted
-
Application Recommended:
-
Backlighting, direct lighting or any lighting projects
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum,Epoxy Resin,LED,Power Cable
-
Working Temperature(℃):
-
-30 - 50
-
Place of Origin:
-
Guangdong, China
-
LED Panel Size:
-
300x600x3mm
-
LED QTY:
-
72LEDs ( 50mm LED spacing )
-
Brightness:
-
3000Lm / m2
-
Other Size:
-
from 100mm to 600mm or customized
-
Optional LED Spacing:
-
25mm,33.33mm,16.66mm,30.5mm,45mm etc
-
Optional Color:
-
Single Color, Bi-Color, Tri-Color,Multi-Color
-
Beam Angle:
-
120 degree
-
Dimmable:
-
Yes
-
Sample or Small order:
-
Accepted
-
Application Recommended:
-
Backlighting, direct lighting or any lighting projects

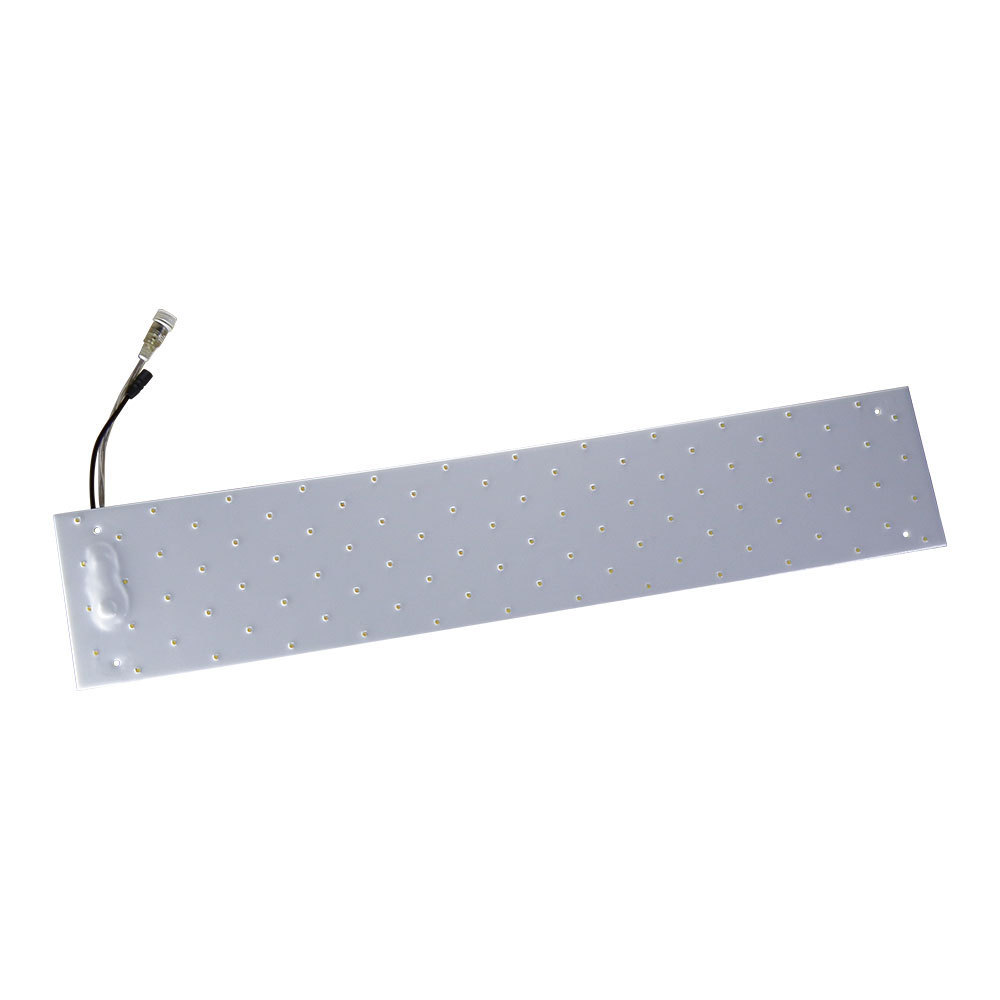

Low Power 5.8W 30x60 dc 12v battery operated LED light panel
|
LED Product Details: |
|
|
Model |
RX-ALF3528-50-3060 |
|
Size |
300x600x3mm |
|
Material |
Aluminum |
|
LED Lamp |
SMD3528 ( Epistar ) |
|
LEDs Qty |
72PCS |
|
LED Spacing |
50mm |
|
Net Weight |
1.25kg/pcs |
|
Electric Specification: |
|
|
Input Voltage |
DC12V |
|
Power Consumption |
5.8W |
|
Average Life Span |
>50000 Hours |
|
Color Rendering Index |
Ra >75 |
|
Optical Specification: |
|
|
Luminous Flux |
580Lm ( 3000Lm/m2 ) |
|
Color |
Cool White, Neutral White, Warm White |
|
Color Temperature |
2800-3200K, 4000-4500K, 6000-6500K |
|
Luminous Efficiency |
>100Lm/W |
|
Operating Temperature Range |
-30~50 ℃ |
|
Light Decay Rate |
<30%(50000 Hours) |
Top Features and benefits:
- Ultra thin 3mm
- Efficiency 100Lm/w
- Waterproof IP67
- Long Life 50000hrs
- Practical application 5 years
- Aging testing >50000hrs
- Aluminum heat dissipation
- Various dimensions
- Customized sizes
- Even Illumination
- Widely Applications
- CE and RoHS approval
- Warranty policy 3 years
- Patent No.: ZL200820131053, ZL200820132702
Various sizes/wattage/brightness for option
|
Model |
Dimension |
LED QTY |
Lumen |
Power DC12V |
LED Pitch |
Min Depth Required For Backlight |
|
RX-ALF3528-33-1010 |
100x100mm |
9LED |
70Lm |
0.7W |
33.33mm |
48mm |
|
RX-ALF3528-33-1030 |
100x300mm |
27LED |
210Lm |
2.1W |
||
|
RX-ALF3528-33-1060 |
100x600mm |
54LED |
420Lm |
4.2W |
||
|
RX-ALF3528-33-3030 |
300x300mm |
81LED |
550Lm |
5.5W |
||
|
RX-ALF3528-33-3060 |
300x600mm |
162LED |
1100Lm |
11W |
||
|
RX-ALF3528-33-5050 |
500x500mm |
225LED |
1520Lm |
15.2W |
||
|
RX-ALF3528-33-6060 |
600x600mm |
324LED |
2200Lm |
22W |
||
|
|
||||||
|
RX-ALF3528-30-2727 |
270x270mm |
81LED |
550Lm |
5.5W |
30.5mm |
45mm |
|
RX-ALF3528-30-2754 |
270x540mm |
162LED |
1100Lm |
11W |
||
|
RX-ALF3528-30-5454 |
540x540mm |
324LED |
2200Lm |
22W |
||
|
|
||||||
|
RX-ALF3528-25-3030 |
300x300mm |
144LED |
1100Lm |
11W |
25mm |
36mm |
|
RX-ALF3528-25-20120 |
200x1200mm |
384LED |
2900Lm |
29W |
||
|
RX-ALF3528-25-6060 |
600x600mm |
576LED |
3900Lm |
39W |
||
|
|
||||||
|
RX-ALF3528-16-3030 |
300x300mm |
324LED |
2200Lm |
22W |
16.66mm |
25mm |
|
RX-ALF3528-16-2050 |
200x500mm |
360LED |
2400Lm |
24W |
||
|
RX-ALF3528-16-6060 |
600x600mm |
1296LED |
8200Lm |
82W |
||
Color Option: WW/NW/CW, RGB, Bi-color, Tri-color etc.
Shape Option: Square,Rectangle,Round etc.
| Widely Applications: |
|
1. Outdoor and Indoor Backlighting
2. Direct lighting:
3. Replacement of Fluorescent Lamp
4. DIY any lighting projects |
CE RoHS, IP67 Certificate
Shipping by DHL, UPS, FEDEX, TNT, by air, by sea
