This animal feed mill machine can be used for processing livestock, poultry and aquatic feed pellets, such as cattle pellets and chicken pellets, pig pellets, goat pellets, which is specially suitable for medium feed factory, breed farm or aquatic base. It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material. And also, this manufacturing plant for animal feed has the features of low energy consumption and high production efficiency for larger profits.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
300 KG
-
Name:
-
Pto driven wood pellet mill
-
Other name:
-
Sawdust pellet machine for sale
-
Key words:
-
Biomass pellet maker
-
Raw material:
-
Grass,Rice Husk,Wood Sawdust,Biomass
-
Application:
-
fireplaces, power plants, farms, etc.
-
Spare parts:
-
mold+roller
-
Package:
-
Standard Wooden Case
-
Brand Name:
-
pto pellet machine
-
Die Hole Specification::
-
2.5-10mm
-
moisture content:
-
12%-20%
Quick Details
-
Pellet Diameter (mm):
-
2.5 - 10
-
Output (kg/h):
-
600 - 800 kg/h
-
Place of Origin:
-
Henan, China
-
Weight (KG):
-
300 KG
-
Name:
-
Pto driven wood pellet mill
-
Other name:
-
Sawdust pellet machine for sale
-
Key words:
-
Biomass pellet maker
-
Raw material:
-
Grass,Rice Husk,Wood Sawdust,Biomass
-
Application:
-
fireplaces, power plants, farms, etc.
-
Spare parts:
-
mold+roller
-
Package:
-
Standard Wooden Case
-
Brand Name:
-
pto pellet machine
-
Die Hole Specification::
-
2.5-10mm
-
moisture content:
-
12%-20%
Product Description

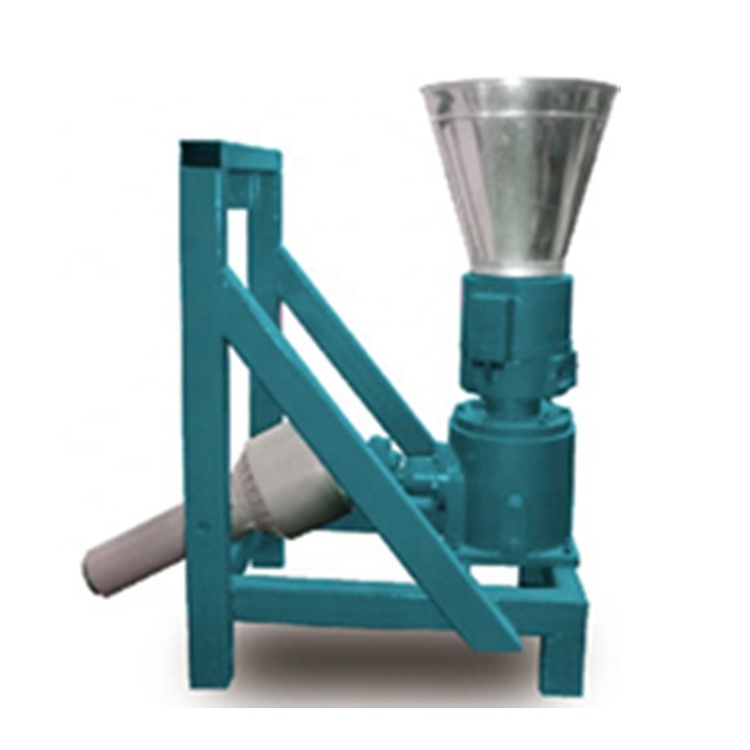

PTO pellet machine
Raw Material
For using this full automatic animal feed pellet machine, it can process corn stock, wheat bran, soya bean meal, leaves, hay,straw, grass, etc.
Model llist
Feed pellet machine
|
Model
|
Power(Hp)
|
Output(kg/h)
|
Weight(kg)
|
Size(mm)
|
|
ZLSP-S-150P
|
≥8
|
90-120
|
105/125
|
900*540*1020
|
|
ZLSP-S-200P
|
≥15
|
200-300
|
210/230
|
1000*540*1020
|
|
ZLSP-S-230P
|
≥22
|
300-400
|
290/320
|
1000*540*1020
|
|
ZLSP-S-260P
|
≥30
|
400-600
|
340/370
|
1050*540*900
|
|
ZLSP-S-300P
|
≥55
|
600-800
|
425/465
|
1100*540*1000
|
Wood pellet machine
|
Model
|
Power(Hp)
|
Output(kg/h)
|
Weight(kg)
|
Size(mm)
|
|
ZLSP-M-150P
|
≥8
|
50-100
|
90/110
|
900*540*1020
|
|
ZLSP-M-200P
|
≥15
|
80-120
|
130/150
|
1000*540*1020
|
|
ZLSP-M-230P
|
≥22
|
120-200
|
175/200
|
1000*540*1020
|
|
ZLSP-M-260P
|
≥30
|
160-250
|
235/255
|
1050*540*900
|
|
ZLSP-M-300P
|
≥55
|
250-400
|
305/325
|
1100*540/1000
|
Details of the PTO pellet machine
The PTO tractor pellet machine use the motor as the driving force for initiative axis, and operate cyclically. Major axis and disk mode are drived by gear wheels to produce the friction with the pressure roll bolt, the resulting friction temperature between pressure roller and the mode tray can reach 80°c . The powder material become paste at high temperature and is condensed into pieces, then go through the hole on the mode tray. The high-quality forming pellets will be rolling out from the exit of machines under the role of the pressure roller. At the same time, the length of pellets can adjust according to location of the cutter segment.
Features and advantages of the pellet machine
--pellet in high density and good appearance
--no pollution and environment friendly
--wide application for various materials
--easy and simple operation
--high forming rate
--different output
--energy saving
--low noisy
