Quick Details
-
Brand Name:
-
DC
-
Model Number:
-
DC-670
-
Temperature:
-
-5 / -12 /-18 degrees C
-
Climate Type:
-
N-ST
-
Refrigerant:
-
R404a, R404a
-
Capacity to hold ice bags:
-
200 bags of ice (8 lbs./bag)
-
Insulation:
-
Polyurethane insulation thick 80mm
-
Steel finish:
-
Painted galvanized steel
-
Merchandiser Door:
-
Double glass door with heater
-
Door size:
-
26*44 inches each door
-
Compressor:
-
Embraco
-
Refrigeration type:
-
Air cooled
-
40'HQ:
-
15 PCS
-
Certification:
-
CE & Rohs
Quick Details
-
Style:
-
Single-Temperature
-
Capacity:
-
650L
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DC
-
Model Number:
-
DC-670
-
Temperature:
-
-5 / -12 /-18 degrees C
-
Climate Type:
-
N-ST
-
Refrigerant:
-
R404a, R404a
-
Capacity to hold ice bags:
-
200 bags of ice (8 lbs./bag)
-
Insulation:
-
Polyurethane insulation thick 80mm
-
Steel finish:
-
Painted galvanized steel
-
Merchandiser Door:
-
Double glass door with heater
-
Door size:
-
26*44 inches each door
-
Compressor:
-
Embraco
-
Refrigeration type:
-
Air cooled
-
40'HQ:
-
15 PCS
-
Certification:
-
CE & Rohs

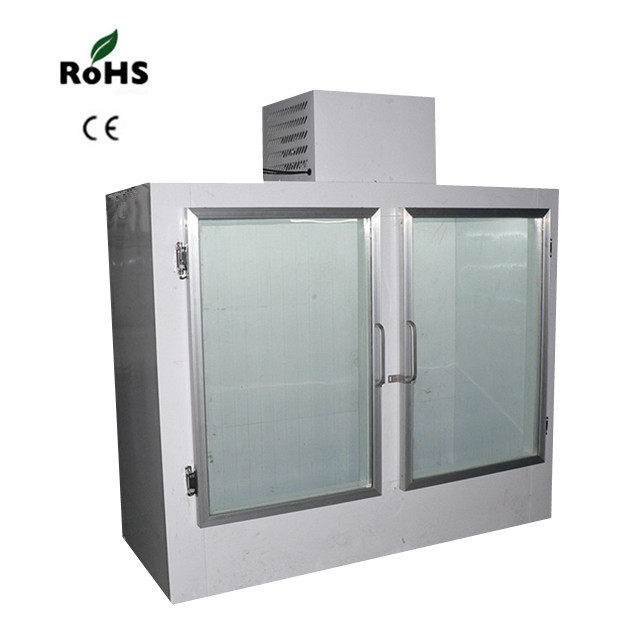

Gas station bagged ice freezer ice merchandiser with glass door
b agged ice freezer ice merchandiser Specification
* Indoor use
* Auto Defrost
* Available to make Logo Artwork Advertisement as per clients' requirement.
| Model | DC-670 |
| Certificate | CE&Rohs |
| Temperature range | -5 / -12 /-18degree C |
| Capacity(cubic feet) | 67 |
| Bag(8 Lbs) | 200 |
| Steel finish | Painted galvanized steel |
| Insulation | Polyurethane 80mm thick |
| Dimension(W*D*H)inch | 62x35x80 |
| Dimension(W*D*H) | 1570mm*890mm*2030mm |
| Door type | Painted galvanized steel |
| Door size(W*H)inch | 26*44 |
| Door quantity | 2 glass doors |
| Refrigerant | R404a |
| Cooling system | Fan cooling ( Auto Defrost) |
| Compressor brand | Embraco 1/2hp |
| 40ft container loading QTY |
15 pcs
|
b agged ice freezer ice merchandiser Features
1. Polyurethane insulation ,painted galvanized steel
2. Merchandiser glass door door with aluminum frame and heaters
3. Good quality door rubber with magnet
4. Good quality wheels.Or we can make without wheels, or with bullet feet.
5. Drainage hole on the bottom of the ice bin
6. Auto Defrost with Embraco compressor
7. Voltage: 110V/60Hz, 220V/60Hz ,220V/50Hz
b
agged ice freezer
ice merchandiser
Door handles
b agged ice freezer ice merchandiser Door hinges
b
agged ice freezer
ice merchandiser
Condensing Unit
We design "drop-in"condensing unit together with evaporator, easy take out whole refrigeration unit for test and maintenance.
We usually use Embraco compressor, run with refrigerant R404a. If the ice storage bin is with fan cooling system, it is frost free.
We have b agged ice freezer ice merchandiser for indoor use and outdoor use, digital temperature control(waterproof for outdoor use).
The voltage and plug can be changed to meet client's actual need.
The ice storage bin/ice merchandiser can stand without / with roller(with brake)or adjustable bullet feet.
b agged ice freezer ice merchandiser for indoor & outdoor use , we have many ice bin models with different capacity optional.
Temperature of the ice storage bins can be 0degree C/-5degree C/-12degree C/-18degree C.
The cooling system can be fan cooling or static cooling(Cold wall).
The door of the ice bins can be solid door or glass door.
The voltage can be changed as request.
We can asist you to make the logo artworks for the ice storage bin.
The ice merchandisers with different capacity:
Besides full assembled ice merchandisers , we also provide flat pack ice storage room for your option:
Ice merchandiser for indoor & outdoor use Packing and shipping
1. Packing type: PE film+paper+crate / plywood case
2. Production time: after deposit, 20~25days ready for shipment
3.Shipping type: By ship
