Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GLS
-
Model Number:
-
Tube2401
-
Color:
-
transparent
-
Product Name:
-
Fused Quartz Glass Tube
-
Material:
-
SiO2
-
Feature:
-
high temperature resistance
-
Length:
-
Customers' requirements
-
Operating Temperature::
-
1250℃
-
Siza:
-
2-50mm diameter
-
wall thickness:
-
0.5-10mm
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
laboratory equipment
-
Outside Diameter:
-
2-50mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GLS
-
Model Number:
-
Tube2401
-
Color:
-
transparent
-
Product Name:
-
Fused Quartz Glass Tube
-
Material:
-
SiO2
-
Feature:
-
high temperature resistance
-
Length:
-
Customers' requirements
-
Operating Temperature::
-
1250℃
-
Siza:
-
2-50mm diameter
-
wall thickness:
-
0.5-10mm

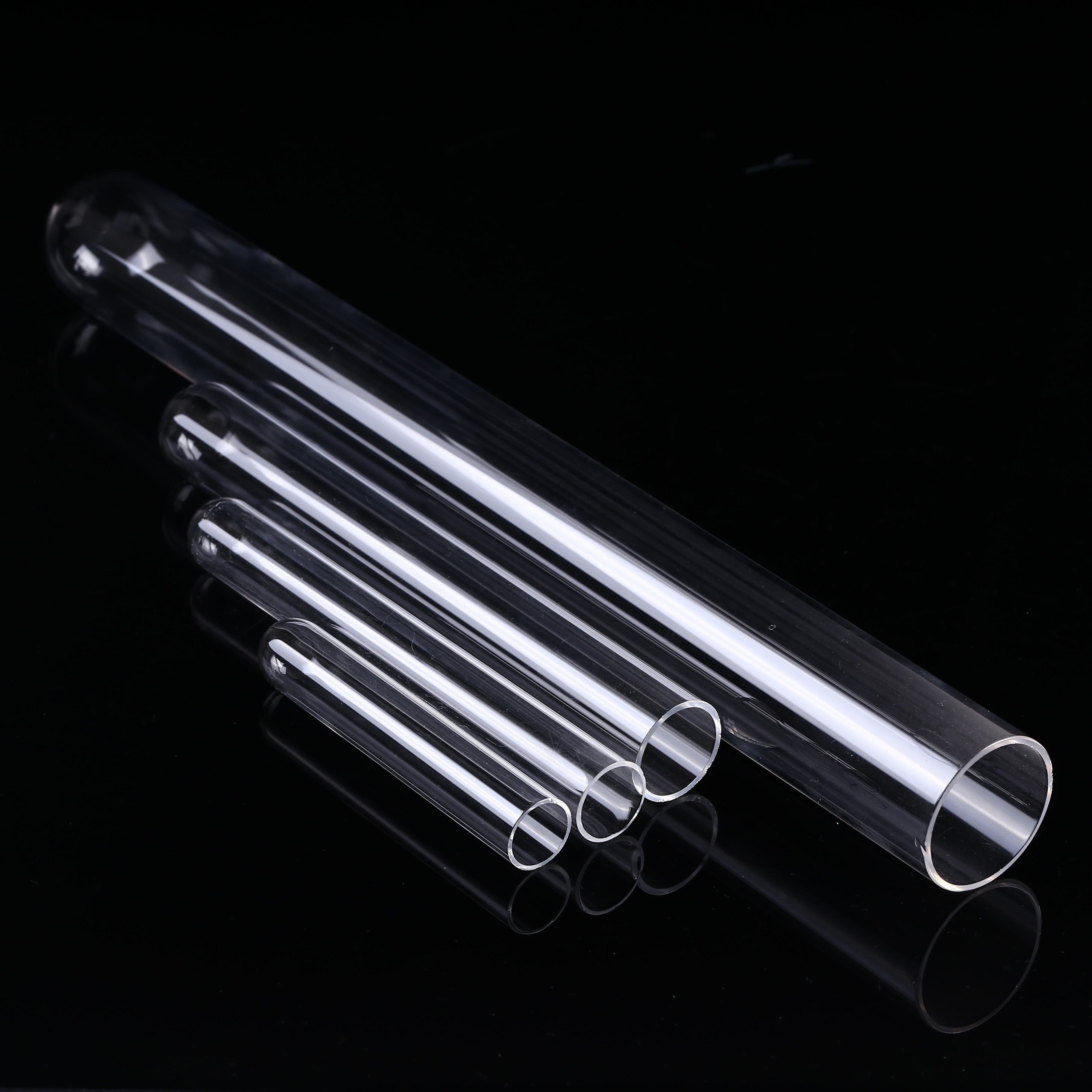

Products Description
GLS quartz tube produced with high purity material SiO2 99.99-99.9999%,OH content controlled in less than 20PPM, 15PPM, 10PPM,5PPM, 2PPM. Quartz itself has many good characters such as:
1. High temperature resistance
The hardening point temperature of high temperature resistant quartz glass is about 1730c, which can be used for a long time under 1000C, and the maximum operating temperature can reach 1450C in a short time.
2. Corrosion resistance
Except hydrofluoric acid, quartz glass hardly reacts with other acids or alkali. Its acid resistance is 30 times that of
ceramic,150 times that of stainless steel, especially at low temperature.
3. Thermal stability
The thermal contraction coefficient of quartz glass, can suffer severe temperature changes, the quartz glass heated to 1100 ℃ or so, will not burst into cold water.Thermal expansion coefficient is extremely small (5.3 ~ 5.8) x 10 ^ (7).3.
4. Good electrical insulation performance
The resistance of quartz glass is 10,000 times that of ordinary glass. It is an excellent electrical insulation material with good electrical properties even at high temperature.
5. Good transmittance
Quartz glass has good transmittance in all spectral waves from purple to red, and the visible light transmittance is above
93%,especially in the ultraviolet spectral region, with the maximum transmittance reaching 80-90%.
1. High temperature resistance
The hardening point temperature of high temperature resistant quartz glass is about 1730c, which can be used for a long time under 1000C, and the maximum operating temperature can reach 1450C in a short time.
2. Corrosion resistance
Except hydrofluoric acid, quartz glass hardly reacts with other acids or alkali. Its acid resistance is 30 times that of
ceramic,150 times that of stainless steel, especially at low temperature.
3. Thermal stability
The thermal contraction coefficient of quartz glass, can suffer severe temperature changes, the quartz glass heated to 1100 ℃ or so, will not burst into cold water.Thermal expansion coefficient is extremely small (5.3 ~ 5.8) x 10 ^ (7).3.
4. Good electrical insulation performance
The resistance of quartz glass is 10,000 times that of ordinary glass. It is an excellent electrical insulation material with good electrical properties even at high temperature.
5. Good transmittance
Quartz glass has good transmittance in all spectral waves from purple to red, and the visible light transmittance is above
93%,especially in the ultraviolet spectral region, with the maximum transmittance reaching 80-90%.
|
chemical composition:
|
SIO2 99.9%
|
|
Density:
|
2.2(g/cm3)
|
|
Degree of hardness moh' scale :
|
6.6
|
|
Melting point:
|
1732°C
|
|
Working temperature :
|
1100°C
|
|
Max temperature can reach in a short time :
|
1450°C
|
|
Acid tolerance:
|
30 times than Ceramics , 150 times than Stainless steel
|
|
Visible light transmittance :
|
above 93%
|
|
UV spectral region transmittance:
|
80%
|
|
Resistance value :
|
10000 times than ordinary glass
|
|
Annealing point:
|
1215°C
|
|
softening point:
|
1730°C
|
Details Images
The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass, which is a very good electrical insulation material and has good insulation performance at room temperature.
