Quick Details
-
Power:
-
1.5kw
-
Min. Lifting Height:
-
4m
-
Table Size:
-
2.1*1.23m
-
Overall Dimensions:
-
2.25*1.35*1.65m
-
Weight:
-
14000 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Application:
-
Maintenance, cleaning
-
Product name:
-
4 wheel driven double scissor lift platform from China manufactuer
-
Name:
-
cheap price double scissor lift table
-
Keywords:
-
double scissor lift table
-
Material:
-
High Strength Steel
-
Type:
-
portable movable lifting platform for sale or rental
-
Voltage:
-
220V,380V
-
Usage:
-
Aerial Maintenance
-
Feature:
-
Hydraulic Mobile
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CFMG
-
Power:
-
1.5kw
-
Min. Lifting Height:
-
4m
-
Table Size:
-
2.1*1.23m
-
Overall Dimensions:
-
2.25*1.35*1.65m
-
Weight:
-
14000 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Application:
-
Maintenance, cleaning
-
Product name:
-
4 wheel driven double scissor lift platform from China manufactuer
-
Name:
-
cheap price double scissor lift table
-
Keywords:
-
double scissor lift table
-
Material:
-
High Strength Steel
-
Type:
-
portable movable lifting platform for sale or rental
-
Voltage:
-
220V,380V
-
Usage:
-
Aerial Maintenance
-
Feature:
-
Hydraulic Mobile

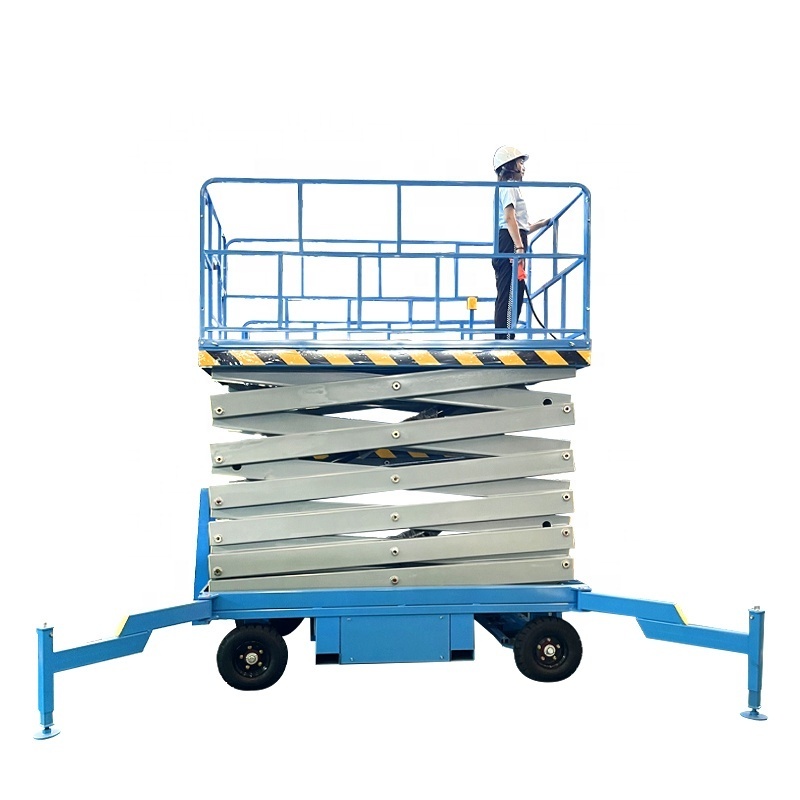

Mobile scissor lift are used where big lifting capability is required. With working heights up to 66ft and capabilities up to 3000kg (2200lbs), they are designed to provide larger platform work areas and generally to allow heavier loads than boom lift.
Features
-Vertical raising of platform
-Convenient operation (can be controlled both on the platform and the ground)
-Horizontal extension of deck(customized)
-Scissor lifts are available in various electric and battery and diesel powered models
.
|
Model
|
platform size (mm)
|
load (kg)
|
platform height (m)
|
working height (m)
|
overall size (mm)
|
weight (kg)
|
|
SJY0.5-4
|
2100*830
|
500
|
4
|
6
|
2250*950*1100
|
800
|
|
SJY0.5-6
|
2100*930
|
500
|
6
|
8
|
2260*1140*1360
|
880
|
|
SJY0.5-8
|
2100*930
|
500
|
8
|
10
|
2260*1140*1460
|
1050
|
|
SJY0.5-10
|
2100*1230
|
500
|
10
|
12
|
2260*1440*1610
|
1360
|
|
SJY0.5-12
|
2600*1500
|
500
|
12
|
14
|
2800*1700*1850
|
2260
|
|
SJY0.5-14
|
2810*1500
|
500
|
14
|
16
|
3070*1770*1910
|
2400
|
|
SJY0.5-16
|
2810*1600
|
500
|
16
|
18
|
3030*1820*2120
|
3500
|
|
SJY0.5-18
|
3070*1600
|
500
|
18
|
20
|
3290*1820*2120
|
3900
|
Safety Parts：
1.Hydraulic anti-dropping lock in hydraulic oil cylinder
2.Imported sealing part: Japan "NOK"
3.Explosion-proof hydraulic tube
4.Overflow valve to prevent overload
5.Emergency valve for manual landing in case of power failure
Shandong Chufeng Heavy Industry Machinery Group Co., Ltd
Specialized in the production of lifts, Shandong Heavy Machinery Group Co, Ltd can provide various types of lifts, lifting platforms, lifting stage, elevator, hydraulic elevator, lifting elevator, hydraulic lift, hydraulic lifting platform, lifting equipment to customers from all over the world.
Pre-sale Service.
* Sample testing support.
* View our Factory..
After-sale Service
* Free guidance of installation and debugging and free training of operation, care and maintenance.
* Control system guaranteed for three years
* Regularly markets visits and free guidance of whole machine's maintenance and reparations.
* Engineers available to service machinery overseas.
