Quick Details
-
Jacket:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yifang
-
Model Number:
-
AAC AAAC ACSR
-

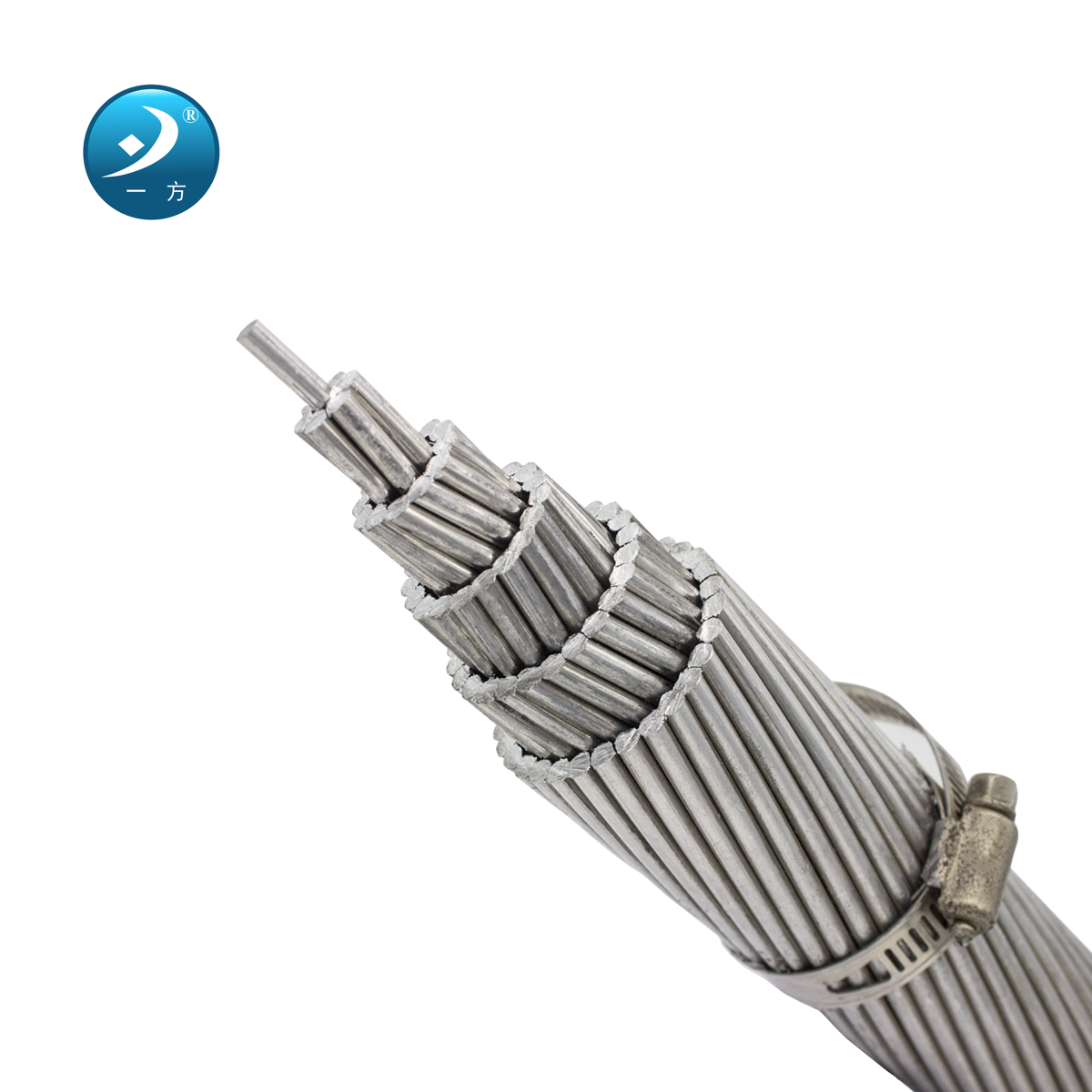

Product name:
-
bare aluminum conductor
-
Rated voltage:
-
no Voltage limit
-
Package:
-
Wooden Drum or according to your needs
-
Cable type:
-
bare conductor
-
application:
-
industry and other, Overhead Transmission
Quick Details
-
Insulation Material:
-
none
-
Application:
-
Overhead
-
Conductor Material:
-
Aluminum, Al & Al Alloy$cu
-
Jacket:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yifang
-
Model Number:
-
AAC AAAC ACSR
-
Product name:
-
bare aluminum conductor
-
Rated voltage:
-
no Voltage limit
-
Package:
-
Wooden Drum or according to your needs
-
Cable type:
-
bare conductor
-
application:
-
industry and other, Overhead Transmission
Product Description
Application:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR/AACSR/TACSR offers optimal strength for line design.Variable steel core stranding enables desired strength to be achieved without reducing ampacity.
Applicable standards:
ASTM B-232, BS EN-50182, CSAC 61089, AS/NZS 3607, DIN 48204, IEC 61089,GB/T 1179,JIS 3110,CSA C49,ASTM B711
Production Scope:
Max. Cross- Section 3500MCM/1 750mm' ,Max. Stranded number 127Nos.
Construction :
For ACSR: Type Aluminium 1350-H19 wires,concentrically stranded around galvanize coated steel core wire.
For AACSR: Type Aluminium alloy 6201-T81 wires,concentrically stranded around galvanize coated steel core wire.
For TACSR: Thermal resistant aluminum alloy wires,,concentrically stranded around galvanize coated steel core wire .
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR/AACSR/TACSR offers optimal strength for line design.Variable steel core stranding enables desired strength to be achieved without reducing ampacity.
Applicable standards:
ASTM B-232, BS EN-50182, CSAC 61089, AS/NZS 3607, DIN 48204, IEC 61089,GB/T 1179,JIS 3110,CSA C49,ASTM B711
Production Scope:
Max. Cross- Section 3500MCM/1 750mm' ,Max. Stranded number 127Nos.
Construction :
For ACSR: Type Aluminium 1350-H19 wires,concentrically stranded around galvanize coated steel core wire.
For AACSR: Type Aluminium alloy 6201-T81 wires,concentrically stranded around galvanize coated steel core wire.
For TACSR: Thermal resistant aluminum alloy wires,,concentrically stranded around galvanize coated steel core wire .
Product show
|
Item
|
Application
|
Applicable Standards
|
Production Scope
|
Construction
|
||||
|
AAC/AAAC Conductor
|
Mainly for overhead power transmission and primary and secondary distribution
|
AAC: ASTM B 231, BS EN-50182, AS/NZS 1531, DIN 48201, CSA 61089, IEC 61089, GB/T 1179, JIS 3109, CSA C49, BS215
AAAC: ASTM B-399, BS EN-50182, AS/NZS 1531, DIN 48201, CSA 61089, IEC 61089, GB/T 1179, BS3242 |
Max. Cross-Section 5000MCM/2500MM2, Max. Stranded number 127Nos.
|
For AAC: Type 1350-H19 aluminium wires, concentrically stranded;
For AAAC: Type 6201-T81 aluminium wires, concentrically stranded. |
||||
|
ACSR/AACSR/TACSR
Conductor |
Used us bare overhead transmission cable and as primary and secondary distribution cable. ACSR/AACSR/TACSR offers optimal
strength for line design. Variable steel core stranding enables desired strength to be achieved without reducing ampacity. |
ASTM B-232, BS EN-50182, CSA C 61089, AS/NZS 3607, DIN 48204, IEC 61089, GB/T 1179, JIS 3110, CSA C49, ASTM B711
|
Max. Cross-Section 3500MCM/1750MM2, Max. Stranded number 127Nos.
|
For ACSR: Type Aluminium 1350-H19 wires, concentrically stranded around galvanize coated steel core wire
For AACSR: Type Aluminium alloy 6201-T81 wires, concentrically stranded around galvanize coated steel core wire For TACSR: Thermal resistant aluminium alloy wires, concentrically stranded around galvanize coated steel core wire |
||||
|
ACAR Conductor
|
Aluminum Conductor Alloy Reinforced (ACAR) cable is an excellent conductor choice where current carrying capacity, higher
strength and a lower conductor weight are critical to the line design. |
ASTM B-524, BS EN-50182, CSA C 61089, IEC 61089, GB/T 1179
|
Max. Cross-Section 3500MCM/1750MM2, Max. Stranded number 127Nos.
|
Aluminum Conductor Alloy Reinforced (ACAR) cable has aluminum 1350 H-19 wires stranded around a 6201-T81 aluminum alloy core
concentrically. |
||||
|
GSW/ACS/CCS Conductor
|
Galvanized Steel Wire (GSW) is used for staying the poles or as the core of ACSR Aluminum Clad Steel (ACS) used as lighting
conductor ground wire; Copper Clad Steel (CCS) used as ground wire. |
GSW: ASTM A475, BS183, CAN/CSA-G12.
ACS: ASTM B416, YB/T 124-1997. CCS: ASTM B288. |
Wire dia. from 1.20mm to 5.60mm
Max. Stranded Number:37 Nos. |
Galvanized Steel/Aluminum Clad Steel/Copper Clad Steel Wire, concentrically Stranded.
|
||||
|
Bare Copper Conductor
(BCC) |
Used as ground wire, Overhead transmission system, Overhead traction system Transformer earthing (occasionally)
|
ASTM B8-04, BS7884, GB/T 12970, DIN4801-7
|
There is hard drawn and soft drawn wire, the Dia. of the stranded wire from 0.2mm to 5.0mm, Max. 127 Stranding Nos.
|
Bare copper wire, concentrically Stranded.
|
||||
|
*We can design and produce according to client’s requirement.
|
|
|
|
|
||||
