Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HTD
-
Product name:
-
DMX Lighting Controller
-
Max. Load Power:
-
CONTROL 2048 PIXELS
-
Model Number:
-
K-8000CK
-
Weight:
-
350g
-
Key Feature:
-
Programable controller
Quick Details
-
Warranty(Year):
-
1-Year
-
Type:
-
Remote Control
-
Product Weight（kg）:
-
1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HTD
-
Product name:
-
DMX Lighting Controller
-
Max. Load Power:
-
CONTROL 2048 PIXELS
-
Model Number:
-
K-8000CK
-
Weight:
-
350g
-
Key Feature:
-
Programable controller
Product Description
K-8000CK system features:
1、32 to 65536 degree Gray control, Gamma correction procession handle.
2、Support various point, line light source, and all kinds of rules and specific shaped handle.
3、The controller has eight ports output, each port can support up to 1024 lights.
4、The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5、The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better
stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
6、The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7、The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.
Notes: 1, The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec, 768 point pixel speed can reach up to 25 frames / sec, 1024 point pixel speed is about 22 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference)
1、32 to 65536 degree Gray control, Gamma correction procession handle.
2、Support various point, line light source, and all kinds of rules and specific shaped handle.
3、The controller has eight ports output, each port can support up to 1024 lights.
4、The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5、The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better
stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
6、The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7、The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.
Notes: 1, The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec, 768 point pixel speed can reach up to 25 frames / sec, 1024 point pixel speed is about 22 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference)

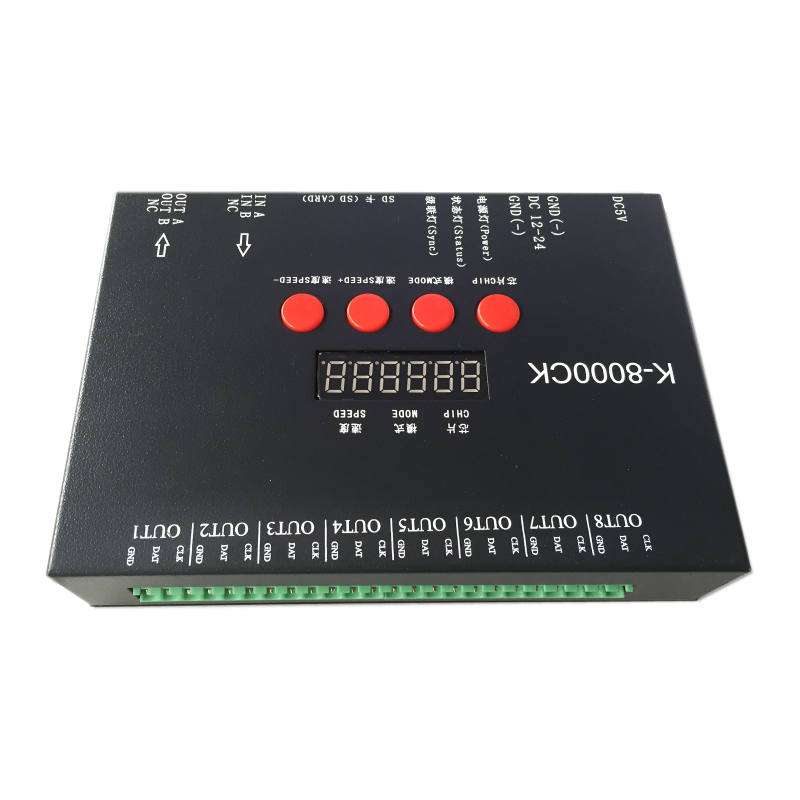

Screen print meaning:
Button meaning:
|
Button
|
Meaning
|
|
|
|
CHIP
|
Switch chip
|
|
|
|
MODE
|
Switch file
|
|
|
|
SPEED+
|
Speed up
|
Press SPEED+ and SPEED- the same time, would enter effect files looping mode
|
|
|
SPEED-
|
Speed down
|
|
|
Interface Meaning:
|
DC5-24V
|
DC 5V power input
|
|
GND
|
Negative electrode
|
|
POWER
|
Power indicator
|
|
ERROR
|
Error indicator
|
|
SD card
|
SD card slot
|
|
GND
|
GND
|
NOTES:
1、To copy files to SD card, you must format the SD card first, pay attention to is that each copy must be formatted first.
2、SD card must be formatted as FAT form or FAT32 form.
3、The SD card can not be hot-swappable, plug the SD card each time, you must first disconnect the power supply controller.
*Note: When you need order this controller kindly consult to HTD sales more.
1、To copy files to SD card, you must format the SD card first, pay attention to is that each copy must be formatted first.
2、SD card must be formatted as FAT form or FAT32 form.
3、The SD card can not be hot-swappable, plug the SD card each time, you must first disconnect the power supply controller.
*Note: When you need order this controller kindly consult to HTD sales more.
Connection Diagram
CONVENTIONAL IC LAMP CONNECTION MODE
Similar Product
Packaging
1 * K-8000C Pixel Program Controller
1 * 256MB memory card
(Only the above package content, other products are not included.The measurement allowed error is +/- 1-3cm.)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
1 * 256MB memory card
(Only the above package content, other products are not included.The measurement allowed error is +/- 1-3cm.)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
