Quick Details
-
Voltage:
-
380V, 380
-
Dimension(L*W*H):
-
78*55*61, 780*550*610mm
-
Weight (KG):
-
40
-
Power (kW):
-
0.37
-
Product name:
-
Saw blade polishing machine
-
Grinding blade width:
-
6-75mm
-
Grinding range between teeth:
-
2-30mm
-
Grinding speed:
-
0-63teeth/min
Quick Details
-
Wheel Size(mm):
-
150*32, 150x32/25*2-10mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AD
-
Voltage:
-
380V, 380
-
Dimension(L*W*H):
-
78*55*61, 780*550*610mm
-
Weight (KG):
-
40
-
Power (kW):
-
0.37
-
Product name:
-
Saw blade polishing machine
-
Grinding blade width:
-
6-75mm
-
Grinding range between teeth:
-
2-30mm
-
Grinding speed:
-
0-63teeth/min

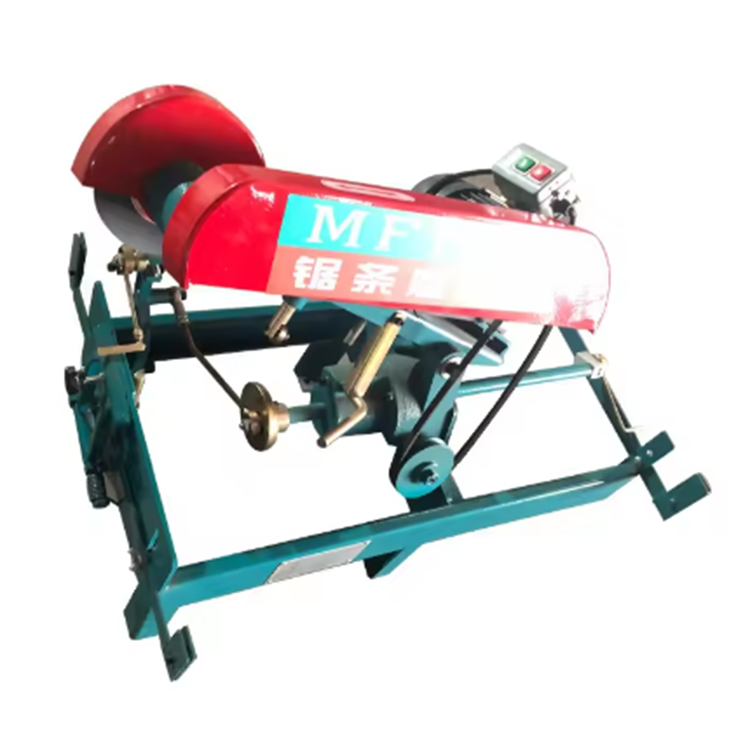

Product Description
Saw blade sharpener machine mainly use for resharpening the vertical / horizontal band saw blade, when using blade to cut wood
,the blade will get hot , so after working 1-2 hours, the worker need take off blade, use the saw blade grinder to sharpening
blade, so that the blade can cut wood faster and smoothly.
Model AD-MF1107 Constant speed/Speed regulation
Saw blade width 15-100mm
Saw blade circumference: 4500mm
Tooth pitch range: 8-25mm
Motor power: 0.37kw
Voltage: 380v
Grinding wheel speed: 4000r/min
Grinding wheel size: 150 * 32mm
Specification
|
item
|
value
|
|
Type
|
Universal
|
|
CNC or Not
|
Normal
|
|
Condition
|
New
|
|
Wheel Size(mm)
|
150*32
|
|
Place of Origin
|
China
|
|
|
Henan
|
|
Brand Name
|
AD
|
|
Voltage
|
380V
|
|
Dimension(L*W*H)
|
78*55*61
|
|
Weight (KG)
|
40
|
|
Power (kW)
|
0.37
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High Productivity
|
|
Showroom Location
|
None
|
|
Applicable Industries
|
Manufacturing Plant, Machinery Repair Shops
|
|
Marketing Type
|
Hot Product 2024
|
|
Machinery Test Report
|
Not Available
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Gear
|
|
Product name
|
Saw blade polishing machine
|
|
Key Selling Points
|
Easy to Operate
|
|
Applicable Industries
|
Farms, Manufacturing Plant, Home Use, Retail, Machinery Repair Shops
|
|
Core Components
|
Motor, Bearing
|
|
Wheel Size(mm)
|
150x32/25*2-10mm
|
|
Voltage
|
380
|
|
Dimension(L*W*H)
|
780*550*610mm
|
|
Grinding blade width
|
6-75mm
|
|
Grinding range between teeth
|
2-30mm
|
|
Grinding speed
|
0-63teeth/min
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
