b. Fuse
c. Power switch
d. Hat fix handle
e. Press handle
f. Pressure adjust knob
g. Heat plate
h. Teflon
i. Silicon bun
j. Bottom platen replacement handle
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V/220V
-
Place of Origin:
-
China
-
Brand Name:
-
MEM
-
Model Number:
-
T 13*9
-
Dimensions(L*W*H):
-
380x220x690 mm
-
Weight:
-
12 KG
-
Core Components:
-
Platen controller
-
Platen Size:
-
13*9 CM
-
Plate size:
-
13*9cm
-
power:
-
110V(220V)/600W
-
Usage:
-
Clothes/fabric
-
Time range:
-
0-999s
-
Model:
-
T-1515
-
Temperature range:
-
0-250℃(480℉)
-
Controller:
-
Digital Time & Temp. Controller
-
Working mode:
-
Manual
-
Pressure:
-
0-0.8Mpa(0-110psi)
-
Keywords:
-
Hat press machine
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
110V/220V
-
Place of Origin:
-
China
-
Brand Name:
-
MEM
-
Model Number:
-
T 13*9
-
Dimensions(L*W*H):
-
380x220x690 mm
-
Weight:
-
12 KG
-
Core Components:
-
Platen controller
-
Platen Size:
-
13*9 CM
-
Plate size:
-
13*9cm
-
power:
-
110V(220V)/600W
-
Usage:
-
Clothes/fabric
-
Time range:
-
0-999s
-
Model:
-
T-1515
-
Temperature range:
-
0-250℃(480℉)
-
Controller:
-
Digital Time & Temp. Controller
-
Working mode:
-
Manual
-
Pressure:
-
0-0.8Mpa(0-110psi)
-
Keywords:
-
Hat press machine
Technical Paramenters
Short overview MEM T-13*9 hat heat press
-Industrial grade design
-Pressure balancing system on heat plate
-CE certificated and RoHS certificated
-Lifetime factory on-line service
-Pressure balancing system on heat plate
-CE certificated and RoHS certificated
-Lifetime factory on-line service

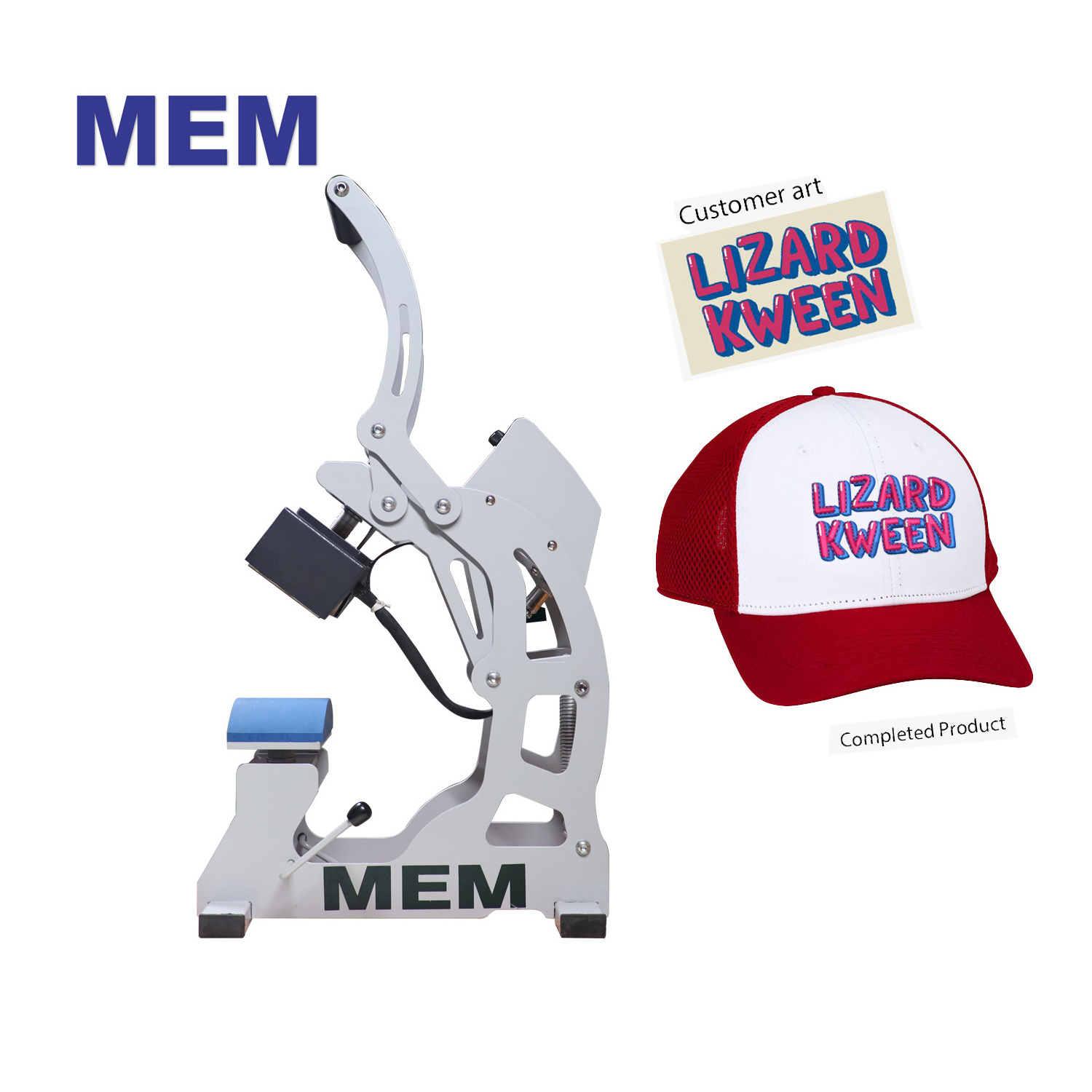

MEM T-13*9 manual hat heat press
a. Temperature controller
b. Fuse
c. Power switch
d. Hat fix handle
e. Press handle
f. Pressure adjust knob
g. Heat plate
h. Teflon
i. Silicon bun
j. Bottom platen replacement handle
b. Fuse
c. Power switch
d. Hat fix handle
e. Press handle
f. Pressure adjust knob
g. Heat plate
h. Teflon
i. Silicon bun
j. Bottom platen replacement handle
|
Model
|
T-13*9
|
|
Voltage and powder
|
220V(600W) or 110V(600W)
Check voltage at back side of the head
|
|
Time Range
|
0-999 sec.
|
|
Max. Temp.
|
260 C/ 500 F
|
|
Heat plate size
|
15x15 cm(6"x6")
|
|
Dimensions(L*W*H)
|
380x220x690mm(15"*9"*27")
|
|
Shipping dimensions(L*W*H)
|
540x260x540mm(21"*10"*21")
|
|
Shipping weight
|
17kgs(38lbs)
|
Products Description
MEM T-1515 manual heat press
This provides the operator with the best possible features and equipment needed for today's various heat transfer applications.
Using the MEM T-1515 heat press, all common heat transfer processes (flock, flex, transfer, Inkjet-flex etc.) can be conducted professionally and with highest productivity.
The desired settings can be set easily with the temperature controller. The pressure can be regulated smoothly with the pressure adjust knob
With the temperature controller, temperature (°C and °F) and pressing time can be adjusted. The Set Value are showing the setting value, the Temperature digits are showing the actual value. Counter (reset after power off) function that counts the number of transfers that have already been made during the current session could be enabled, contact MEM for counter function enable instruction.
On the side of the solenoid valve there are two silver/golden screws which restricting the air flow speed of the cylinder.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
Maintenance and cleaning
Maintenance work should always be accomplished with the press switched off and cooled down.
The plug must first be disconnected from the power socket.
The plug must first be disconnected from the power socket.
Consult Technical Support before carrying out any maintenance work.
Clean the press regularly with a soft cloth and mild household cleaner to remove adhesive residues etc.
Clean the press regularly with a soft cloth and mild household cleaner to remove adhesive residues etc.
Packing & Delivery
Standard export wooden case packing to make sure the machine safety during the transportation. Customer can be rest assured.
