High quality pet food twin screw extruder Fully automatic dog food production line with 2 ton/h

1. Brief Introduction :

Dry dog food making machine is used to produce different kinds of dog food,cat food,floating fish feed,sinking fish feed and so on. It works with simple operation, accurate parameter control, The products can be finished in the stipulated temperature, pressure, humidity and time.Owing to the reasonable design, special materials, the stability, repairs can be guaranteed and ensured. The various shape and taste must meet the different requirements of pet food. this line is with reasonable design and with high automation; the screws are made by alloy steel, with building blocksystem structure and self-cleaning function. Y ou just need to change different shapes of die in the outlet of extruder machine. Then you could get various shapes of pet dog food. The shape of pet dog food could be round shape, bone shape, star shape, triangle shape, heart shape and so on. And of course, we would offer you 4 dies freely with the extruder machine together.

2. Capacity: 100-500kg/h

3. Voltage in China:

Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.

4. Machines Materials:

All the machines are made by stainless steel .

5. Technical Parameter:

6. Flow chart:

Mixer --- Screw Conveyor --- Twin- screw extruder --- Air conveyor --- Dryer --- Flavoring line --- Cooling machine

7. S am ple s for your reference:

Dog food making machine adopts corn flour, wheat flour, low temperature soya

flakes meal, rice bran, wheat bran,fish meal and so on as raw materials.

Pet food processing line can be used to produce different kinds of dog food, cat food, floating fish feed, sinking fish feed and so on.

Mixer

Installed Power: 4kw

Consumption:3kw/h

Output: 30kg/batch-40kg/batch

Mixing Time:(2minutes-3minutes)/batch

Size: 1030*920*1350mm

Function: raw material with water, liquid chemical additive mix together fully.

Feature:

1.This part that contacts mixer to material adopts the stainless steel material.

2.The discharge hole adopts the new handle-opened design, good seal

3.Motor is Chinese famous brand

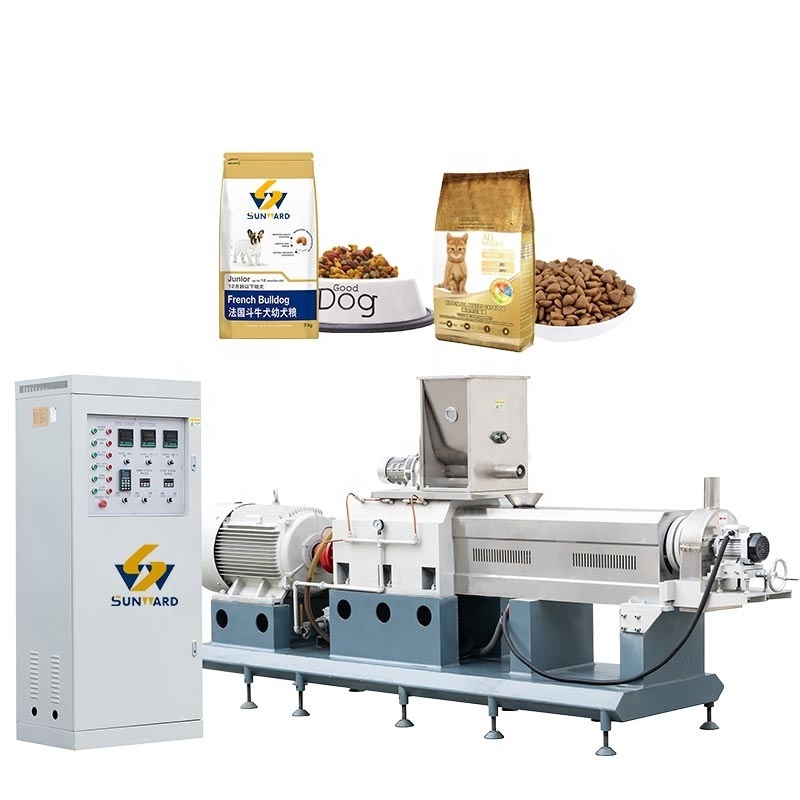

Twin-Screw extruder

Installed Power: 53kw

Consumption:37kw/h

Output: 200kg/h-250kg/h

Size: 2600*870*1950mm

Features:

1.The main extruder adopts frequency speed controlling with high automation and stable per-formation.

2.The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. Adopting the building block structure and combining willingly according to the different demand.

3.The forced lubrication system, can guarantee the equipment transmission life longer.

4.Auto-temperature control system makes the temperature control more direct viewing and the parameter more precise.

5.Self-cleaning , when stopping, it can be cleaned without disassembling.

Multi- layer electrical dryer

Installed Power 45 kw

Consumption: 30kw/h

Output: 200kg/h-300kg/h

Size: 5 2 00*1300*2 2 00mm

Function: Baking and drying the food. All kinds of the inflating food, pet food, TVP food, peanut, nut, chew nut can be dried.

Features :

1.The dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.

2. The belt and the heat preservation use the stainless steel; it is suitable for food industry.

3. The running speed of belt net can be controlled (frequency)

4.The temperature can be controlled willfully and designed according to the need.

5.Material touching the food is stainless steel, bracket is iron with paint. Motor is Chinese famous brand, Switch board operation.

Cooling machine

Installed Power: 1kw

Output:According to Extruder

Size:5000*700*1100mm

Feature:

1.This material that contacts food adopts the stainless steel material.

2.The air from the fan cooling the rice going through the conveyor belt.

3.Motor is Chinese famous brand

Double roller flavoring machine

Installed Power: 0.75 kw

Consumption Power: 0.5 kw/h

Dimension: 2350*870*1780mm

Function:it is used to seasoning products with flavoring powder and liquid.
