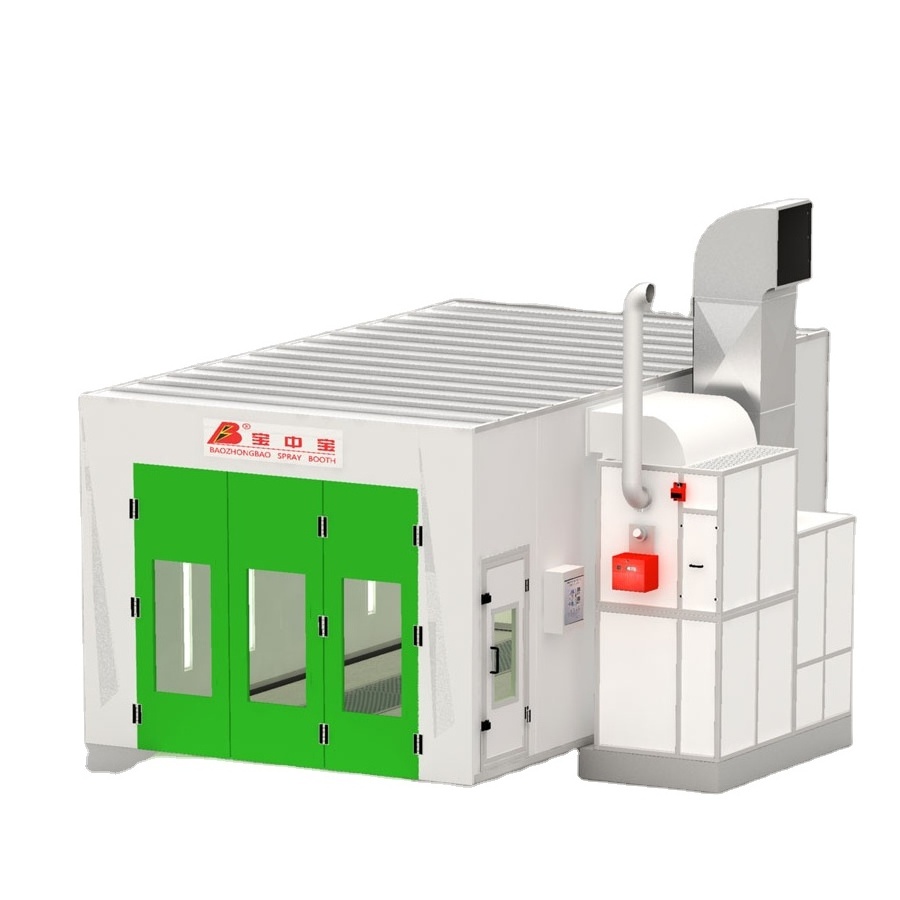

China good quality auto mini mobile customized car spray booth paint booth with CE

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

Free Inquiry

Customized Request

Quick Details

China good quality auto mini mobile customized car spray booth paint booth with CE

Dimensions:

Dimensions:	Length(mm)	Width(mm)	Height(mm)
Outer Size	7,000	5,560	3,400
Inside l Size	6,900	4,000	2,650
Entrance Door	Adopt with handle and lock	3,000	2,600
Working Door	Adopt with handle and Anti-Explosion	800	2,000
Total Power	17.5KW

Features:

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style,Compound Construction, Anti-flame and Heat-Insulation Galvanized Roof Panel


	Basement	Galvanized Steel Sheet and Square Steel Pipe assembling, Two Rows Grid & Three Embossed Plate

	Ramp	Two Ramps, Embossed Steel Plates.
Air Intake and Exhaust System	Inhaling Ventilator	Model: YDW 4.5L1	Exhaust Ventilator	Model: YDW 5.6S
		Blower capacity: 12500m ³ /h		Blower capacity:20000m ³ /h
		Pressure: 800Pa		Pressure: 810Pa
		Rolling speed: 900rpm		Rolling speed: 900rpm
		Power: 4kw		Power: 7.5kw
		Quantity: 2 sets		Quantity: 1set
	Air Volume: 24000m ³ /h; Air Speed: 0.35m/s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%.


Heating System	Burner	Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 10N Damp Motor
	Heat Energy Converter	Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%
	Max Temp:80 ^. C, Heating Time:5-7min(20-60), Fuel Consumption: 4-5kg/vehicle
Light System	Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux
