Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings
Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings
Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings
Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings
Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings
Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings
Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings
Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings

Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings

FOB Reference Price: Get Latest Price
≥2 Pieces
US $400
≥50 Pieces
US $350
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Lifespan (hours):
100.000
Product Weight（kg）:
4.1
Input Voltage(V):
DC 3.7V
Beam Angle(°):
360° horizontal beam angle
Place of Origin:
Hunan, China
Brand Name:
CK
Products name:
Building flash light
Beam angle:
360° horizontal, > 3° vertical
Flashing Frequency:
20-40 times/min
Light Intensity:
1500cd( 25%)
Overall size:
284mmx240mmx242mm
Installation size:
126mmx4-M10
Lightning protection leve:
10KA
Optical Sensitivity:
100Lux
Operating temperature:
-40℃~55℃

Quick Details

Warranty(Year):
3-Year
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Lifespan (hours):
100.000
Product Weight（kg）:
4.1
Input Voltage(V):
DC 3.7V
Beam Angle(°):
360° horizontal beam angle
Place of Origin:
Hunan, China
Brand Name:
CK
Products name:
Building flash light
Beam angle:
360° horizontal, > 3° vertical
Flashing Frequency:
20-40 times/min
Light Intensity:
1500cd( 25%)
Overall size:
284mmx240mmx242mm
Installation size:
126mmx4-M10
Lightning protection leve:
10KA
Optical Sensitivity:
100Lux
Operating temperature:
-40℃~55℃
Contact Us
Ms. Sophia Guo | Sales Engineer
Hunan Chendong Technology Co.，Ltd
T:+86-0731-85563165 85563265
Fax: +86-0731-85563365
Phone/WhatsApp: +86-13929493960
Skype:sophia.guo88
A:No.101,#4 Building, XinCheng Science and Technology Park, West of Yuelu Ave., Hi-Tech Development Zone,Changsha city, Hunanprovince, China.
W: http://www.cdt-en.com/
E: sophia@chendongtech.com
Product Description

Building flash light solar powered led red synchronize gps aviation solar aircraft light l-864 red light above the buildings

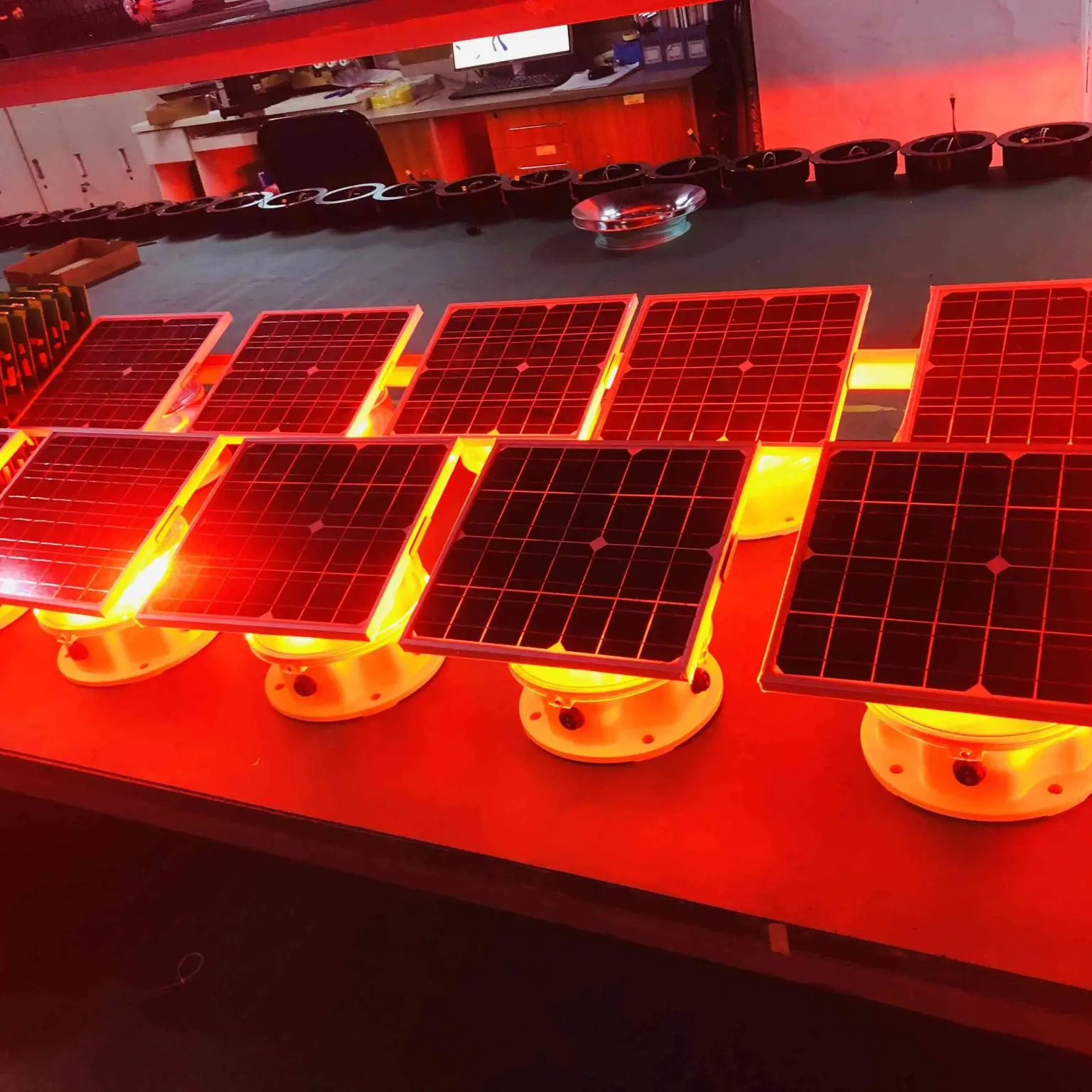

Medium Intensity Solar Warning Lights (MIOL) with solar panel, multi LED type. In compliance with ICAO Annex 14 Type B, Type C and FAA L-864. This flashing red LED beacon obstruction light is the perfect solution for wind turbines, towers (cell/broadcast/other),buildings, and similar obstructions. Meets FAA and ICAO standards. Available with IR option for night vision. Easily retrofits to replace incandescent light.
Medium Intensity Obstruction Lights with Solar Panel have to be used where the obstacle is particularly large and the height of the surrounding soil is more than 45m and where the power supply does not arrive or where it is very weak.
OPTIONS
* Twin version: two galvanically separated circuits in the same fixture
* Infrared version: IR wavelength 850nM
* GPS sync
Item
Parameter
Name
Building flash light
Model
CK-15-TZ
Operating Voltage
DC3.7V
Power consumption
≤2W
Flashing frequency
20-60 times/min
Light intensity
1500cd
Life span
＞100,000 hours
Emitting color
Red
Beam angle
360° horizontal,>3° vertical
Overall size
284mmx240mmx242mm
Installation size
Φ126-4*M10
Ingress protection
IP66
Lightning protection level
10KA
Light controlled sensitivity
100Lux
Operating temperature
-40℃～55℃
Net weight
4.1KG
Wind load
80m/sec.
Solar Panel Size
284x260x15mm
Solar Power Voltage
7V
Solar Power Consumption
12W per pcs
Lead Acid Battery
3.7V 36AH
Using Rainy / Cloudy Day
3-5 days
Specification

1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission
up to 90%, quite high impact resistance and fit the bad environment very well.
2. The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum
alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
3. Special battery for solar energy, free maintenance and high reliability, lifetime more than 3
years.
4. Based on the single chip computer micro power control, could control the charge and
discharge precisely.
5. Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%),
lifetime more than 20 years.
6. Using Fresnel lens optical design, range further.
7. Further use reflector optical design, visual distance, angle more accurately, thoroughly
eliminate the light pollution.
8. Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and
high efficiency.
9. Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control
light intensity level.
10. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5
times, Imax 15KA so that the light is suitable to harsh environment.
11. Integral structure, protection lever of Ip65.
12. Synchronizing GPS function is available.
