Quick Details
-
Dimension(L*W*H):
-
2120*1320*1810mm
-
Weight:
-
550kg
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Name:
-
Wood sawdust machine
-
Power:
-
37-45KW
-
Capacity:
-
1500-2500kg/hr
-
Feeding hole size:
-
220*190mm
-
Sieve and effects size:
-
Customized
-
Main shaft speed:
-
2300r/min
-
Power type:
-
Electric motor, Diesel engine
-
Application:
-
bio-fertilizer,fuel
-
Service:
-
OEM ODM
-
Delivery:
-
2-15days
-
Certification:
-
ISO9001
Quick Details
-
Use:
-
Chips and Sawdust
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WEIWEI
-
Dimension(L*W*H):
-
2120*1320*1810mm
-
Weight:
-
550kg
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Name:
-
Wood sawdust machine
-
Power:
-
37-45KW
-
Capacity:
-
1500-2500kg/hr
-
Feeding hole size:
-
220*190mm
-
Sieve and effects size:
-
Customized
-
Main shaft speed:
-
2300r/min
-
Power type:
-
Electric motor, Diesel engine
-
Application:
-
bio-fertilizer,fuel
-
Service:
-
OEM ODM
-
Delivery:
-
2-15days
-
Certification:
-
ISO9001

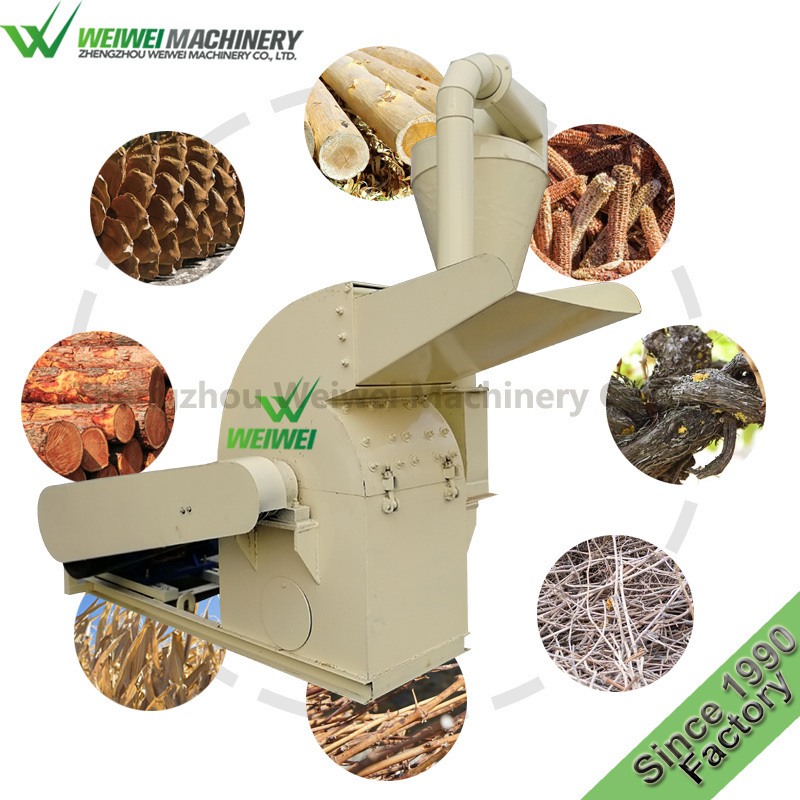

WEIWEI MACHINERY forestry tractors for sale tractor
We are a factory with more than 30 years of experience in agricultural and wood working machine manufacturing, Survival and Development by quality and honesty ,please tell me your needs. We will provide or customize the most suitable products for you, and ensure it ’ s good quality and low price.
Product introduction
The machine is made of thickened steel .
and the cutter head of the machine is debugged through dynamic balance to ensure stable operation and long service life.
Machine size: 2120 * 1320 * 1810mm
Double feed port
Log feed size: 220m * 190mm
|
Application |
Making sawdust |
|
550kg |
|
|
Main shaft speed |
2300r/min |
|
Power |
37-45KW |
|
Blade ( moving blades ) |
4 pieces |
|
Capacity |
1.5-2.5T/HR |
|
Feeding inlet size( Diameter of raw material ) |
220*190mm |
|
Sieve size |
Can be customized |
|
Power equipment |
Electric motor , diesel engine , trailer mounted |
This multifunction grinder combines the advantages of hammer wood grinder and blade disc wood grinder .
The material not only to crush logs, but also to crush raw materials .
S uch as scrap, branches, bark, leaves, etc. Roots, branches, bark, peanut shells, corncob, corn stalks, peanut flesh, melon flesh, straw, wheat straw and other materials
and logs are crushed into sawdust or chips,
According to the different size of screen mesh, the machine can cutting and grinding different effect.
The sawdust machine Output: 1.5 to 2 .5 T / hr
Widely apply for paper mills, power plants, edible fungi raw materials processing, Mechanism charcoal raw materials processing, wood-based panels, chemical raw materials, landscaping, biological organic fertilizer, aquaculture and other small and medium enterprises and personal garden use.
The cutting blade adopts high quality alloy cutting tools.
The cutters are hard, wear resistant, cutting sharp, difficult to rust, corrosion resistant, and the service life is longer than the general steel cutting tools, the output of wood crusher is larger .
Cleading
The cleading is added to the working room, increasing the crushing efficiency of the wood and increasing the output
Hammer
Hammer by carbon steel can be made of wood for multiple impact crushing
The main part of the machine
The main part of the machine is through the dynamic balancing equipmentso that the machine can run smoothly,reduce noise, improve production efficiency, prolong the service cycle, low cost, high yield, is the mature technology of wood processing machinery
Cutter head
The cutter is composed of thick steel plate and changed the original fragile, increase the service life of the machine, fan design is enhanced in the machine running speed of wood, wood from the machine speed and easy to sieve out the whole cutter head, smooth operation, play a role in the two pieces
Double feeding port
This machine can be customized double inlet, with more extensive scope of application, rectangular inlet is suitable for cutting wood, bamboo and other wood materials, the wide inlet suitable for cutting scrap, straw . the user is more sensible choice.
W orking principle of machine
The blade cutting and high speed airflow impact crushing, collision of double functions, and can simultaneously complete micro material sorting process. In the blade cutting and grinding process, the rotor generates a high speed airflow, with the blade cutting direction of rotation, the material in the air flow speed, and make the material and under repeated impact crushing, accelerated material crushing rate .
The structure of machine
This machine consists of log feed port , branch feed port , fixed knife, bearing, upper shell, wear-resistant liner, double buckle lock , thickening cutter head , alloy moving blade, carbon steel hammer, fan blade, screen mesh, air intake port , fan device, Upper outlet, safety shield, motor mounting frame, motor wheel .
It can also be added into pulled by tractors type, rubber wheel, traction frame, electric motor , diesel motor and so on.
Our company is a professional manufacturer with 30 years experience in agricultural machinery manufacturing .factory was established in 1980, plant area of more than 10 thousand square meters, more than 200 staff and more than 20 technical personnel to ensure product quality and delivery.
Our company is nation-appointed professional agricultural machinery manufacturer by Department of Agriculture . our main products have three categories : agricultural processing machinery, woodworking machinery, animal feed processing machinery , including corn thresher rice and wheat, rice mill, grain mill, wood shaving machine, wood chip machine, sawdust machine, biomass pellet machine ,hay cutter,feed mixer, feed mill, feed particle machine and other kinds of machinery.
Our factory is located in Xingyang, Zhengzhou city Henan province . located in plain agricultural province with large population, our company has richly endowed by nature in price : quality first, reputation first, customer first for the purpose of service, with high quality, factory direct price, Quickly won the market and customers, good customer feedback, we are the major domestic and foreign distributors long-term trusted manufacturers.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
