- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nkun
-
Voltage:
-
Customized, 380V/Customized
-
Dimension(L*W*H):
-
1570mm*1140mm*2650mm
-
Weight (T):
-
12 T
-
Motor Power (kw):
-
22 kw
-
Name:
-
Salt lick block machine
-
Brand:
-
Nkun
-
Color:
-
Required
-
Productivity(ton/h):
-
1-1.5
-
Salt brick weight (kg):
-
3-25
-
Advantage:
-
High Efficiceny
-
Machine Test Report:
-
Provided
-
Power Source:
-
Salt Hydraulic Press Machine
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Return Force (kN):
-
50 kN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nkun
-
Voltage:
-
Customized, 380V/Customized
-
Dimension(L*W*H):
-
1570mm*1140mm*2650mm
-
Weight (T):
-
12 T
-
Motor Power (kw):
-
22 kw
-
Name:
-
Salt lick block machine
-
Brand:
-
Nkun
-
Color:
-
Required
-
Productivity(ton/h):
-
1-1.5
-
Salt brick weight (kg):
-
3-25
-
Advantage:
-
High Efficiceny
-
Machine Test Report:
-
Provided
-
Power Source:
-
Salt Hydraulic Press Machine
Products Description
hydraulic press machine metal stamping machine for licking salt block making

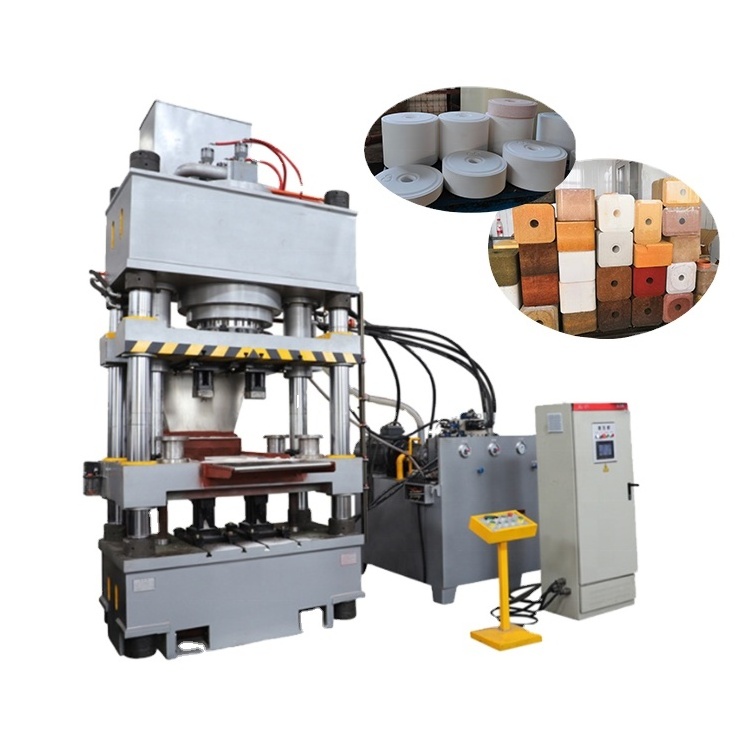

Salt lick block machine mainly consists of the three parts: main frame, hydraulic pressure station and the electrical control box. This kind of machinery can change moulds to achieve the production of different shapes and weights, reducing investment costs. The main machine is compact and covers a small area for easy production and transportation. The effect of salt bricks which producted by the machine is mainly to supplement the nutritional needs of cattle and sheep for growth, to improve the resistance of livestock such as cattle and sheep and to promote their fertility. Great for animal husbandry.
①Mainframe:
Composed of main hydraulic cylinder, material pushing hydraulic cylinder, bottom plate hydraulic
cylinder, matching mould frame and mould, pressure head and soon.
②Hydraulic pressure station:
Composed of motor, hydraulic pump, pump protection device, control valve, pipe system
that used to connect block machine
③Control box：
Composed of electrical system and plc control.
Product Parameter
|
Item
|
|
|
Unit
|
NK315
|
NK400
|
NK500
|
NK630
|
NK720
|
||
|
Nominal pressure rating
|
|
|
kN
|
3150
|
4000
|
5000
|
6300
|
7200
|
||
|
Max liquid working pressure
|
|
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
||
|
Max distance from sliding block flatto work bench
|
|
|
mm
|
1150
|
1200
|
1200
|
1370
|
1200
|
||
|
Sliding block pressing
|
Pressing force
|
|
kN
|
3150
|
4000
|
5000
|
6300
|
7200
|
||
|
|
Knock out force
|
|
kN
|
55
|
55
|
55
|
140
|
115
|
||
|
Stroke parameters
|
Stroke
|
|
mm
|
400
|
500
|
500
|
600
|
500
|
||
|
|
Fast speed
|
|
mm/s
|
120
|
120
|
120
|
110
|
110
|
||
|
|
Slow speed
|
|
mm/s
|
15
|
15
|
15
|
15
|
15
|
||
|
|
Floating press speed
|
|
mm/s
|
8
|
8
|
8
|
8
|
8
|
||
|
|
Back stroke speed
|
|
mm/s
|
80
|
80
|
80
|
70
|
80
|
||
|
Knock-out piston running parameter(Optional)
|
Knock-out force
|
|
kN
|
950
|
1150
|
1150
|
1360
|
1560
|
||
|
|
Pull down force
|
|
kN
|
300
|
300
|
300
|
500
|
600
|
||
|
|
Stroke
|
|
mm
|
250
|
300
|
300
|
300
|
300
|
||
|
|
Knock out speed
|
|
mm/s
|
90
|
90
|
90
|
90
|
90
|
||
|
|
Floating downward
|
|
mm/s
|
8
|
8
|
8
|
8
|
8
|
||
|
|
Return speed
|
|
mm/s
|
70
|
70
|
70
|
70
|
70
|
||
|
Bottom center oil cylinder piston parameters
|
Put out force
|
|
kN
|
80
|
80
|
80
|
80
|
80
|
||
|
|
Retern force
|
|
kN
|
50
|
50
|
50
|
50
|
50
|
||
|
|
Stroke
|
|
mm
|
250
|
300
|
300
|
300
|
300
|
||
|
Effective working area of workbench
|
|
|
mm
|
685x800
|
845x1000
|
845x1000
|
860x1100
|
900x1100
|
||
|
Motor total power
|
|
|
kw
|
22
|
30
|
30
|
37
|
45
|
||
|
Block weight
|
|
|
Kg
|
2-4
|
5-7
|
5-10
|
5-15
|
10-20
|
||
