Quick Details
-
Ejector Number:
-
12+1
-
Ejector Stroke(mm):
-
150 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
1003 cm³
-
Injection Rate (g/s):
-
278.68 g/s
-
Injection Weight (g):
-
913 g
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
610x585 mm
-
Weight (KG):
-
10000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
590 mm
-
Model Number:
-
U300TS
-
Brand Name:
-
SONLY
-
Power (kW):
-
37 kW
-
BOUNDARY DIMENSION(L*W*H):
-
6.86*1.65*2.46 m
-
After-sales Service Provided 1:
-
Field installation, commissioning and training
-
After-sales Service Provided 2:
-
Field maintenance and repair service
-
After Warranty Service 1:
-
Video technical support;Online support;Spare parts
-
After Warranty Service 2:
-
Field maintenance and repair service
-
Local Service Location 1:
-
Egypt;Turkey;Peru;Indonesia;Mexico
-
Local Service Location 2:
-
Russia;Argentina;South Korea
-
Local Service Location 3:
-
Colombia;Algeria;Bangladesh;South Africa
-
Clamping Force (kN):
-
3000
-
Certification:
-
CE, ISO9001
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
610mm
-
Distance between Tie Bars(Height)(mm):
-
585mm
-
Mold Height(mm):
-
200 - 640 mm
-
Ejector Number:
-
12+1
-
Ejector Stroke(mm):
-
150 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
1003 cm³
-
Injection Rate (g/s):
-
278.68 g/s
-
Injection Weight (g):
-
913 g
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
610x585 mm
-
Weight (KG):
-
10000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
590 mm
-
Model Number:
-
U300TS
-
Brand Name:
-
SONLY
-
Power (kW):
-
37 kW
-
BOUNDARY DIMENSION(L*W*H):
-
6.86*1.65*2.46 m
-
After-sales Service Provided 1:
-
Field installation, commissioning and training
-
After-sales Service Provided 2:
-
Field maintenance and repair service
-
After Warranty Service 1:
-
Video technical support;Online support;Spare parts
-
After Warranty Service 2:
-
Field maintenance and repair service
-
Local Service Location 1:
-
Egypt;Turkey;Peru;Indonesia;Mexico
-
Local Service Location 2:
-
Russia;Argentina;South Korea
-
Local Service Location 3:
-
Colombia;Algeria;Bangladesh;South Africa
-
Clamping Force (kN):
-
3000
-
Certification:
-
CE, ISO9001
Products Description
|
U300TS
|
Unit
|
A
|
B
|
C
|
||||
|
INJECTION UNIT
|
|
|
|
|
||||
|
SCREW DIAMETER
|
mm
|
55
|
60
|
65
|
||||
|
SCREW L/D RATIO
|
L/D
|
24
|
22
|
20.5
|
||||
|
SHOT VOLUME(THEORETICAL)
|
cm3
|
842.8
|
1003
|
1177.1
|
||||
|
INJECTION PRESSURE
|
Mpa
|
199.8
|
167.9
|
143.1
|
||||
|
SCREW SPEED
|
rpm
|
189
|
|
|
||||
|
SHOT WEIGHT(THEORETICAL)(PS)
|
g
|
767
|
913
|
1071
|
||||
|
SHOT WEIGHT(THEORETICAL)(PS)
|
oz
|
27.055
|
32.205
|
37.778
|
||||
|
CLAMPING UNIT
|
|
|
|
|
||||
|
CLAMPING FORCE
|
Kn
|
3000
|
|
|
||||
|
OPEN STROKE
|
mm
|
590
|
|
|
||||
|
SPACE BETWEEN TIE BARS(W*H)
|
mm
|
610*585
|
|
|
||||
|
MAX.MOULD HEIGHT
|
mm
|
640
|
|
|
||||
|
MIN.MOULD HEIGHT
|
mm
|
200
|
|
|
||||
|
EJECTOR STROKE
|
mm
|
150
|
|
|
||||
|
EJECTOR FORCE
|
Kn
|
70
|
|
|
||||
|
EJECTOR NUMBER
|
|
12+1
|
|
|
||||
|
DIE HOLE DIAMETER
|
mm
|
160
|
|
|
||||
|
OTHERS
|
|
|
|
|
||||
|
SYSTERM PRESSURE
|
Mpa
|
16
|
|
|
||||
|
MOTOR POWER
|
Kw
|
30
|
|
|
||||
|
HEATING POWER
|
Kw
|
21.5
|
|
|
||||
|
OIL TANK CUBAGE
|
L
|
400
|
|
|
||||
|
MACHINE WEIGHT
|
Ton
|
10
|
|
|
||||
|

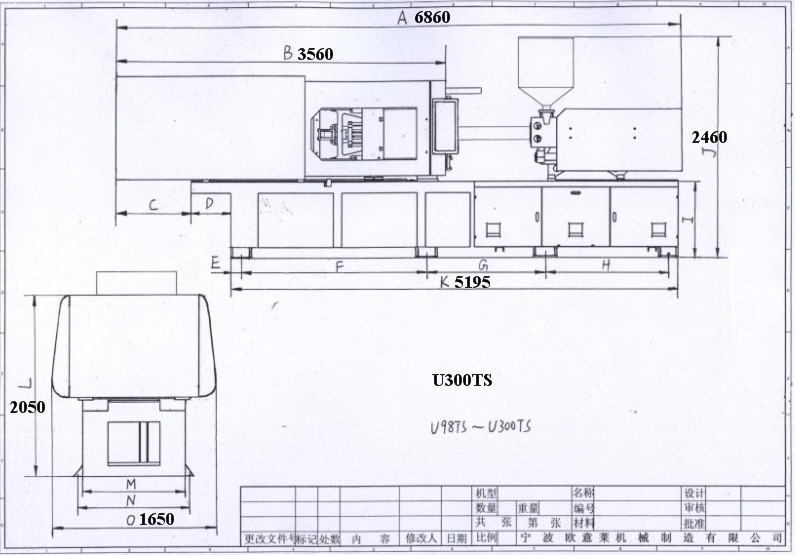

BOUNDARY DIMENSION(L*W*H)
|
m
|
6.86*1.65*2.46
|
|
|
||||
|
SERVO DRIVER CAPACITY
|
Kw
|
45
|
|
|
||||
Details Images
Product Advantages
Sonly injection molding machine
has a large diameter ratio, faster plasticization speed, short drying cycle, and ultra-high plasticizer capacity provide guarantee for the high efficiency of the whole machine.
1. New conjoined hyperbolic elboe five fulcrum clamping mechanism, after a detailed calculation, manual and software running curve is more stable, smooth process is faster, and longer service life
2. New conjoined template through finite element analysis software, reasonable structure, convenient maintenance, good rigidity, high strength, small deformation
3. Electronic scale attached to cross, speed control is more agile, is conducive to protect the mould
4. Lubrication automatic detection alarm function, can effectively guarantee the lubrication of all nodes in place
5. Compared with the same, we have a bigger bar spacing, molar volume and open mold, processing more plastic products, the high cost performance of the machine
