Quick Details
-
Brand Name:
-
Tianke
-
Model Number:
-
TK-BXW2550
-
Weight (KG):
-
1700
-
Power (kW):
-
1.5
-
Product name:
-
Fiberglass Mesh Machine
-
Raw material:
-
Fiberglass yarn
-
Width:
-
1000mm, 1300mm, 2550mm
-
Hole size:
-
4x4 5x5 6x6
-
Production capacity:
-
30-140㎡/h
-
Application:
-
Building materials, wall insulation
-
After-sales Service Provided:
-
Video guidance, on-site installation and training
-
Voltage:
-
3 phase 380V/220V/415V/440V
-
Wire feeding way:
-
In coils
-
Mesh Type:
-
In rolls
Quick Details
-
Wire Diameter (mm):
-
0.8 - 1.2 mm
-
Production Capacity:
-
110-120㎡/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Tianke
-
Model Number:
-
TK-BXW2550
-
Weight (KG):
-
1700
-
Power (kW):
-
1.5
-
Product name:
-
Fiberglass Mesh Machine
-
Raw material:
-
Fiberglass yarn
-
Width:
-
1000mm, 1300mm, 2550mm
-
Hole size:
-
4x4 5x5 6x6
-
Production capacity:
-
30-140㎡/h
-
Application:
-
Building materials, wall insulation
-
After-sales Service Provided:
-
Video guidance, on-site installation and training
-
Voltage:
-
3 phase 380V/220V/415V/440V
-
Wire feeding way:
-
In coils
-
Mesh Type:
-
In rolls
Product Description
The whole production line consists of three parts: Warping machine; Weaving machine; Glued and Coating part.
Wraping Machine
Warping machine is necessary part in the whole fiberglass mesh production line.Our machine is the latest upgraded.We use paralell constant tension winding,its function is low center of gravity, no jumping shaft,no yarn skipping.So as to achieve the goal of no wave uniform winding.The machine is equipped with infrared self stop device,automatic
alarm in case of error.
alarm in case of error.
|
Model
|
Speed
|
Beam length
|
Power
|
Weight
|
Dimension
|
|
TK-400
|
60-90RPM
|
1370mm
|
4kw
|
750kg
|
2500x1700x1200mm
|
|
TK-800
|
60-90RPM
|
2920mm
|
7.5kw
|
1000kg
|
3800x1700x1200mm
|

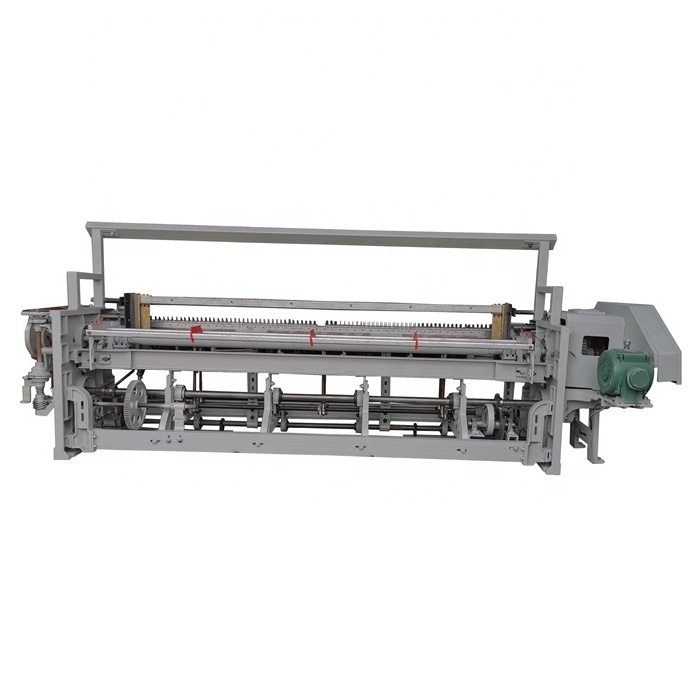

Weaving Machine
The advance of our weaving machine:Linear structure, simple operation, and convenient installation. Convenient maintenance and upkeep of machines
|
Model
|
Motor
|
Capacity
|
Mesh Width
|
Mesh size
|
Dimension
|
|
TK-W1000
|
0.8kw
|
30-80㎡/h
|
1000mm
|
3*3mm-10*10mm
|
2500*1600*1500mm
|
|
TK-W1300
|
0.8kw
|
30-80㎡/h
|
1300mm
|
3*3mm-10*10mm
|
2800*1600*1500mm
|
|
TK-W2550
|
1.5kw
|
60-140㎡/h
|
2400mm
|
3*3mm-10*10mm
|
4200*1800*1500mm
|
Coating Machine
This coating machine is divided into natural gas heating and electric heating.Customers choose the appropriate heating method based on their actual situation.
This machine is suitable for processing fiberglass mesh with a width of less than or equal to 2m, allowing the entire process of gluing, drying, and winding the fiberglass mesh to be completed in one go. After forming, the mesh hole adhesive is evenly applied with an appropriate amount, without displacement, and the rewinding is very smooth.
This machine is suitable for processing fiberglass mesh with a width of less than or equal to 2m, allowing the entire process of gluing, drying, and winding the fiberglass mesh to be completed in one go. After forming, the mesh hole adhesive is evenly applied with an appropriate amount, without displacement, and the rewinding is very smooth.
|
Model
|
Heat method
|
Capacity
|
Preheating
|
Mesh width
|
Power
|
Dimension
|
|
TK-E1000
|
Electric
|
600-900
|
15 times
|
1000mm
|
48kw
|
6000x2000x3800mm
|
|
TK-E1000
|
Electric
|
1600-2500
|
20 times
|
1000mm
|
95kw
|
12000x2000x12000mm
|
|
TK-G1000
|
Gas
|
1600-2500
|
30 times
|
1000mm
|
15kw
|
12000x2000x12000mm
|
Machine Details
Packing & Shipping
Why Choose Us
1. In stock,small MOQ,fast delivery.
2. Sales team is professional and enthusiastic.
3. Strong after-sales team,professinal technical support and perfect after-sales service.
4. Customizing machines on demand is our feature.
5. Complete product range,one-stop procurement,saving time.
6. Company own factory for better quality control.
3. Strong after-sales team,professinal technical support and perfect after-sales service.
4. Customizing machines on demand is our feature.
5. Complete product range,one-stop procurement,saving time.
6. Company own factory for better quality control.
About us
We,Tianke Machine is a factory integrating production and sales. We have more than 10 years experience in wire and wire mesh machines.And we can customized machines according to the product you want to make.Welded wire mesh machines is already one kind of traditional machine.These years we have designed and developed new machines such as CNC high speed wire straightening and cutting machine,CNC mesh slitting and cutting machine,hexagonal mesh machine, Wire galvanized line,etc.
Our company have adheres to the beliefof "Quality first,Sincerity win future", and has been recognized by customers at home and abroad.
Exhibition
Related Machines
FAQ
Q: Are you a factory or a trading company?
A: Our company is a factory integrating production and sales.We can provide high quality machines and competitive prices and services.
Q: Where is your factory located?
A: Our factory is located in Anping county,Hebei province,the famous "Hometown of wire mesh".
Q: What is the minimum order quantity of the machine?
Q: What is the minimum order quantity of the machine?
A: For the machines we produce,one set can be ordered and shipped.
Q: How many years has your factory engaged in wire mesh machines?
Q: How many years has your factory engaged in wire mesh machines?
A: We have more than ten years of rich experience in wire meshmachines and wire machines production industry.
Q: How long is the guarantee time for your machines?
Q: How long is the guarantee time for your machines?
A: The machines are guaranteed for 18 months since the machines are installed in your factory.
