Quick Details
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
7
-
Exterior size:
-
5800(one plate)/8800(double plate)*1500*1400mm
-
Weight:
-
About 2/2.5T
-
Top temperature:
-
180°C
-
Maximum height of the work piece:
-
50mm
-
Working table size:
-
2550mm*1150(1300) mm
-
Max.working height:
-
50mm
-
Rating working pressure:
-
Nagative press ≥-0.095Mpa
-
General Power:
-
21-26kw
-
Actual power consumption:
-
about 7-10kw
-
Packing size:
-
3400*2000*1900mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZICAR
-
Machine Type:
-

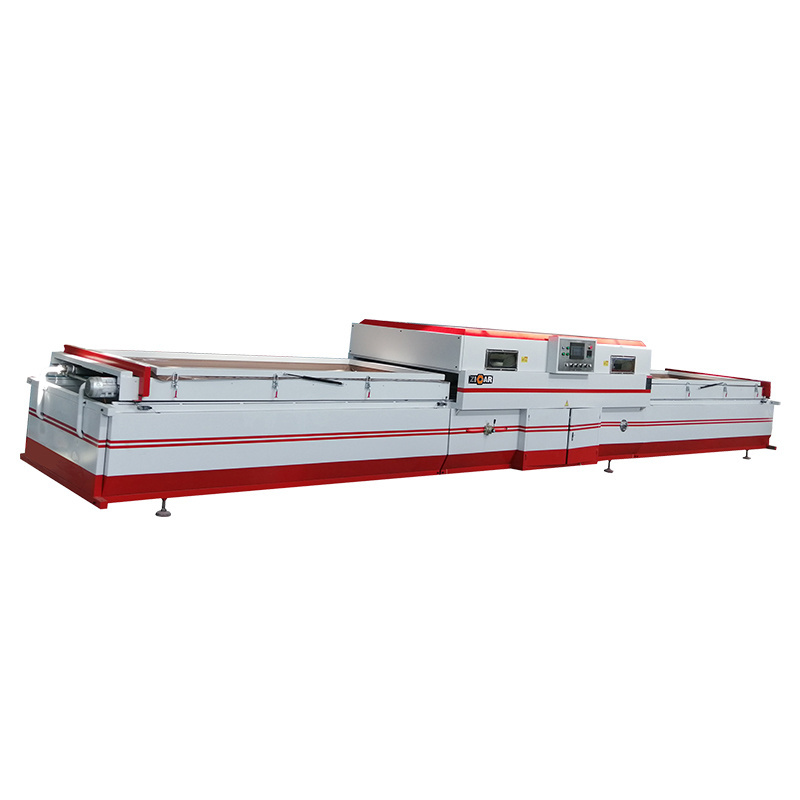

vacuum membrane press machine
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
7
-
Exterior size:
-
5800(one plate)/8800(double plate)*1500*1400mm
-
Weight:
-
About 2/2.5T
-
Top temperature:
-
180°C
-
Maximum height of the work piece:
-
50mm
-
Working table size:
-
2550mm*1150(1300) mm
-
Max.working height:
-
50mm
-
Rating working pressure:
-
Nagative press ≥-0.095Mpa
-
General Power:
-
21-26kw
-
Actual power consumption:
-
about 7-10kw
-
Packing size:
-
3400*2000*1900mm
|
Model
|
TM2480B
|
|
Exterior size
|
5800/8800mm×1500 mm×1400mm
|
|
Working table size
|
2550mm×1150(1300) mm
|
|
Max.working height
|
50mm
|
|
Rating working pressure
|
Nagative press ≥-0.095Mpa
|
|
General Power
|
21-26kw
|
|
Actual power consumption
|
about 7-10kw
|
|
Weight
|
about 2-2.5 T
|
|
Packing size
|
3400x2000x1900mm
|
